Product Main Technical Parameters

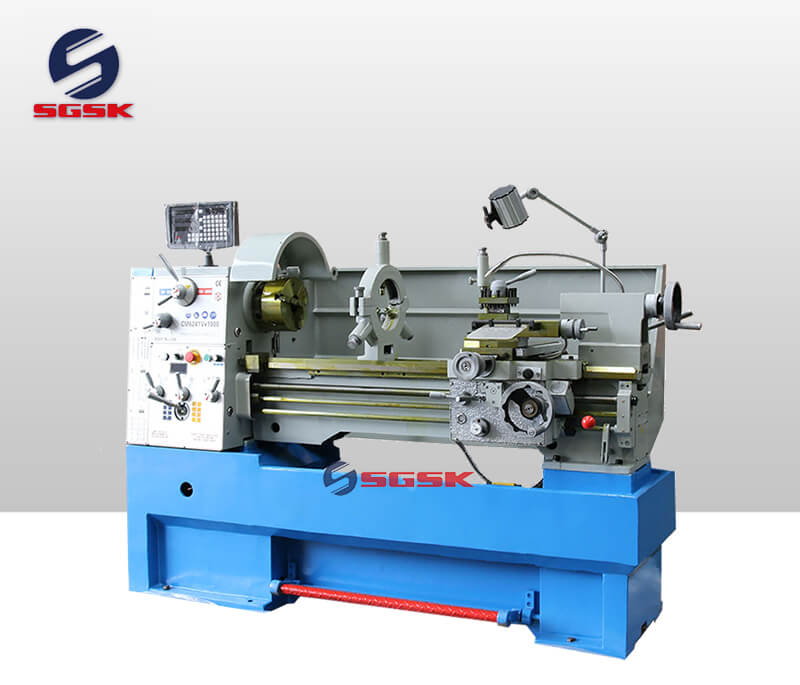

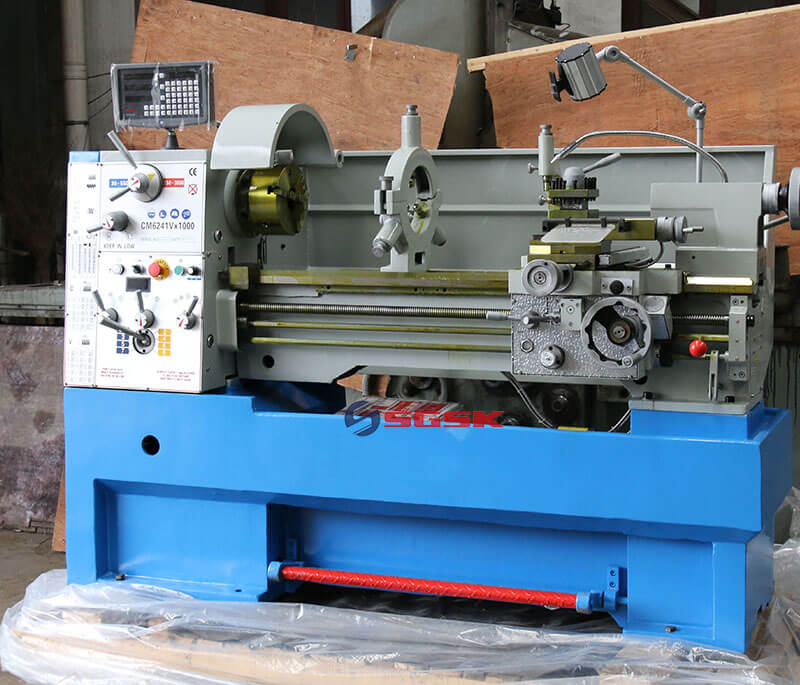

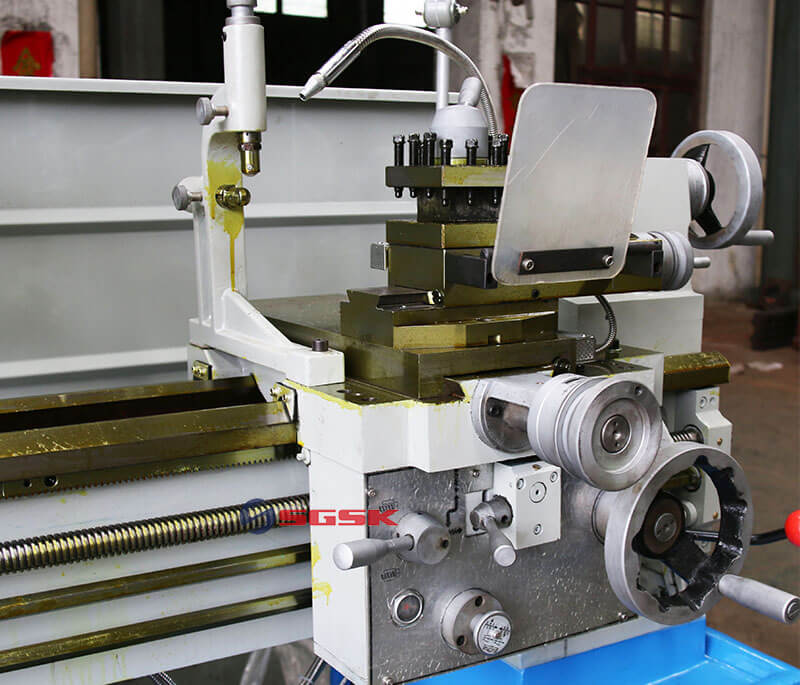

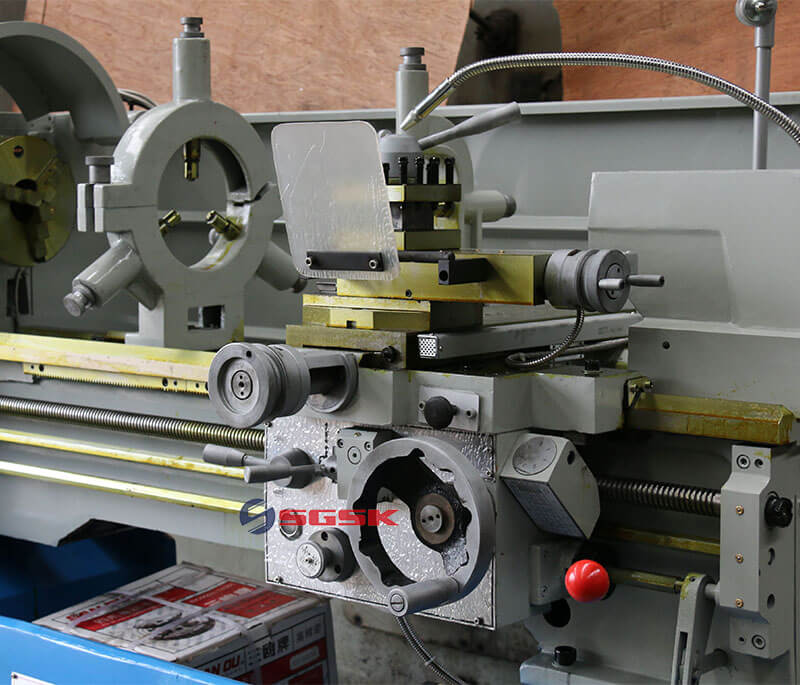

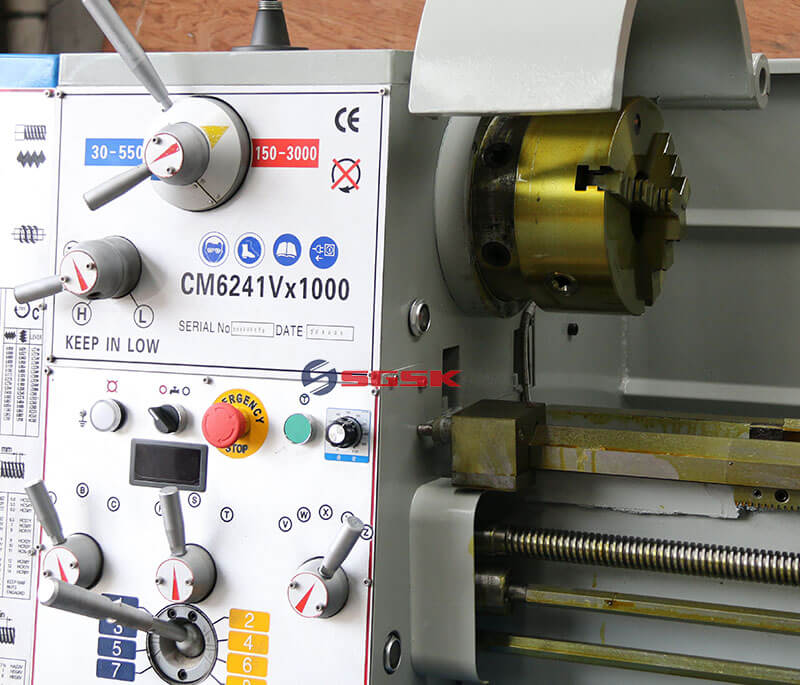

Horizontal Lathe Machine Features :
Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Horizontal Lathe Machine Main Technical Specifications:
SPECIFICATION | CM6241 | CM6241V |
Swing over bed | 410mm(16") | |
Swing over cross slide | 255mm(10") | |
Swing in gap | 580(23") | |
Length of gap | 250(10") | |
Distance between centers | 1000mm(40") /1500mm(60’’) | |
Center height | 205(10’’) | |
Width of bed | 250(10") | |
Spindle nose | D1-6 | |
Spindle bore | 52mm(2") | |
Taper of spindle bore | No.6Morse | |
Range of spindle speed | 16 changes 45-1800r/min | 30-550r/min or 550-3000r/min |
Max.travel of compound rest | 140mm(5-1/2") | |
Max.travel of cross slide | 210mm(8-1/4") | |
Leadscrew pitch | 4T.P.I. | |
Max.Section of tool | 20×20mm(13/16") | |
Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) | |
Cross oeeds range | 0.025-0.85mm(0.001"-0.0335"/rev) | |
Metric threads range | 39kinds 0.2-14mm | |
Inch threads range | 45kinds 2-72T.P.I | |
Diametrical pitchesrange | 21kinds 44D.P. | |
Module pitches range | 18kinds 0.3-3.5M.P. | |
Dia.of tailstock sleeve | 50mm(2") | |
Travel of tailstock sleeve | 120mm(4-3/4") | |
Morse taper of tailstock sleeve | No.4 Morse | |
Cross adjustock | ±13mm(±1/2") | |
Power of main motor | 2.8/3.3kw(3.8/4.5HP)3PH | |
Power of coolant pump | 0.1KW(1/8HP),3PH | |
Overall dimension(L×W×H) | 1940/2440×850×1300)mm | |
Packing size(L×W×H) | 2060/2560×900×1640)mm | |
Net weight/Gross weight | 1160/1350 1340/1565kg |
