Product Main Technical Parameters
Bench Lathe Machine Main Performance Characteristics：
1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.ASA D4 cam-lock spindle nose
6.Various thread cutting function
Bench Lathe Machine Main Technical Parameters:
| Specifications | CZ1237V | CZ1337V | |
| Swing over bed | mm | 305 | 350 |
| Swing over carriage | mm | 173 | 215 |
| Swing over gap | mm | 440 | 485 |
| Width of bed-way | mm | 182 | |
| Distance between centers | mm | 940 | |
| Spindle taper | M.T.5 | ||
| Spindle bore | mm | 38 | |
| Step of speed | Variable speed | ||
| Range of speed | rpm | Low:70-520 High :520-1700 | |
| Head nose | D1-4 | ||
| Metric thread | mm | 26kinds (0.4~7 ) | |
| Inch thread | TPI | 34kinds(4~56) | |
| Module thread | MP | / | |
| Diametral thread | DP | / | |
| Longitudinal feeds | mm/r | 0.052~1.392 | |
| Cross feeds | mm/r | 0.014~0.38 | |
| Diameter of lead screw | mm | 22(7/8”) | |
| Pitch of lead screw | 3mm or 8T.P.I | ||
| Saddle travel | mm | 810 | |
| Cross travel | mm | 150 | |
| Compound travel | mm | 85 | |
| Barrel travel | mm | 95 | |
| Barrel diameter | mm | 32 | |
| Taper of center | mm | MT3 | |
| Motor power | Kw | 1.1(1.5HP) | |
| Coolant motor | Kw | 0.04(0.055HP) | |
| Machine(L×W×H) | mm | 1780×750×760 | |
| Stand (right)(L×W×H) | mm | 400×370×700 | |
| Stand (right)(L×W×H) | mm | 300×370×700 | |
| Machine(N.W/G.W) | Kg | 390/440 | |
| Stand(N.W/G.W) | Kg | 70/75 | |
| Standard accessories: | Optional accessories : |

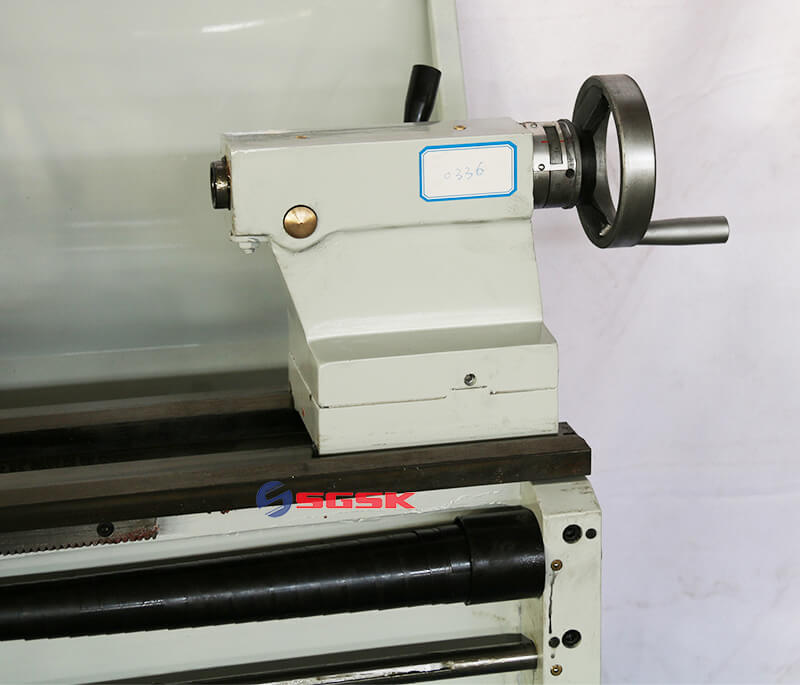

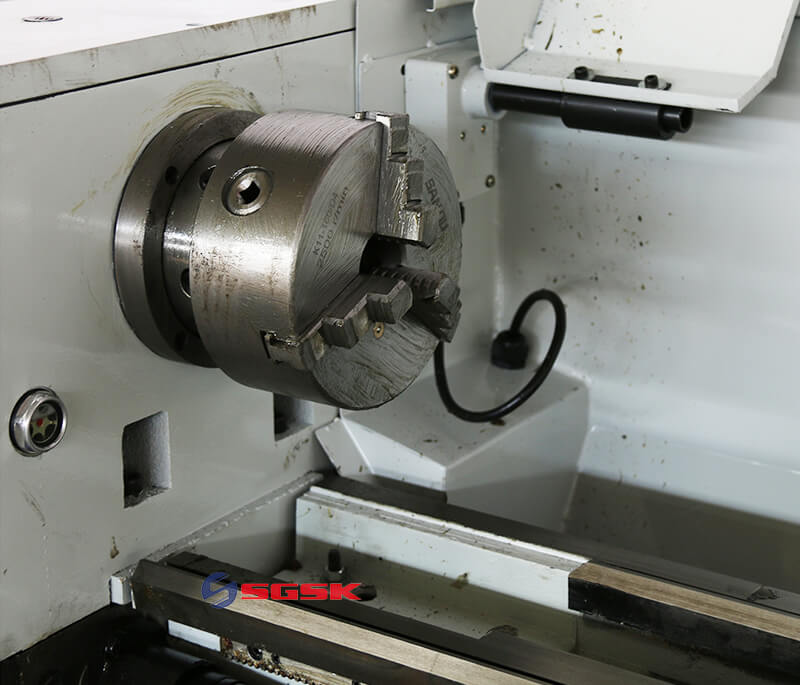

Stand, 3 jaw chuck, Work lamp, Coolant pump, Brake, Dead center , Manual tailstock , | Drill chuck, Lead screw guard, Taper shank, Tool post guard, Live centers, Chuck guard, Face plate, Taper attachment, Back plate, |
