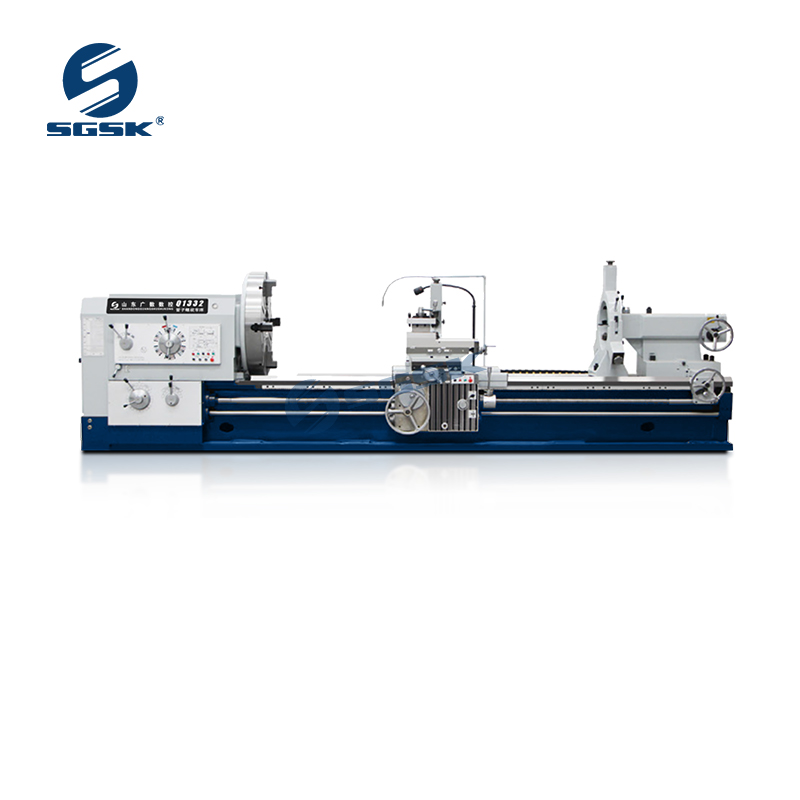

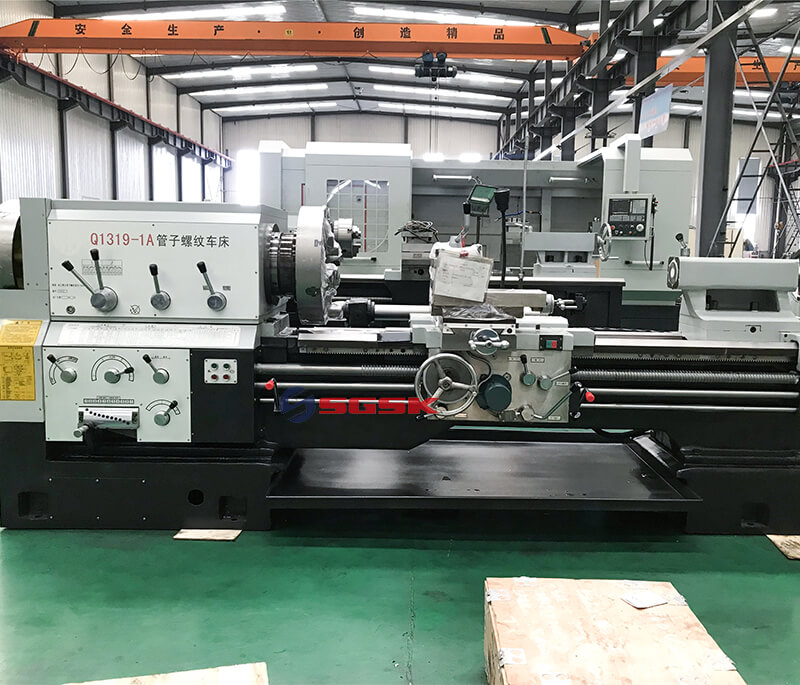

Q1319 Pipe Threading Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Pipe Threading Lathe Machine Main Performance Characteristics：

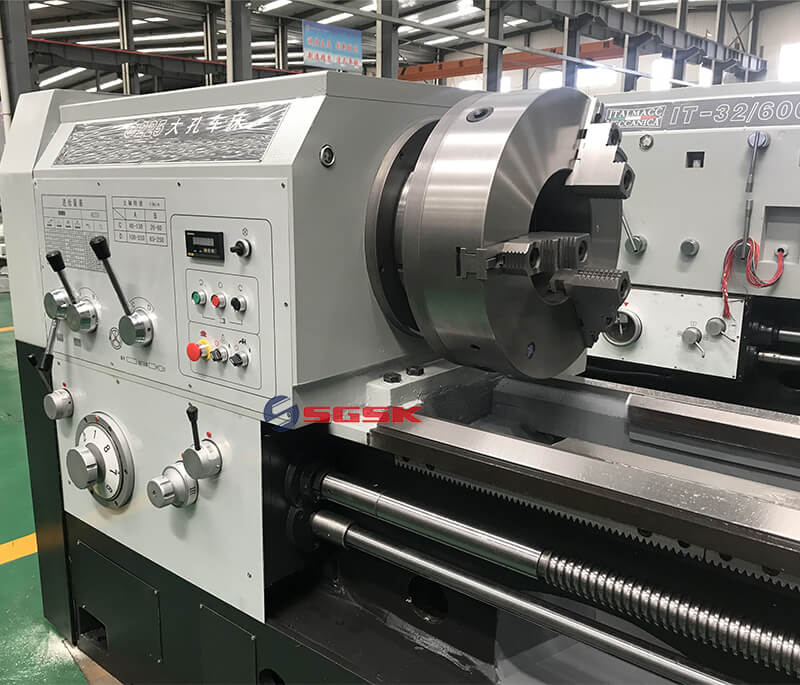

Big spindle bore and double chuck allows clamp and process big diameter pipes;

Integral machine bed adopts high strength iron to relize high rigidity and precision;

Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

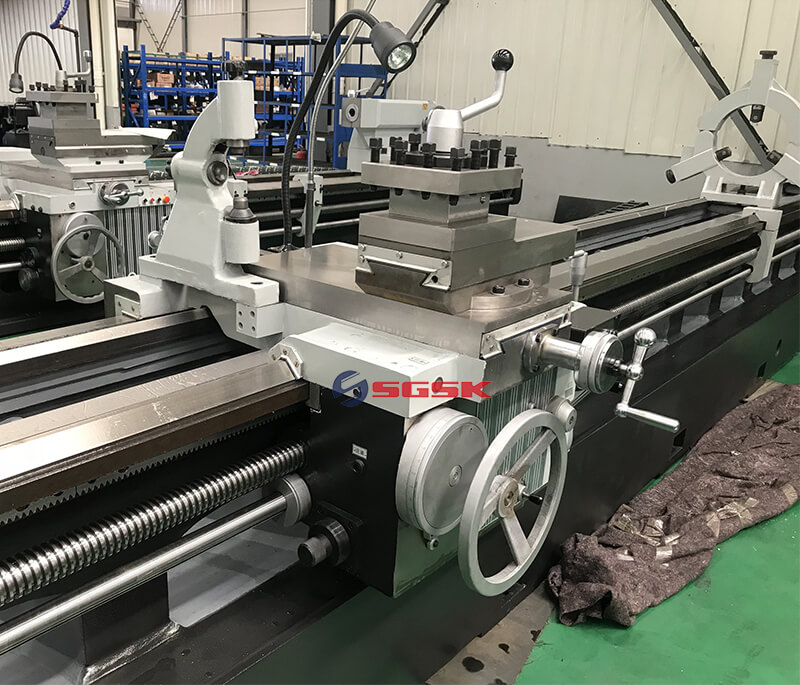

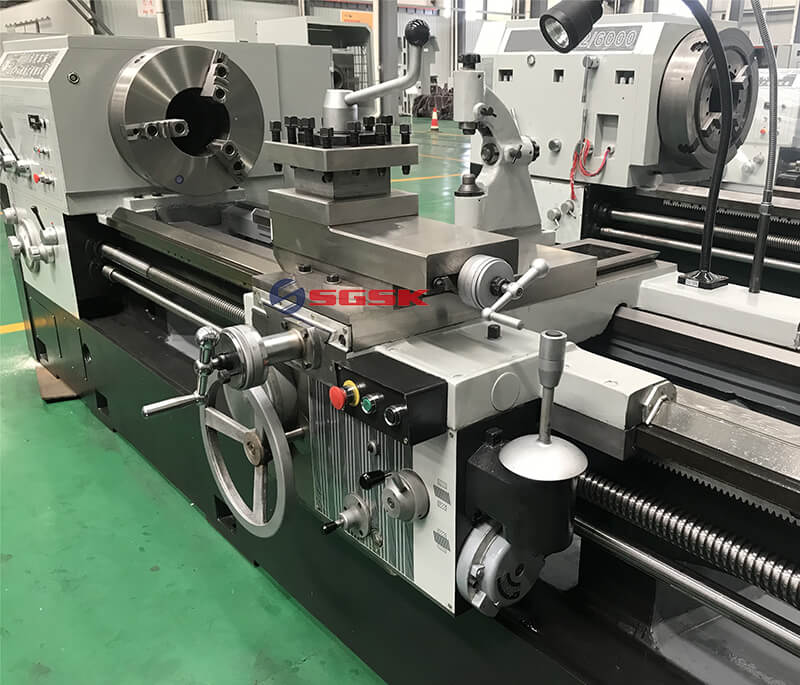

Equiped with taper guide bar device this enables the machine to process taper threads.

Pipe Threading Lathe Machine Application:

Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.

Pipe Threading Lathe Machine Main Technical Parameters:

SPECIFICATIONS	Units	Q1313	Q1319
Swing over bed	mm	630/800	630/800
Pipe threading range	mm	30-126	50-193
Guideway width	mm	550	550
Max. load capacity	kg	3000	3000
Spindle bore	mm	130	200
Spindle speed steps	-	FWD.18stepd/REV.9steps	VF. 4 steps
Spindle speed range	rpm	30-650	20-550
Chuck	mm	φ400 3-jaw manual	φ520 4-jaw manual
Turret/tool post	-	Manual 4 position	Manual 4 position
Tool shank size	mm	30 x 30	32 x 32
X axis travel	mm	320/420	320/420
Z axis travel	mm	1350/2850	1350/2850
X axis feed steps/range	mm/r	22/0.02-0.45	22/0.02-0.45
Z axis feed steps/range	mm/r	26/0.07-1.33	26/0.07-1.33
X axis rapid traverse	mm/min	2300	2300
Z axis rapid traverse	mm/min	4000	4000
Metric thread kinds /range	mm	52/1-24	1-15
Inch thread kinds /range	T.P.I	40/28-2	14-1
Tailstock quill diameter	mm	100	100
Tailstock quill taper	-	MT5	MT5
Tailstock quill travel	mm	250	250
Main spindle motor	kw	11	11
Rapid traverse motor	kw	0.3	0.3
Coolant pump motor	kw	0.125	0.125
Weight for 1500	kg	40000	43000
Weight for 3000	kg	52000	55000
Dimension for 1500	mm	3700x1500x1500	3700x1550x1550
Dimension for 3000	mm	5200x1500x1500	5200x1550x1550
