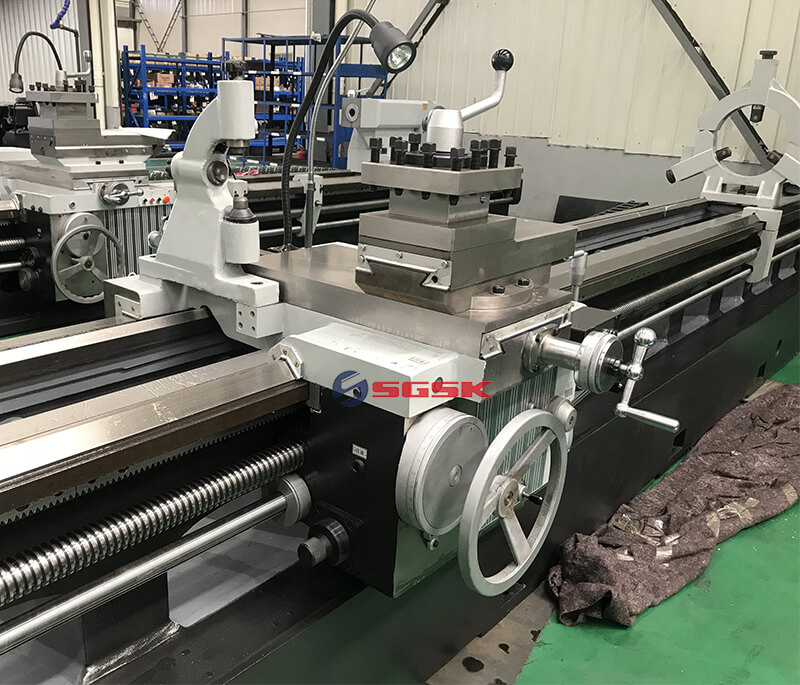

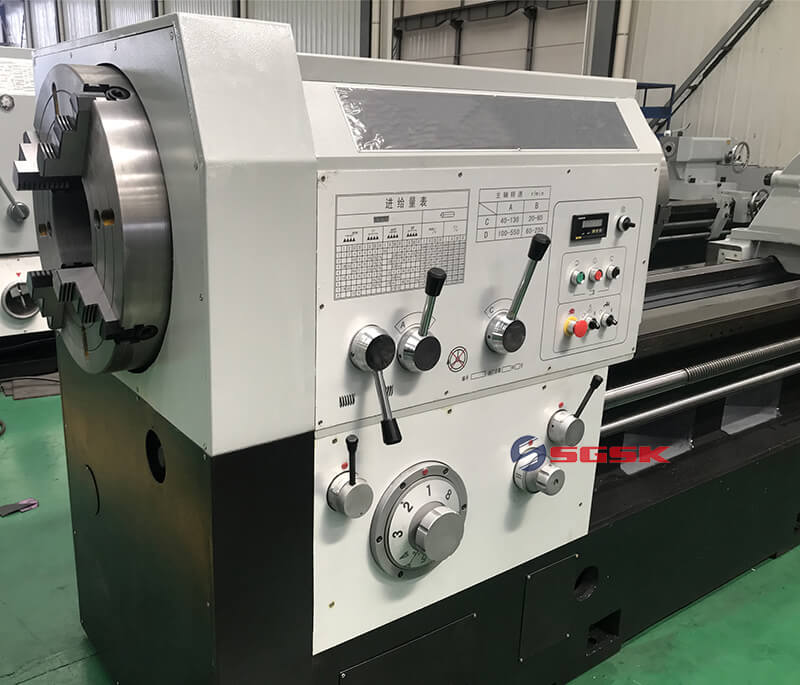

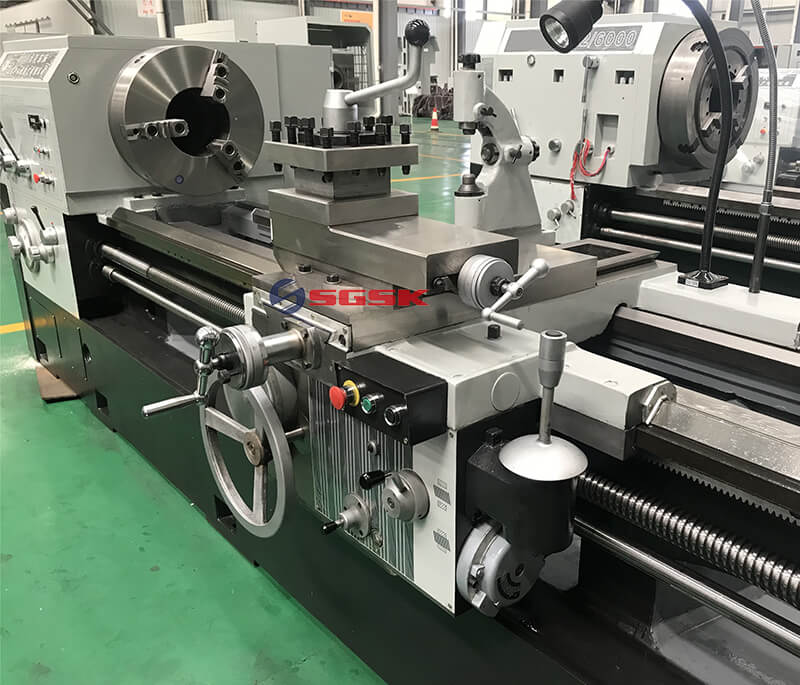

Q1322 Pipe Threading Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Pipe Threading Lathe Machine Main Performance Characteristics：

Big spindle bore and double chuck allows clamp and process big diameter pipes;

Integral machine bed adopts high strength iron to relize high rigidity and precision;

Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

Equiped with taper guide bar device this enables the machine to process taper threads.

Pipe Threading Lathe Machine Application:

Q1332 horizontal pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.

Pipe Threading Lathe Machine Main Technical Parameters:

SPECIFICATIONS	Units	Q1322
Swing over bed	mm	630/800
Swing over cross slide	mm	340/520
Distance between centers	mm	1500/3000
Pipe threading range	mm	50-220
Guideway width	mm	550
Max. load capacity	kg	3000
Spindle bore	mm	230
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	20-550
Chuck	mm	φ520 4-jaw manual
Turret/tool post	-	Manual 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	320/420
Z axis travel	mm	1350/2850
X axis feed steps/range	mm/r	22/0.02-0.45
Z axis feed steps/range	mm/r	26/0.07-1.33
X axis rapid traverse	mm/min	2300
Z axis rapid traverse	mm/min	4000
Metric thread kinds /range	mm	1-15
Inch thread kinds /range	T.P.I	14-1
Tailstock quill diameter	mm	100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	250
Main spindle motor	kw	11
Rapid traverse motor	kw	0.3
Coolant pump motor	kw	0.125
Weight for 1500	kg	4500
Weight for 3000	kg	5700
Dimension for 1500	mm	3700x1650x1550
Dimension for 3000	mm	5200x1650x1550
