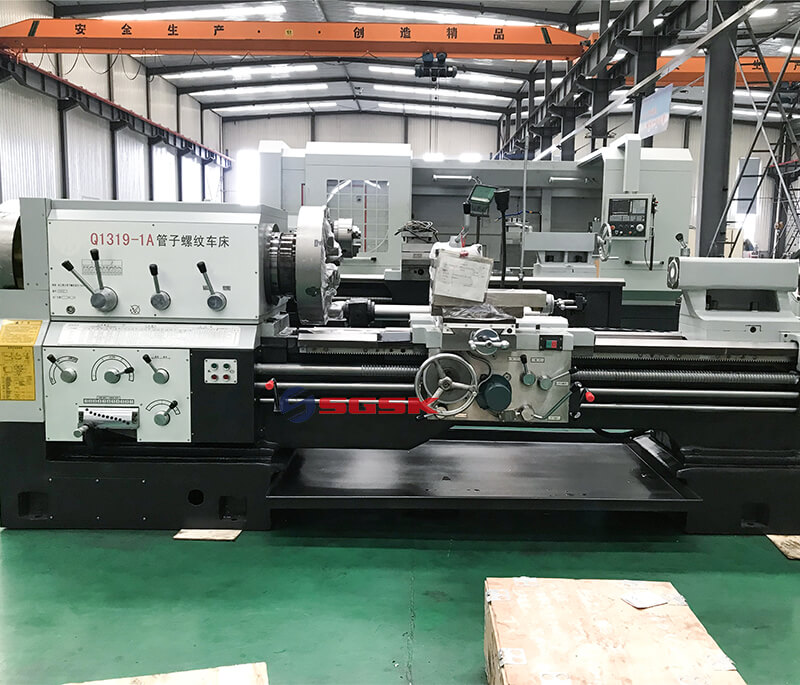

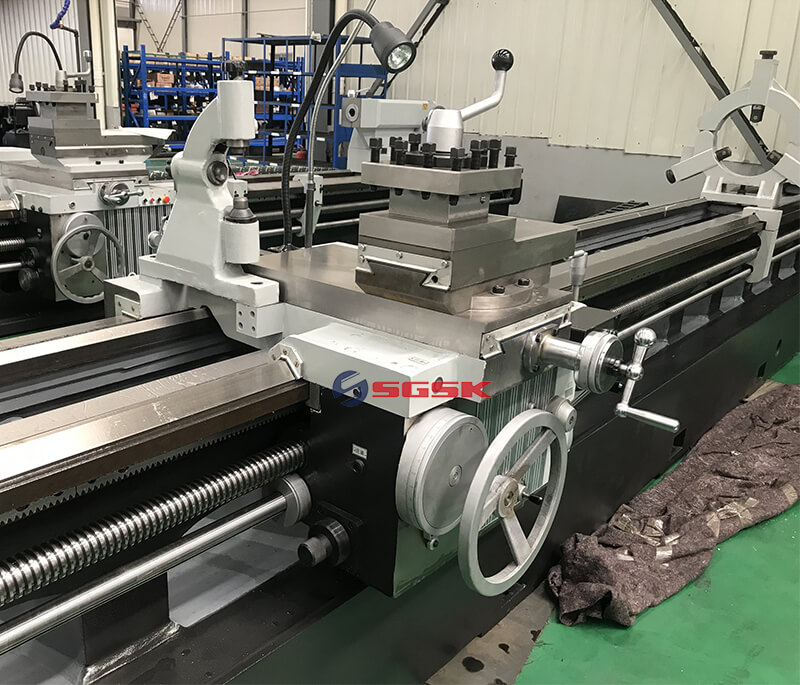

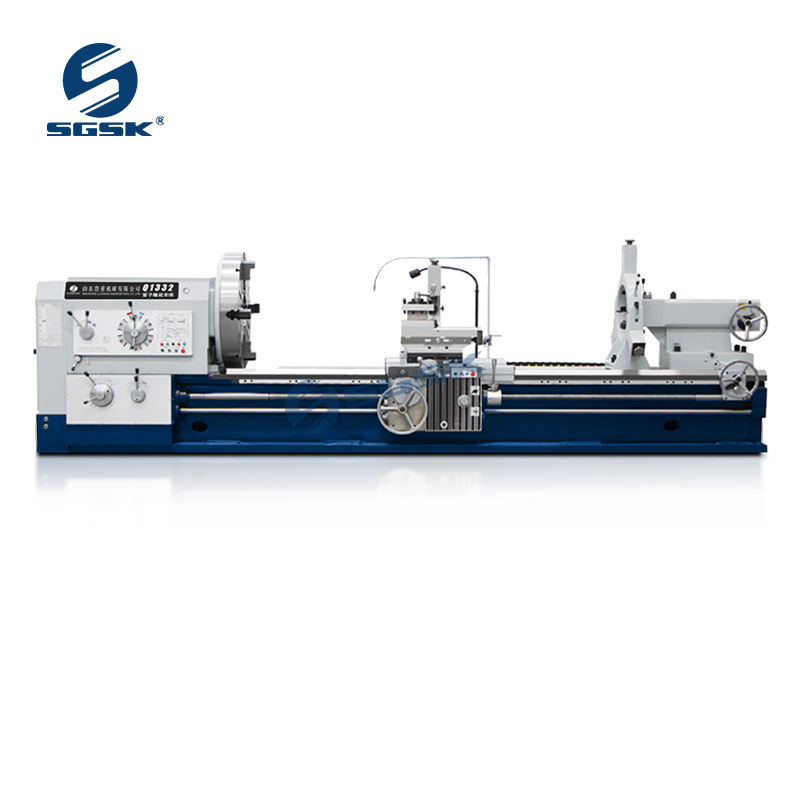

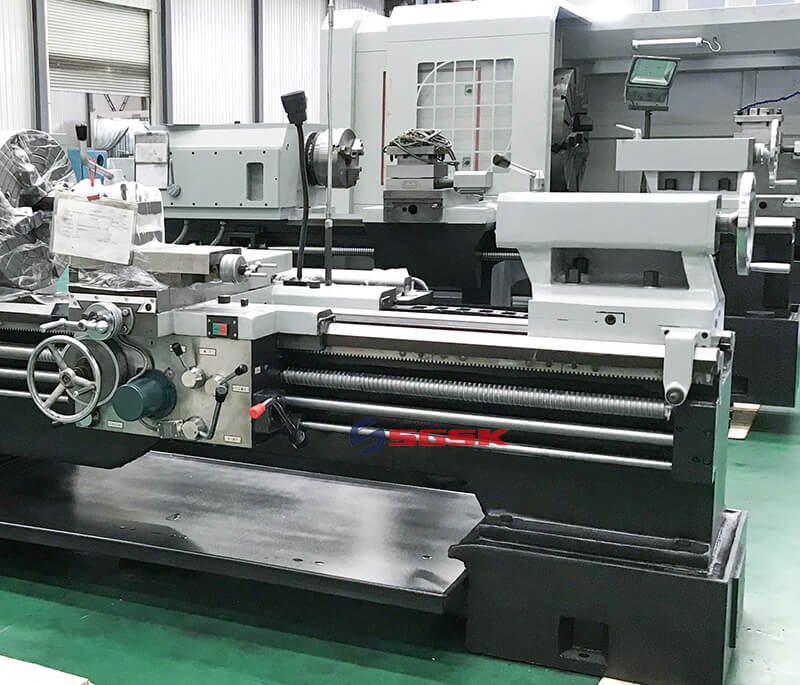

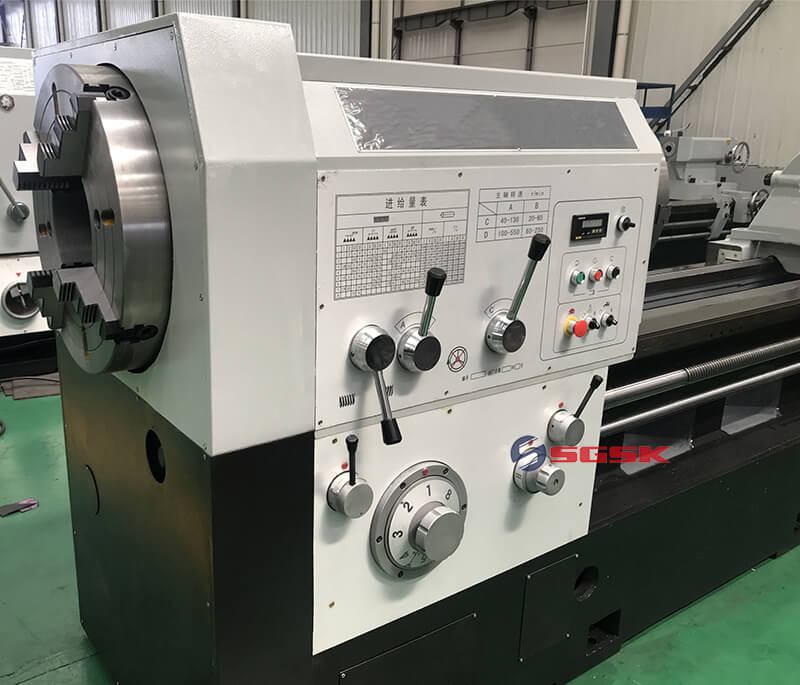

Q1350 Pipe Threading Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Pipe Threading Lathe Machine Main Performance Characteristics：

Big spindle bore and double chuck allows clamp and process big diameter pipes;

Integral machine bed adopts high strength iron to relize high rigidity and precision;

Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;

Equiped with taper guide bar device this enables the machine to process taper threads.

Pipe Threading Lathe Machine Application:

Heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.

Pipe Threading Lathe Machine Main Technical Parameters:

Specifications		UNIT	Q1350
Capacity	Swing over bed	mm	1000
	Swing over cross slide	mm	610
	Distance between centers	mm	1500/3000
	Pipe threading range	mm	Ø350-510
	Width of bed way	mm	755
	Max.load capacity	T	5
Spindle	Spindle bore	mm	520
	Spindle speed steps	-	9 steps
	Spindle speed range	rpm	4.9-180
	Chuck size	mm	Ø1000
	Chuck type	-	4-jaw manual
Turret	Turret type	-	Manual 4 position
	Tool shank size	mm	40x40
	Turret travel	mm	300
Carriage	X axis feed grade/range	mm/r	32/0.095-1.44
	Z axis feed grade/range	mm/r	32/0.095-1.4
	X axis rapid traverse speed	mm/min	1870
	Z axis rapid traverse speed	mm/min	3740
	X axis travel	mm	520
	Z axis travel	mm	1300/2800
Tailstock	Tailstock quill diameter	mm	140
	Tailstock quill taper	-	MT#6
	Tailstock quill travel	mm	300
Motors	Main spindle motor	kW	22
	Rapid traverse motor	kW	1.5
	Coolant pump motor	kW	0.125
Thread	Metric thread grade/range	mm	23/1-15
	Inch thread grade/range	T.P.I.	22/2-28
	Moudle thread grade/range	mm	-
	DP thread grade/range	D.P.I	-
Dimensions	Width x Height	mm	2100X1700
Dimensions	Length	mm	4190/5690
Weight	Net weight	T	15.0/16.5
