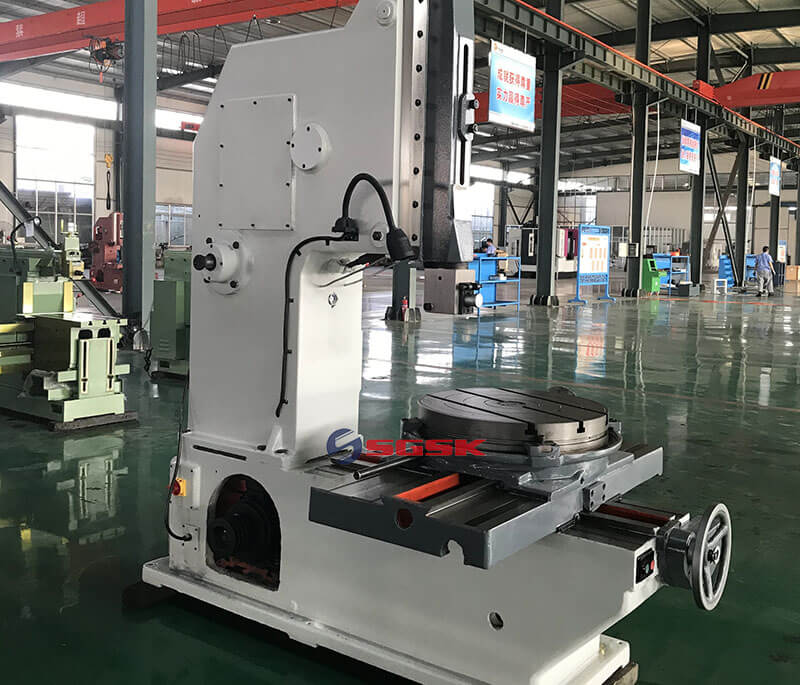

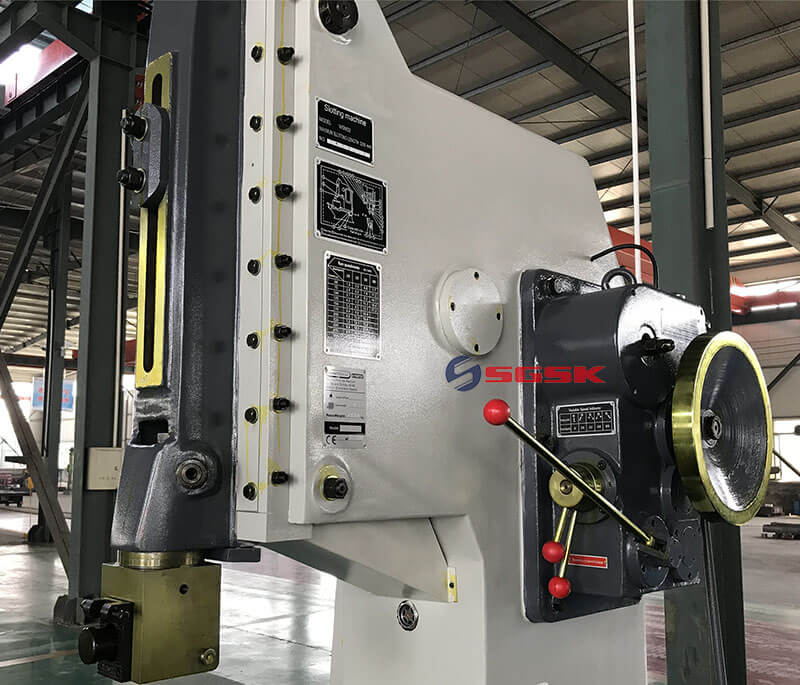

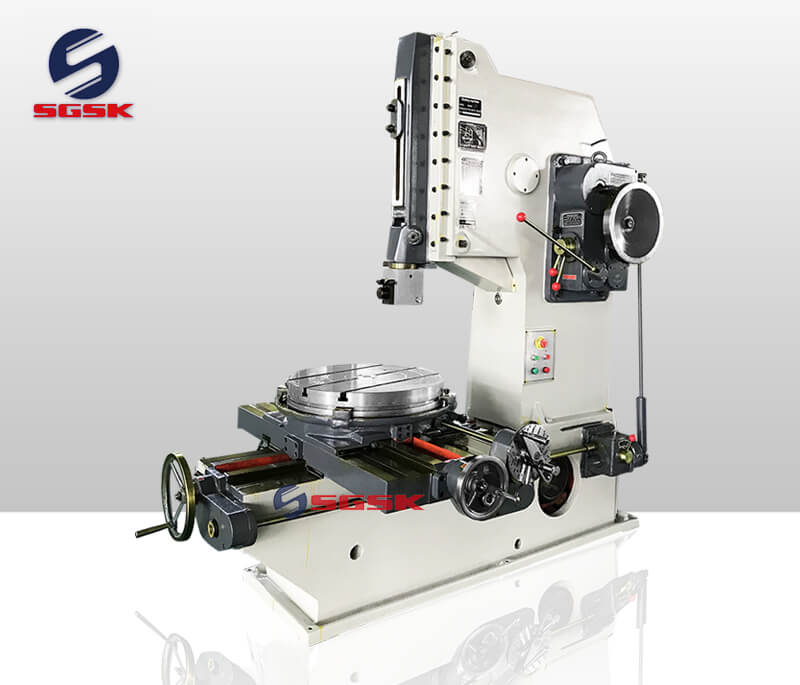

B5032 Slotting Machine

Inquire Now Next Product

Product Main Technical Parameters

Slotting Machine Main Performance Characteristics：

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

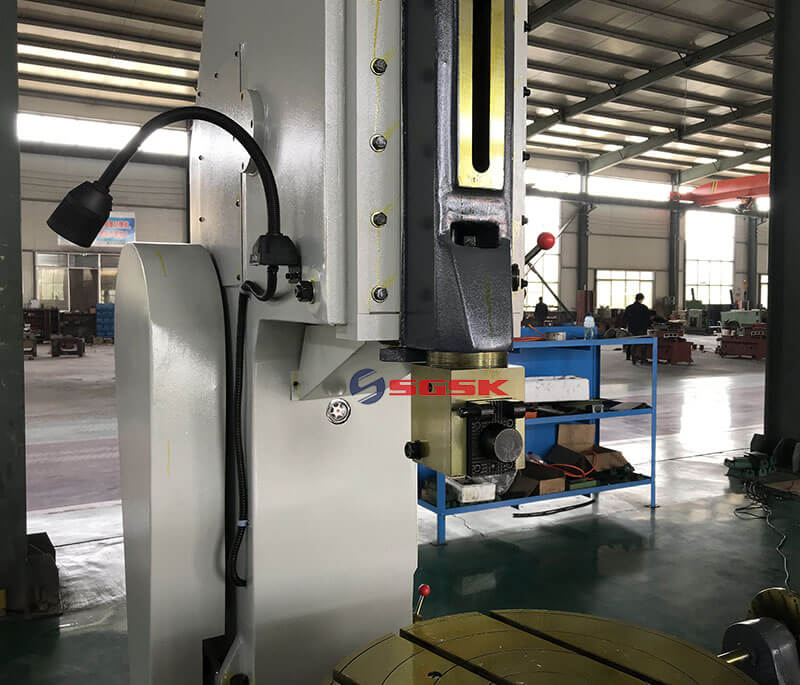

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Slotting Machine Application：

1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,

2. Enterprise suitable for single or small batch production.

Slotting Machine Main Technical Parameters:

Specification	Unit	B5032
Max. stroke of RAM	mm	340
Ram maximum slotting length	mm	320
Ram motion frequency	times/min	20.32.50.80
Ram tilt angle	°	0-8
Ram vertical adjustment distance	mm	315
Cutter head bearing surface to the distance between the forearm bed	mm	600

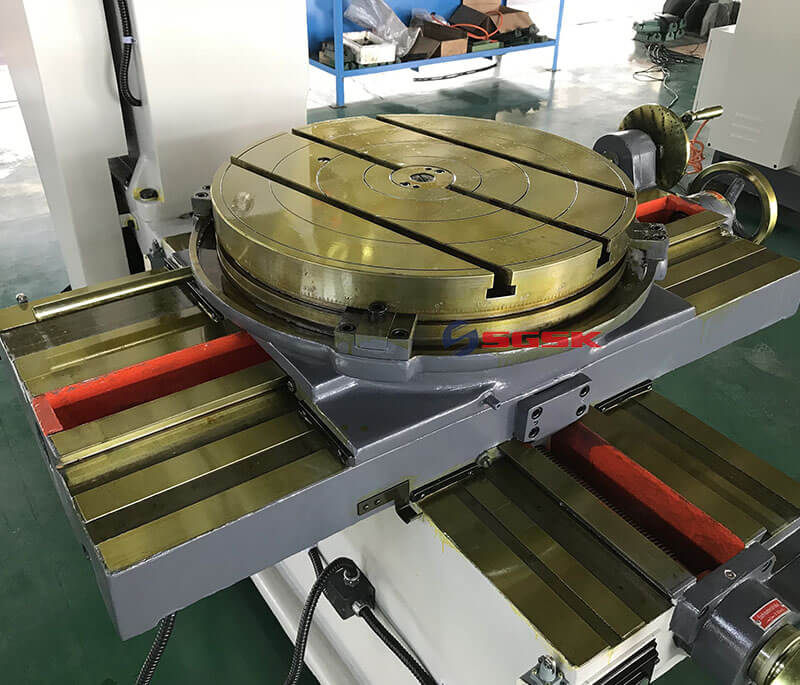

Table Diameter	mm	630
The distance between the lower end of the sliding frame to work table	mm	490
Max. longitudinal moving distance of working table	mm	630
Max. transverse moving distance of working table	mm	560
Table maximum rotation angle	°	360
Vertical and horizontal table power feed range	mm	0.08-1.21
Table rotary feed range	mm	0.052-0.783
Motor power	kw	4
Motor speed	r/min	960
Machine weight	kg	3000
Outline dimension	mm	226114952245
