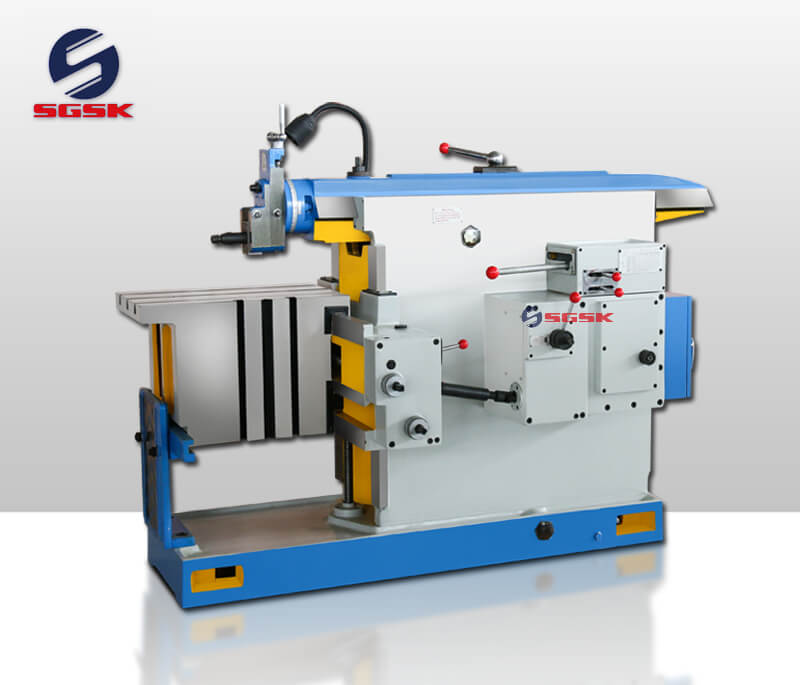

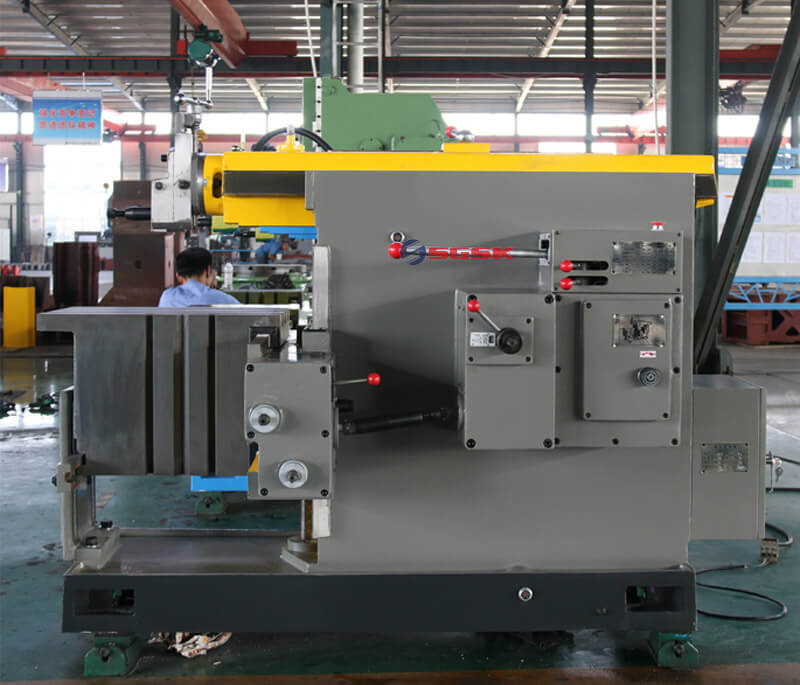

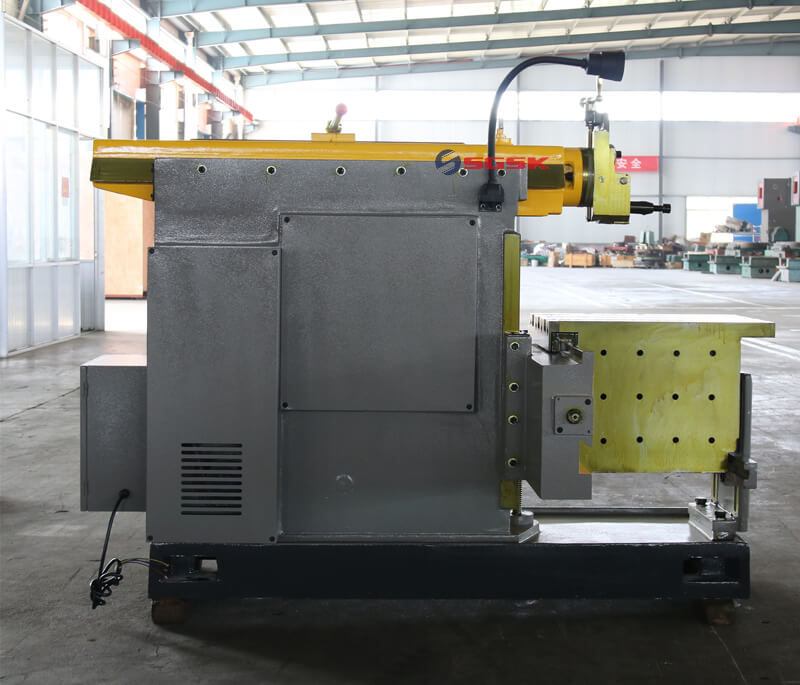

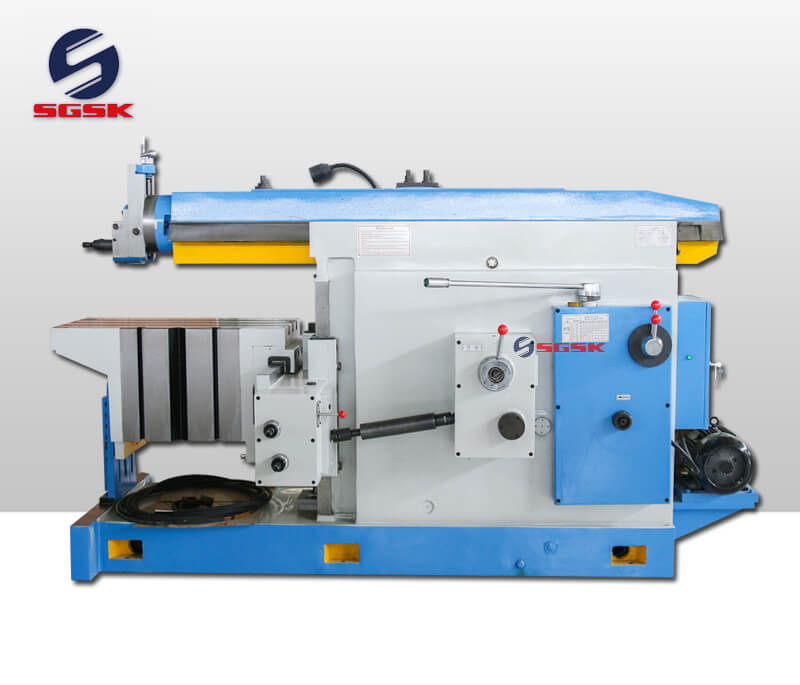

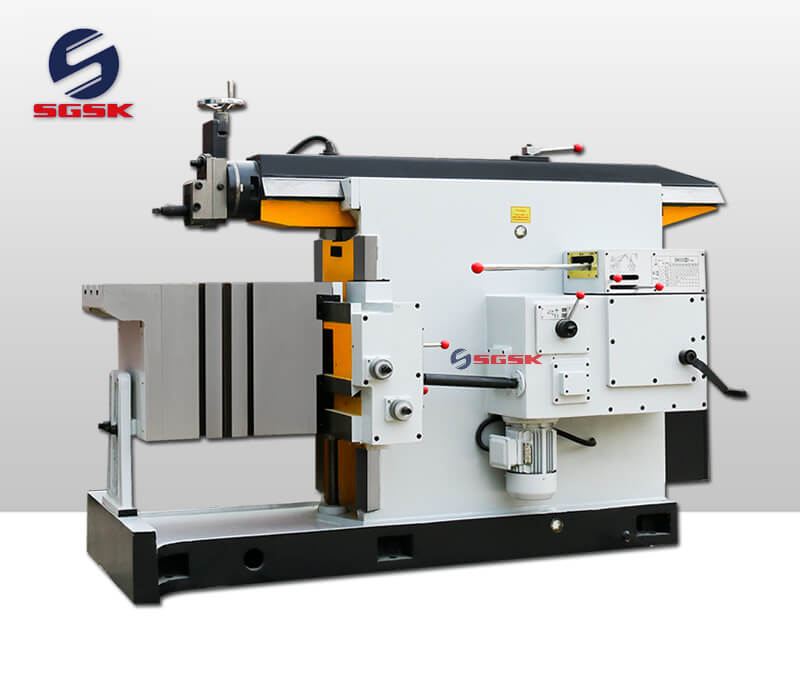

Product Main Technical Parameters
| Specifications | Units | BC6066 | |
| Maximum shaping length | mm | 660 | |
| Max.range of the horizontal movement of the table | mm | 385 | |
| Max.distance between he ram bottom and table | mm | 630 | |
| Max.length of the vertical movement of table | mm | 360 | |
| Dimension of table top(L*W) | mm | 660X400 | |
| Travel of tool head | mm | 120 | |
| Number of ram strokes per minute | Times min | 14,20,28,40,56,80 | |
| Swivel of tool head | ° | +/-60 | |
| Maximum size of tool shank(W*T) | mm | 20X30 | |
| Range of table feed | Horizontal 12 steps | mm | 0.4-5 |
| vertical 12 steps | mm | 0.08-1.00 | |
| Width of the T-slot for center positioning | mm | 18 | |
| Main motor power | KW | 3 | |
| Overall dimension(L*W*H) | mm | 2357X1225X1480 | |
| N.w./G.W | kg | 1800/1920 | |
