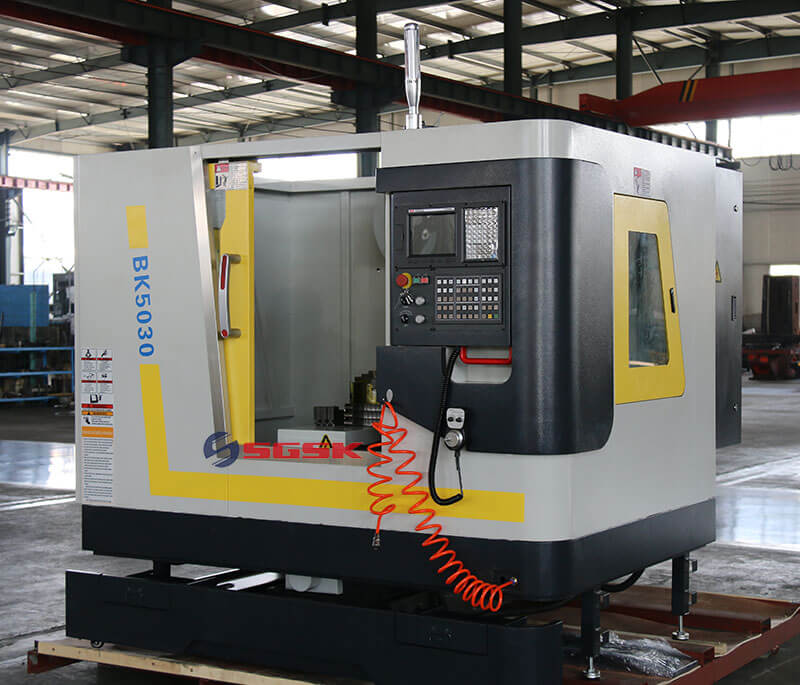

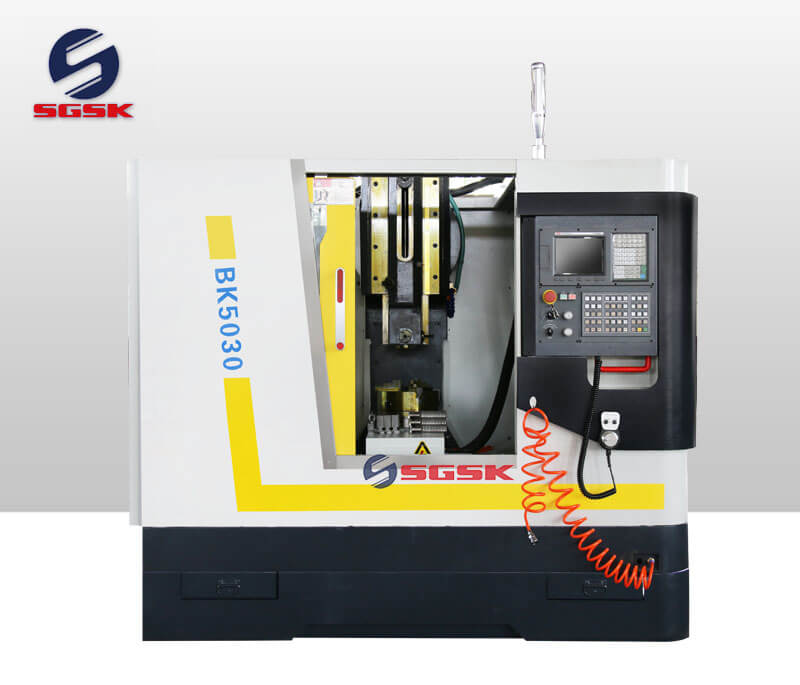

BK5030 CNC Slotting Machine

Inquire Now Next Product

Product Main Technical Parameters

Specifications	unit	BK5030

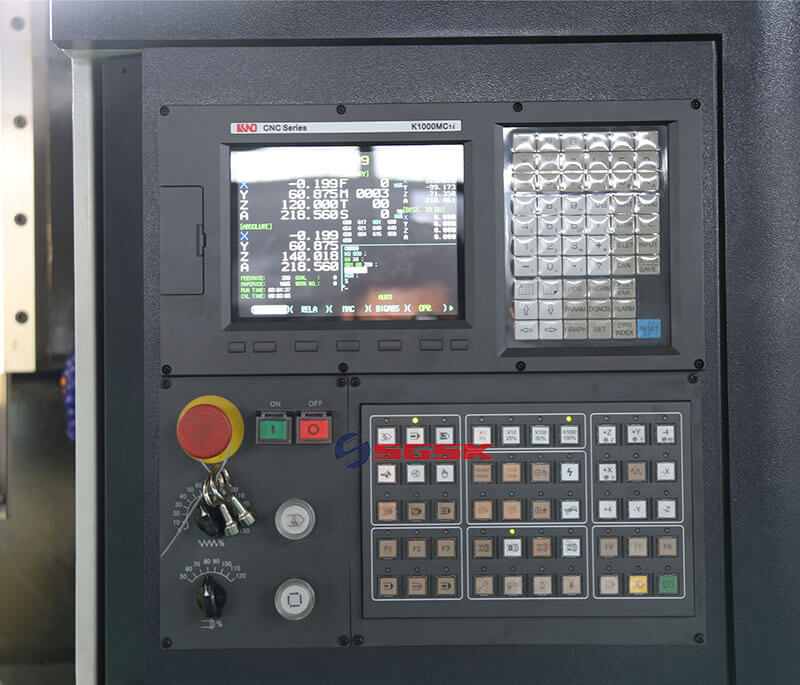

Control system		KND 1000 M
Max cutting length	mm	300
The maximum longitudinal movement distance of worktable is X axis	mm	560
The maximum longitudinal movement distance of worktable is Y axis	mm	540
Maximum rotation angle of worktable	mm	360
Maximum cutting force	KN	8
Distance between cutter support surface and front wall of bed	mm	600

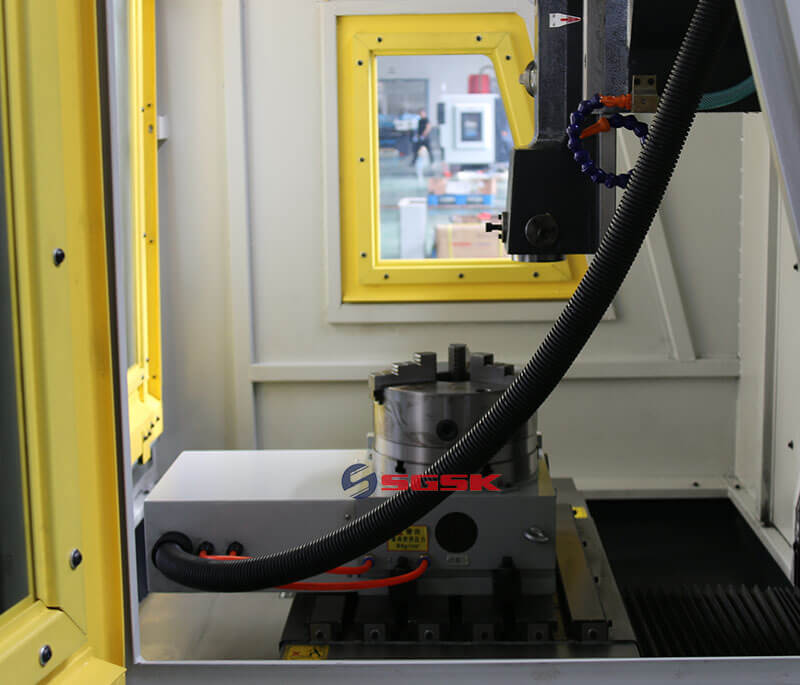

Worktable diameter	mm	Φ 600
Slide angle of the ram	°	0-8
Vertical adjustment of the ram distance	mm	370
Distance between worktable and lower end of carriage	mm	470
Worktable maximum load	KG	500
T-slot width of the center of the table	Mm	18HB
Main motor power	Kw	3
The main motor speed	r/min	960
Machine weight	kg	2700
Dimensions	Mm	200015002400
