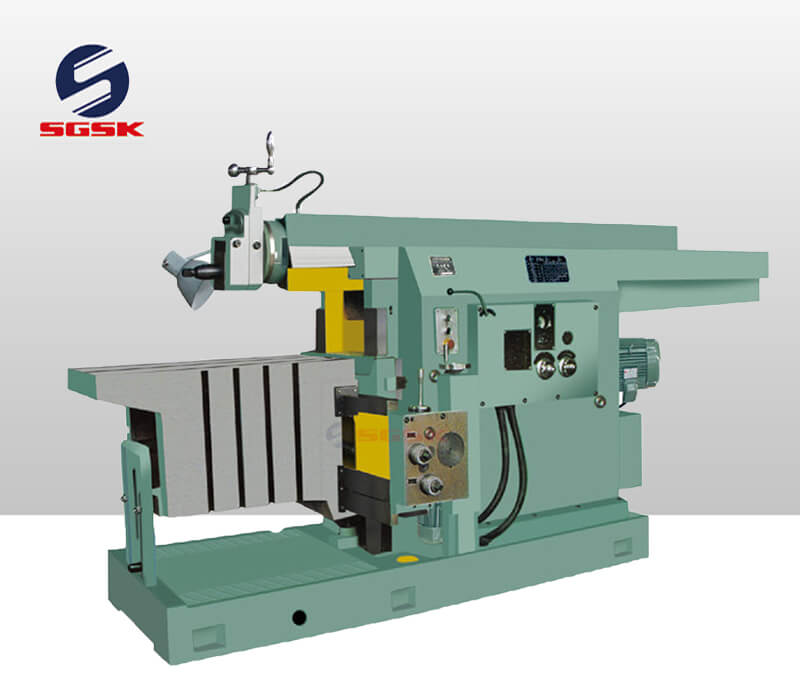

BY60100 BY60125 Hydraulic Shaper Machine

Inquire Now Next Product

Product Main Technical Parameters

BY60100 BY60125 Hydraulic Shaper Machine Main Features:

1.The machine is used in a variety of cutting and forming flat surface, suitable for single and small batch production.

2.Bed and other key parts of tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable accuracy, longer service life.

3.The principal cutting movement and feed movement are the hydraulic transmission, stepless speed regulation, with hydraulic overload protection device, smooth rotation, little overrun, start and stop is flexible and reliable, rigidity, cutting force, high directional accuracy, low temperature, small thermal deformation and precision stability, and can apply to the work of a strong and continuous cutting.

4.The machine tool can achieve rapid horizontal and vertical movement, turret with automatic tool lifting mechanism, machine tool handles, easy to operate, high degree of automation

BY60100 BY60125 Hydraulic Shaper Machine Main technical specification：

Specification	Units	BY60100 /BY60125
Max. shaping length	mm	1000/1250
Cutting speed of ram(step less)	Mm/min	3-44
Distance from lower edge of ram to upper surface of table	mm	80-400
Max. cutting force	N	28000
Max. travel of tool post	mm	160
Maximum size of tool planer(W*T)	mm	30×45
Upper working surface of table(L x W)	mm	1000×500/1250x500
T-slot width of upper table surface	mm	22
Max. horizontal travel of table	mm	800
Horizontal feed of table (per reciprocating stroke of ram, step less)	mm	0.25-5
Main motor power	KW	7.5
Motor for rapid table movement	KW	0.75/1.5
Overall dimensions(L x W x H)	mm	3615×1574×17604140x1550x1850
N/G.W	kg	4200/4350 4650/4850
