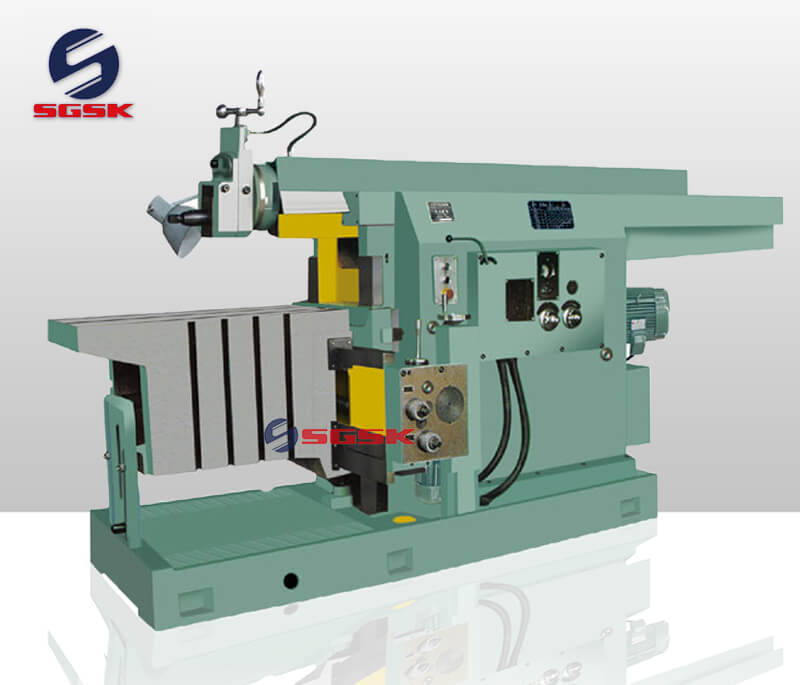

BY6085 Hydraulic Shaper Machine

Inquire Now Next Product

Product Main Technical Parameters

BY6085 Hydraulic Shaper Machine Main Features：

1.Bed and other key parts tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable accuracy, longer service life.

2.The main cutting movement and feed movement are the gear drive, and can be stepless speed regulation, with the hydraulic overload insurance device, the rotation is stable, the super process is small, and the starting and stopping is flexible and reliable.

3.The rigidity of the machine tool, cutting force, high directional accuracy, low temperature, small thermal deformation, accuracy and stability, and can apply to the work of a strong and continuous cutting.

4 .Machine tool can achieve rapid horizontal and vertical movement, with automatic tool to lift the machine tool, machine tool set up easy to operate, high degree of automation.

BY6085 Hydraulic Shaper Machine Main Technical Specification：

Specification	Unit	BY6085
Max. shaping length	mm	850
Cutting speed of ram(step less)	m/min	2-24
Distance from lower edge of ram to upper surface of table	mm	350
Max. cutting force	kg	1500
Max. travel of tool post	mm	150
Max. sectional area of tool bar (W x H)	mm	22 x 30
Upper working surface of table(L x W)	mm	800 x 400
T-slot width of upper table surface	mm	18
Max. horizontal travel of table	mm	600
Horizontal feed of table (per reciprocating stroke of ram, step less)	mm	0.25-3
Main motor power	KW	4
Motor for rapid table movement	KW	0.75
Overall dimensions(L x W x H)	mm	2770 x 1350 x 1500
Net weight	kg	2600
