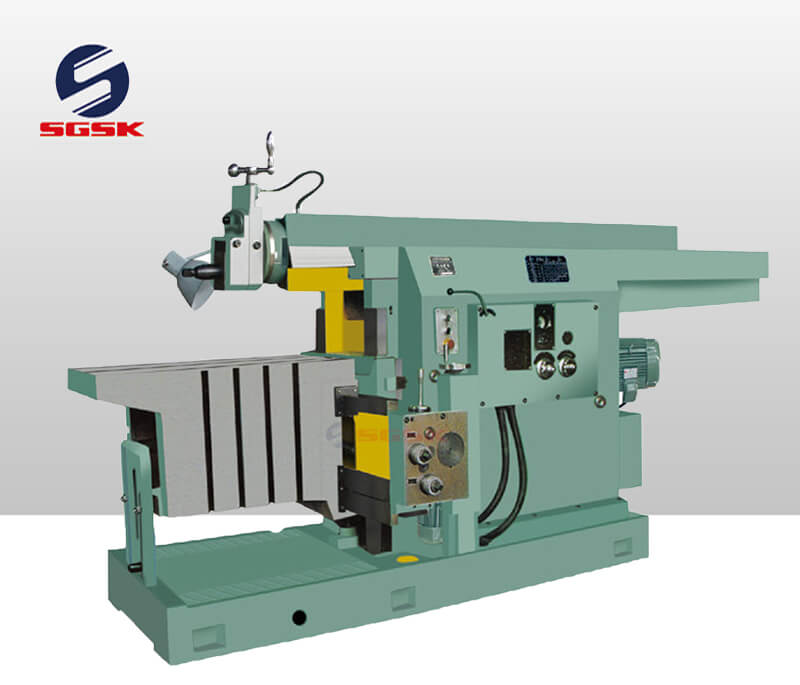

BY6090 Hydraulic Shaper Machine

Inquire Now Next Product

Product Main Technical Parameters

BY6090 Hydraulic Shaper Machine Main Features:

1.The machine is used in a variety of cutting and forming flat surface, suitable for single and small batch production.

2.Bed key pieces of tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable accuracy, longer service life.

3.The main cutting movement and feed movement are hydraulic transmission, can be step less speed regulation, with the hydraulic overload insurance device, the rotation is stable, the ultra small amount, starting and stopping the flexible and reliable, machine tools, good rigidity, cutting force,

For high precision, low oil temperature, thermal deformation, small precision and stability, can be applied to continuous strong cutting work.

4.Machine tool can achieve rapid horizontal and vertical movement, with automatic tool to lift the machine tool, machine tool set up, easy to operate, high degree of automation

BY6090 Hydraulic Shaper Machine Main Technical Specification：

Specifications	Units	BY6090
Maximum shaping length	mm	900
Max .table horizontal travel	mm	600
Distance from lower edge of ram to upper surface of table	mm	450
Max .table vertical travel	mm	400
Upper working surface of table(L x W)	mm	900×400
Max. travel of tool post	mm	150
Travel of tool head	°	±60°
Maximum section of size (W*T)	mm	22×30
Table range of horizontal feed of ram reciprocation per minute	mm	0.25-1.8
Feeding range of horizontal (12steps)		Step less
Maximum working force	kg	1500
Maximum loading weight on worktable	kg	200
Speed of rapid travel horizontal table		1.57
Speed of rapid travel vertical table		0.35
T-slots width	mm	18
Main motor power	KW	4
Fast motor power	KW	0.75
N/G.W	kg	2700/2850
Overall dimensions(L x W x H)	mm	2670×1350×1600
