Product Model：

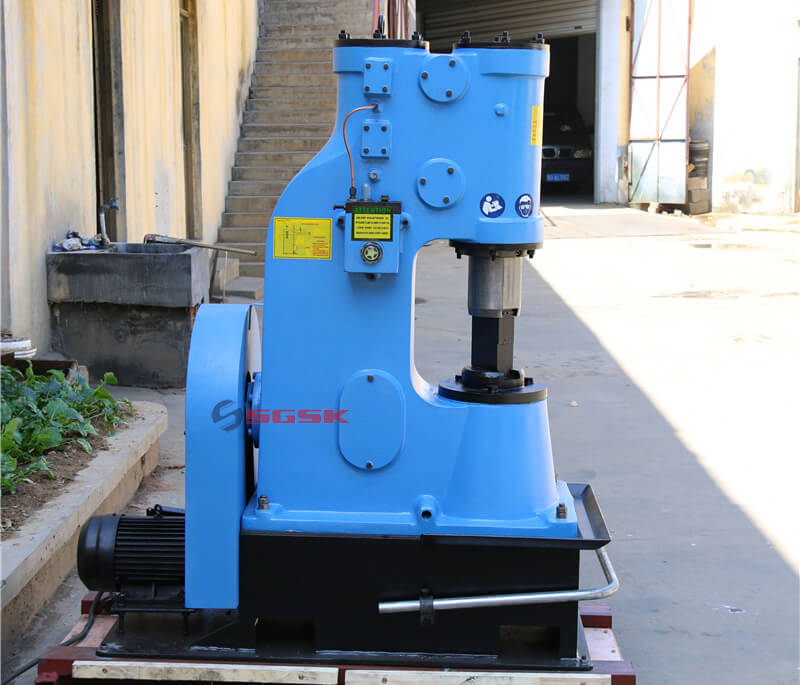

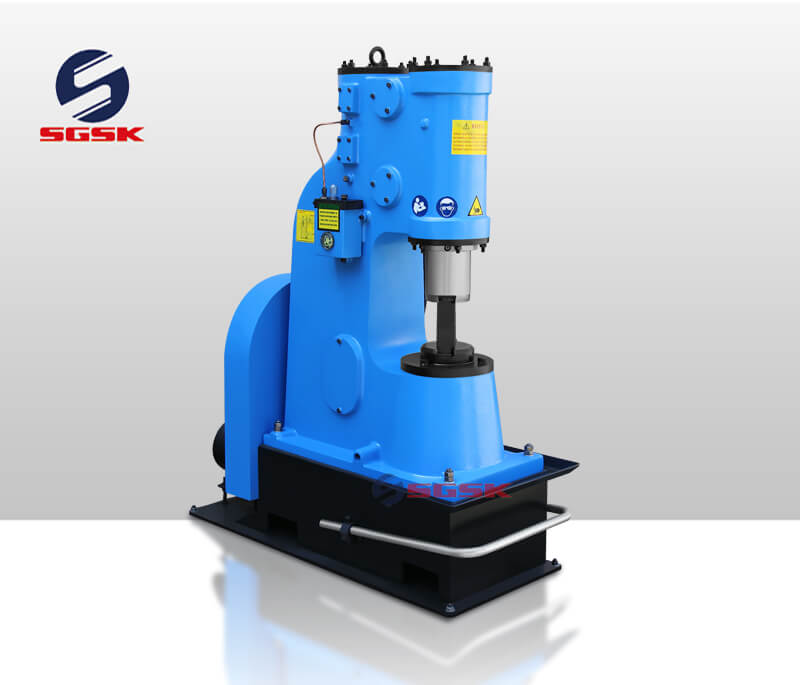

C41-16 Air Hammer Machine

Inquire Now Next Product

Product Main Technical Parameters

Air Hammer Machine Main Performance Characteristics：

1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage

Air Hammer Machine Application：

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Air Hammer Machine Main Technical Specification:

Parameter / project / model	Units	C41-16kg
Blow energy	K j	0.18
Height of working area	mm	180
Number of blows	min-1	258
Anvil block size	mm	70x40
Malleable square steel length	mm	20x20
Malleable circular steel length	mm	￠22
Match use of power	K w	Single-phase 1.5/220, Three-phase 1.5/380
Motor speed	r. p. m	1440
