Product Model：

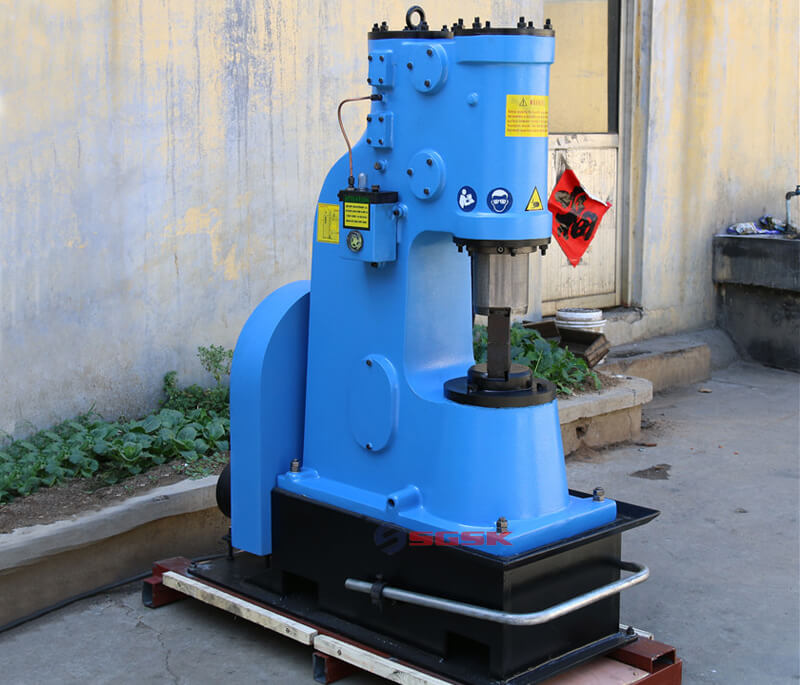

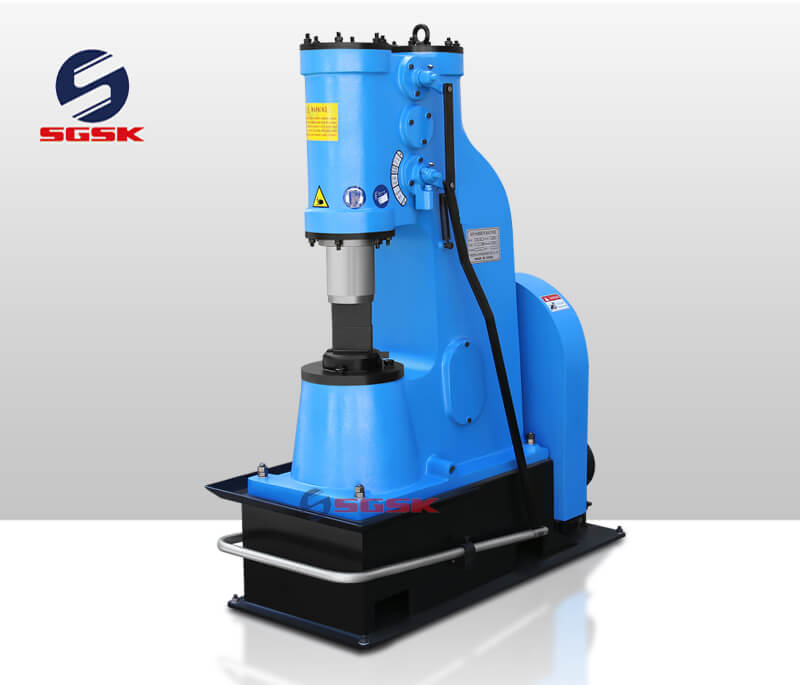

C41-25 Air Hammer Machine

Inquire Now Next Product

Product Main Technical Parameters

Air Hammer Machine Main Performance Characteristics：

1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage

Air Hammer Machine Application：

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Air Hammer Machine Main Technical Specification:

Parameter / project / model	Units	C41-25kg
Blow energy	K j	0.27
Height of working area	mm	240
Number of blows	min-1	250
Anvil block size	mm	100x50
Malleable square steel length	mm	40x40
Malleable circular steel length	mm	45
Match use of power	K w	Single-phase 3/220V, Three-phase 2.2/380V
Motor speed	r. p. m	1440
Anvil sitting of weight	kg	200
Gross weight	kg	850
Appearance size	mm	950x550x1260
