Product Model：

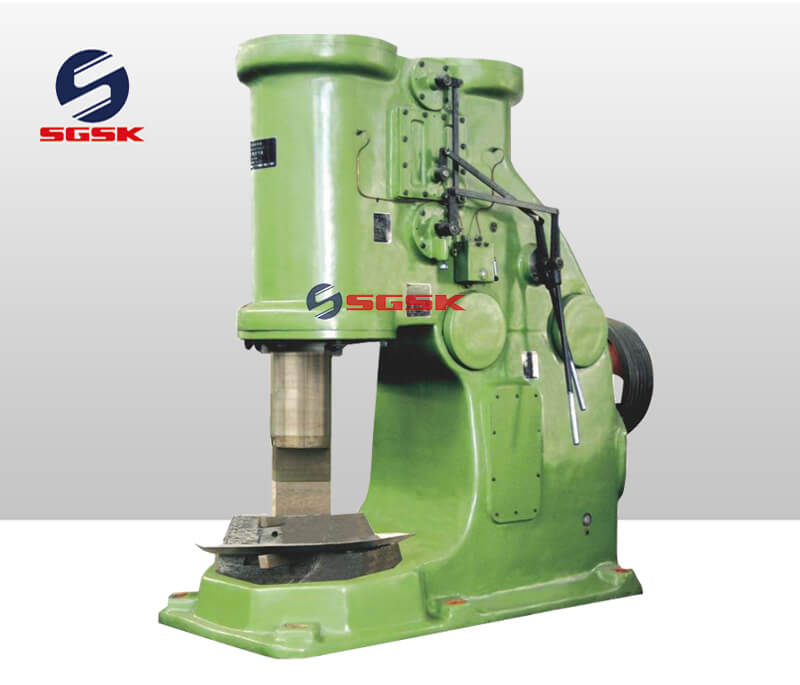

C41-250 Separate Type Air Hammer Machine

Inquire Now Next Product

Product Main Technical Parameters

Separate Type Air Hammer Machine Main Performance Characteristics：

1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage

Separate Type Air Hammer Machine Application：

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Separate Type Air Hammer Machine Main Technical Specification:

Technical Specifications
1	Weight of falling parts		Kg	250
2	Max. hit energy		Kj	5.6
3	Hit number		min -1	150
4	Distance from bottom die surface to bottom surface of lead		mm	450
5	Tup axis to hammer body		mm	430
6	Dimension of top die surface		mm	220 X 100
7	Dimension of bottom die surface		mm	220 X 100
8	Distance from botton die surface to base		mm	750
9	Motor	Type	--	180L-4
		Rate power	kw	22
		Speed	r.p.m	1470
10	Overall dimension		mm	2875 X 1405 X 2570
11	Anvil Weight		kg	2950
12	Total Weight		kg	8200
