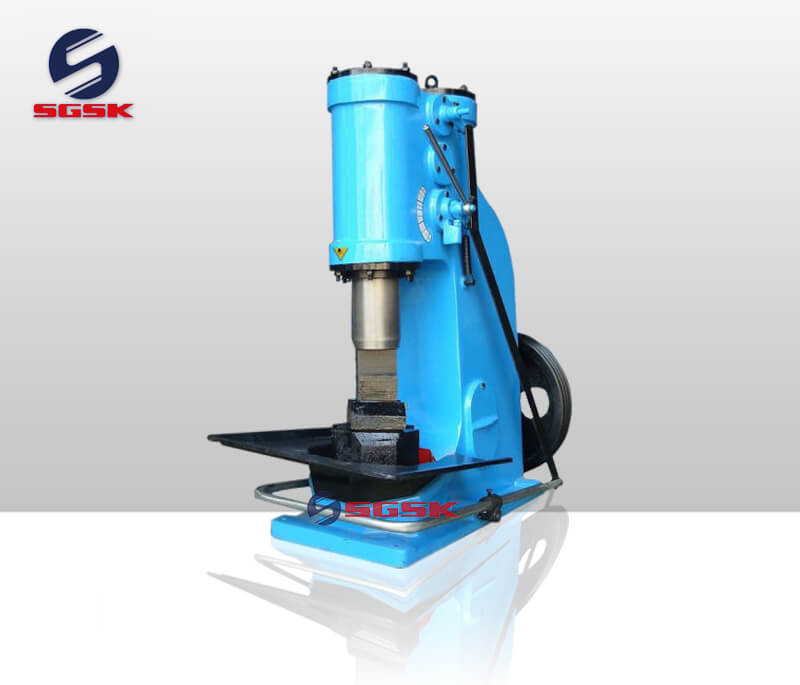

C41-55 Separate Type Air Hammer Machine

Inquire Now Next Product

Product Main Technical Parameters

Separate Type Air Hammer Machine Main Performance Characteristics：

1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage

Separate Type Air Hammer Machine Application：

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Separate Type Air Hammer Machine main technical specification:

Parameter / project / model	Units	C41-55kg	C41-40kg	C41-25kg	C41-20kg
Blow energy	K j	0.7	0.53	0.27	0.22
Height of working area	mm	265	245	240	200
Number of blows	min-1	230	245	250	255
Anvil block size	mm	120x55	120x50	100x50	90x50
Malleable square steel length	mm	52x52	52x52	40x40	30x30
Malleable circular steel length	mm	￠68	￠68	￠45	￠35
Match use of power	K w	5.5	4	Single-phase 3/220V, Three-phase 2.2/380V	Single-phase 2.2/220, Three-phase 2.2/380
Motor speed	r. p. m	1440	1440	1440	1440
Anvil sitting of weight	kg	600	400	200	190
Gross weight	kg	1700	1350	850	500
Appearance size	mm	1320x670x1620	1080x600x1430	950x550x1260	820x460x1110
