Product Model：

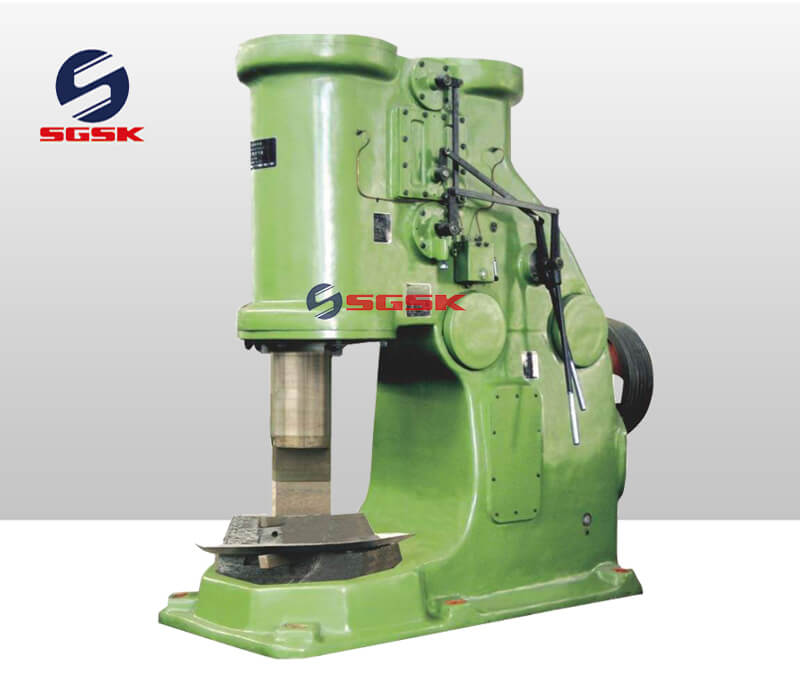

C41-75 Separate Type Air Hammer Machine

Inquire Now Next Product

Product Main Technical Parameters

Separate Type Air Hammer Machine Main Performance Characteristics：

1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage

Separate Type Air Hammer Machine Application：

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Separate Type Air Hammer Machine Main Technical Specification:

Parameter / project / model	Units	C41-75kg
Blow energy	K j	1
Height of working area	mm	300
Number of blows	min-1	210
Anvil block size	mm	145x65
Malleable square steel length	mm	65x65
Malleable circular steel length	mm	￠85
Match use of power	K w	7.5
Motor speed	r. p. m	1440
Anvil sitting of weight	kg	850
Gross weight	kg	2800
Appearance size	mm	1400x760x1950
