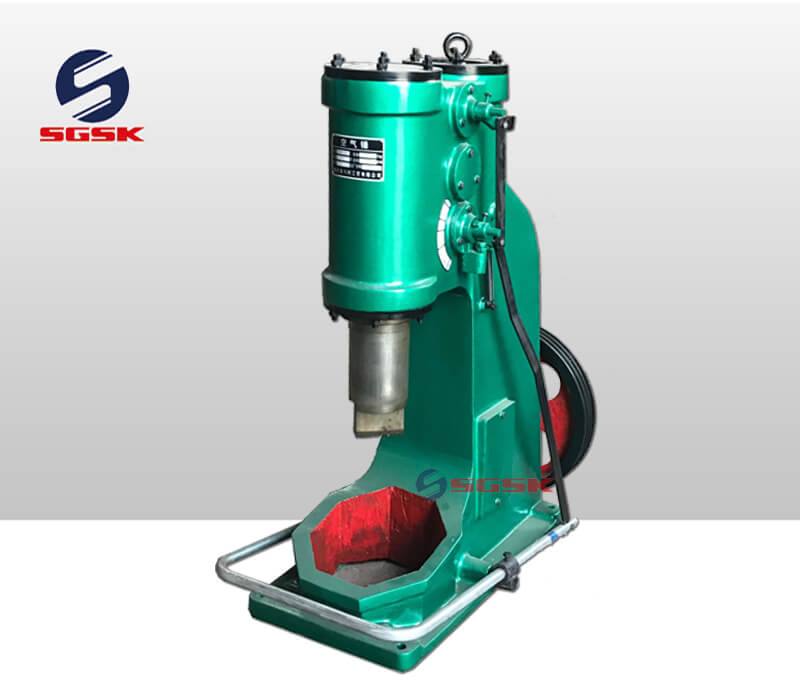

C41 Series Separate Type Air hammer Machine

Inquire Now Next Product

Product Main Technical Parameters

Separate Type Air hammer Machine Main Performance Characteristics：

1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,

2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,

3. Simple mechanism ,Is not easy to damage

Separate Type Air hammer Machine Application：

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

Separate Type Air hammer Machine Main Technical Specification:

Parameter / project / model	Units	C41-150kg	C41-75kg	C41-55kg	C41-40kg	C41-25kg	C41-20kg	C41-16kg
Blow energy	K j	2.2	1	0.7	0.53	0.27	0.22	0.18
Height of working area	mm	370	300	265	245	240	200	180
Number of blows	min-1	180	210	230	245	250	255	258
Anvil block size	mm	200 x 85	145x65	120x55	120x50	100x50	90x50	70x40
Malleable square steel length	mm	130 x 130	65x65	52x52	52x52	40x40	30x30	20x20
Malleable circular steel length	mm	￠145	￠85	￠68	￠68	￠45	￠35	￠22
Match use of power	K w	15	7.5	5.5	4	Single-phase 3/220V, Three-phase 2.2/380V	Single-phase 2.2/220, Three-phase 2.2/380	Single-phase 1.5/220, Three-phase 1.5/380
Motor speed	r. p. m	1470	1440	1440	1440	1440	1440	1440
Anvil sitting of weight	kg	1800	850	600	400	200	190	180
Gross weight	kg	5060	2800	1700	1350	850	500	240
Appearance size	mm	208012402350	1400x760x1950	1320x670x1620	1080x600x1430	950x550x1260	820x460x1110	585x390x950
