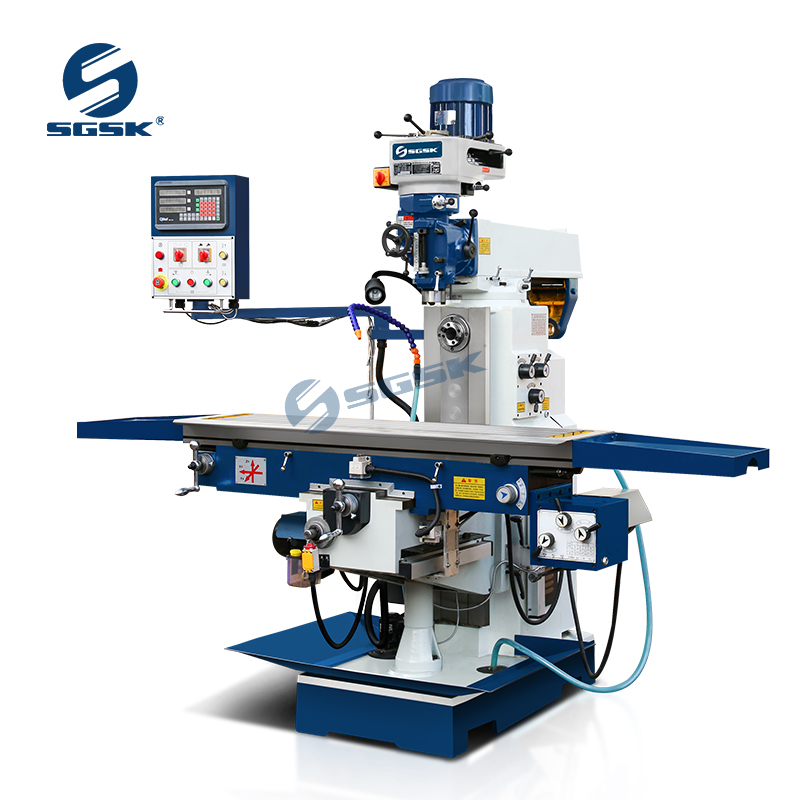

4HW Turret Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Turret Milling Machine Main Performance Characteristics：

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

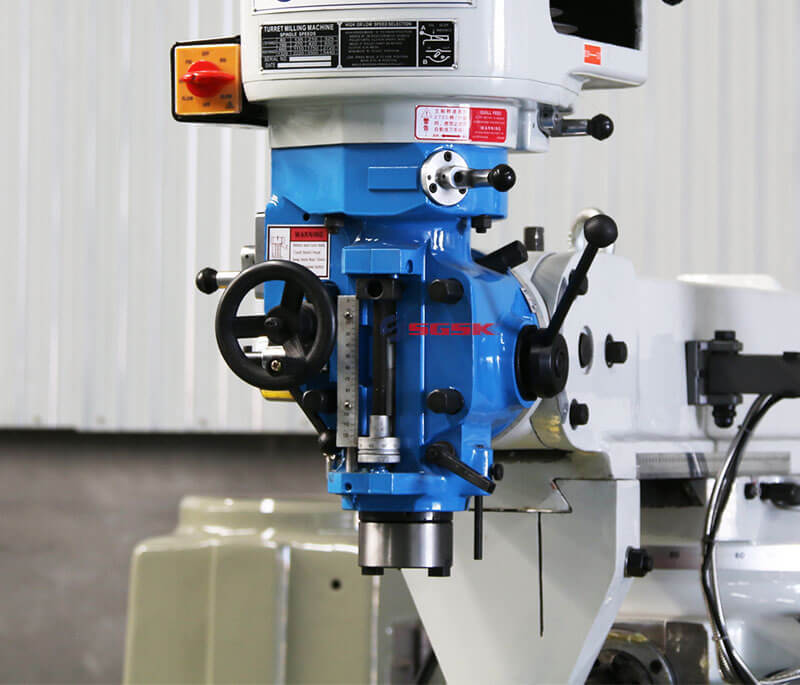

2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

5.Many parts of the machine tools have been applied for patent

Turret Milling Machine Application：

The milling machine is a kind of universal light duty metal cutting machine,

Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc..

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Turret Milling Machine Main Technical Parameters:

Specifications	Units	4HW

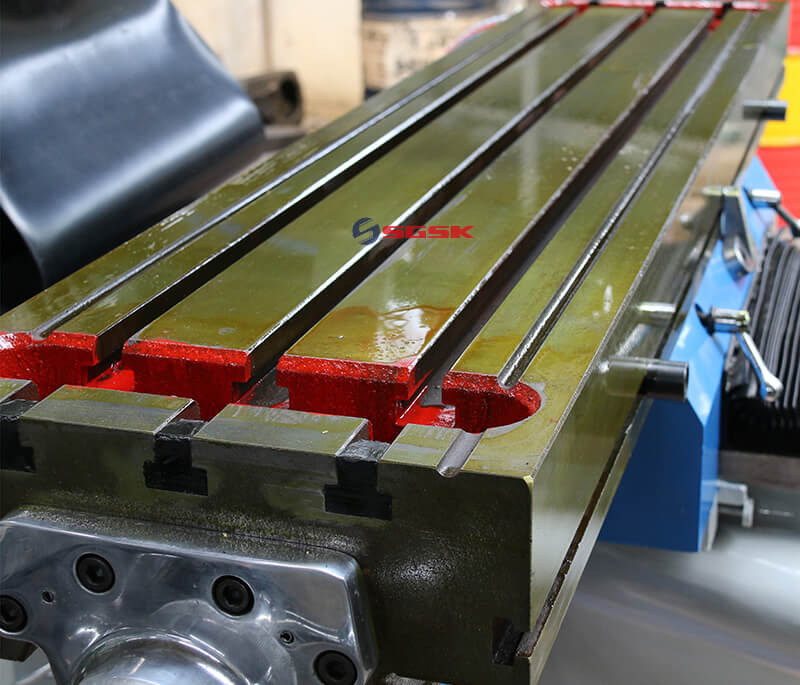

Table size	mm	1270x254
Table travel	mm	780/420/400
T slot(number-width-pitch)	mm	3-16-65
Spindle taper		(V) R8/ISO40(H) ISO40
Spindle speed range	rpm	(V) ）50HZ:65-4500 60HZ:80-5440 （16 steps）(H) 45-1350（12steps）
		(Optional) （variable）65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15(3 steps)
Distance between spindle axis and table surface	mm	0-400
Main motor power	kw	2.2(V)3(H)

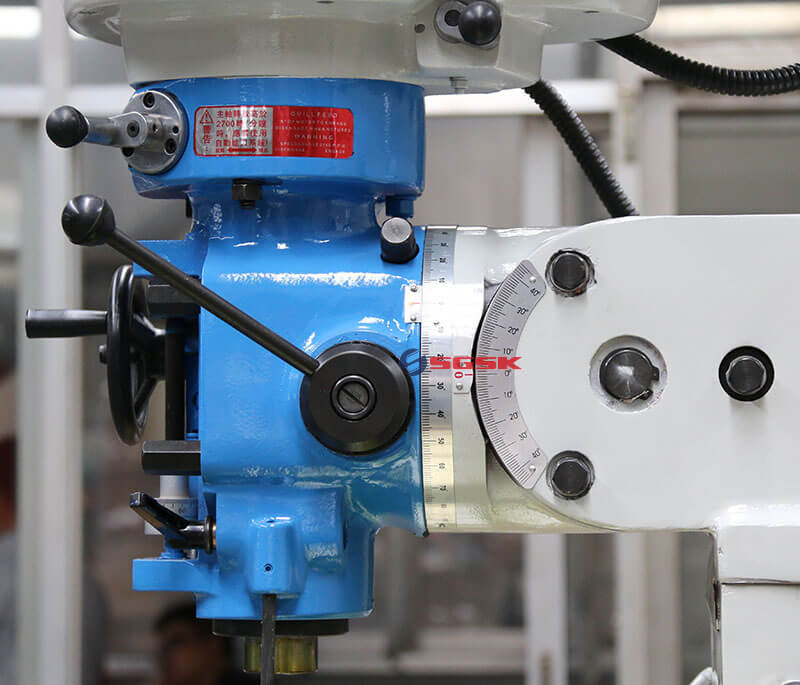

Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1750
Overall dimension	mm	1550x1650x2250
