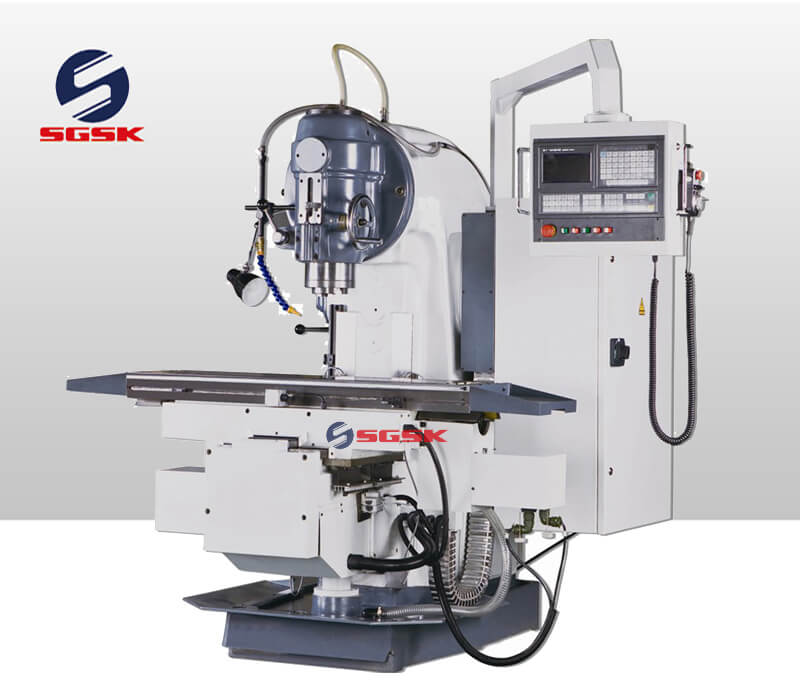

XK5040 CNC Vertical Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Vertical Milling Machine Main Performance Characteristics：

1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.

2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body，

3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed，

4. The high speed, high precision and high rigidity spindle unit，

5. The intermittent automatic lubrication.

CNC Vertical Milling Machine Application：

1. The product for the X, y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.

2. Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,

3. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.

4. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.

5. Can be petty four axis of rotation, in order to meet the special requirements of machining parts

CNC Vertical Milling Machine Main Technical Specifications:

Specifications	Units	XK5040
Table size	mm	1700x400
Table travel （X.Y.Z）	mm	920x450x350
T-type slot (numbers / width /space)	mm	3-18-90
Max. load working table	kg	500
Distance from spindle nose to table	mm	50-500
Distance from column axis to column guide way	mm	450
Rapid feed speed（X.Y.Z)	mm/min	6000/6000/3000
Feed speed X.Y（.Z)	mm/min	6-3200(3-1600)
Spindle travel	mm	85
Spindle taper		ISO50(7:24)
Max. 5revolving angle of vertical milling head	°	±45°
Spindle speed range	rpm	30-1500(18 steps)
Spindle motor power	KW	11
Longitudinal, transverse feed motor torque(X.Y)	N. m	12
Vertical feed motor torque (Z)	N. m	22
Max. spindle torque	N. m	1000
Overall dimensions（Lx W x H）	mm	2400x2200x2400
Machine weight	Kg	3850
