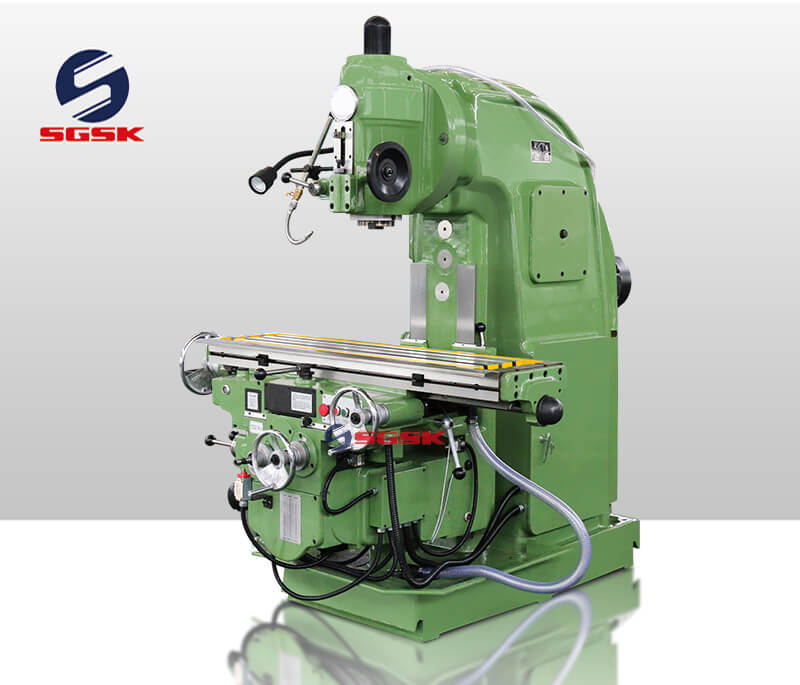

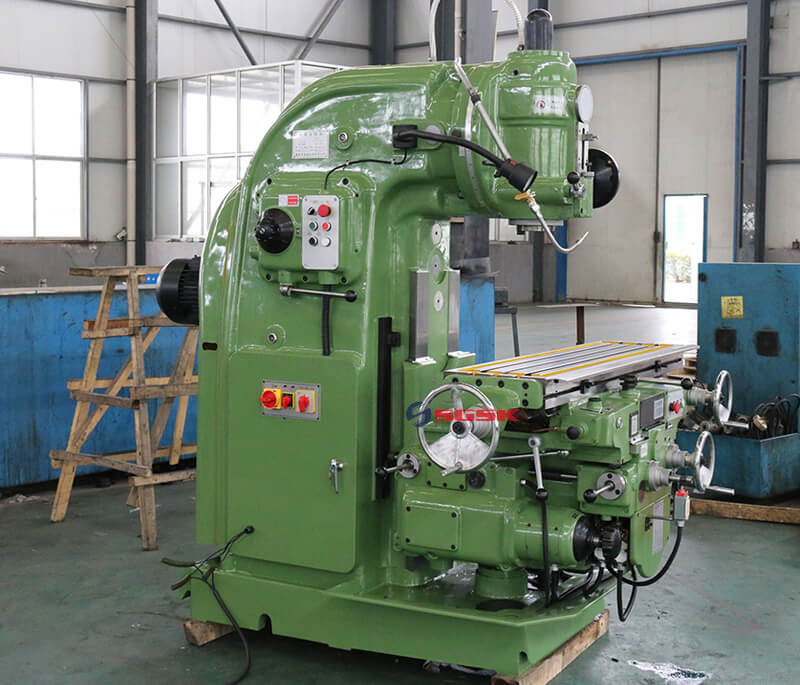

X5032/X5032B/X5032BH Vertical Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Vertical Milling Machine Main Performance Characteristics：

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

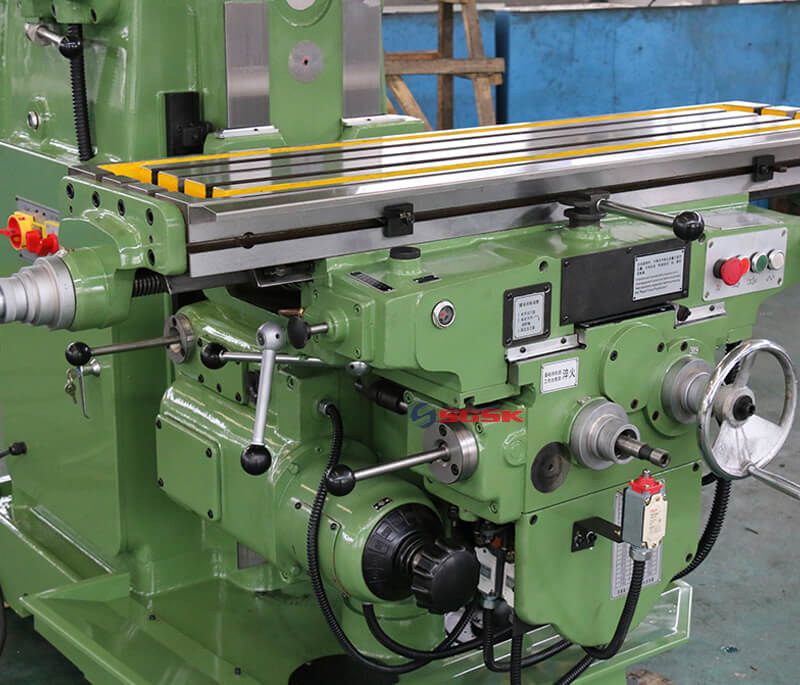

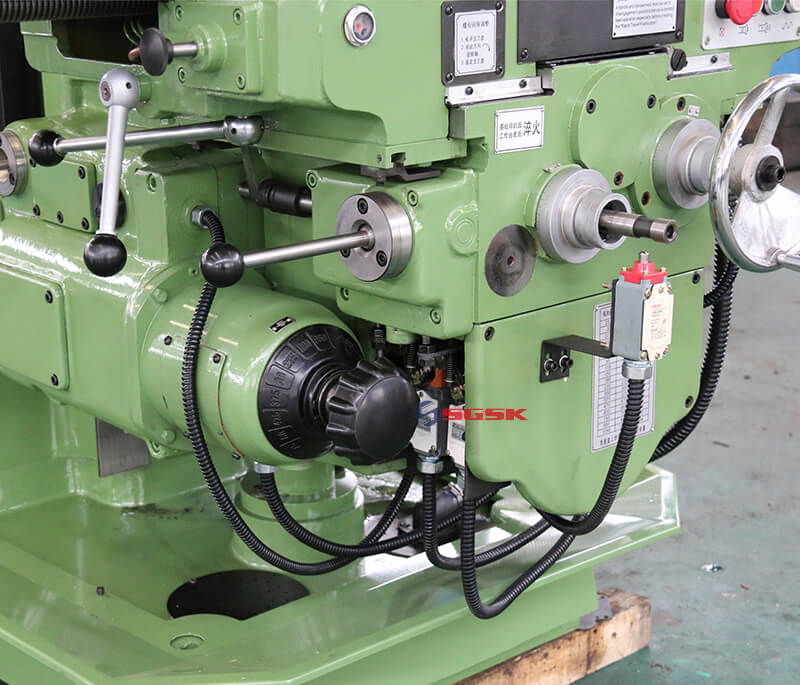

3. Work bench X. Y.Z are gear drive automatic feed and manual operation

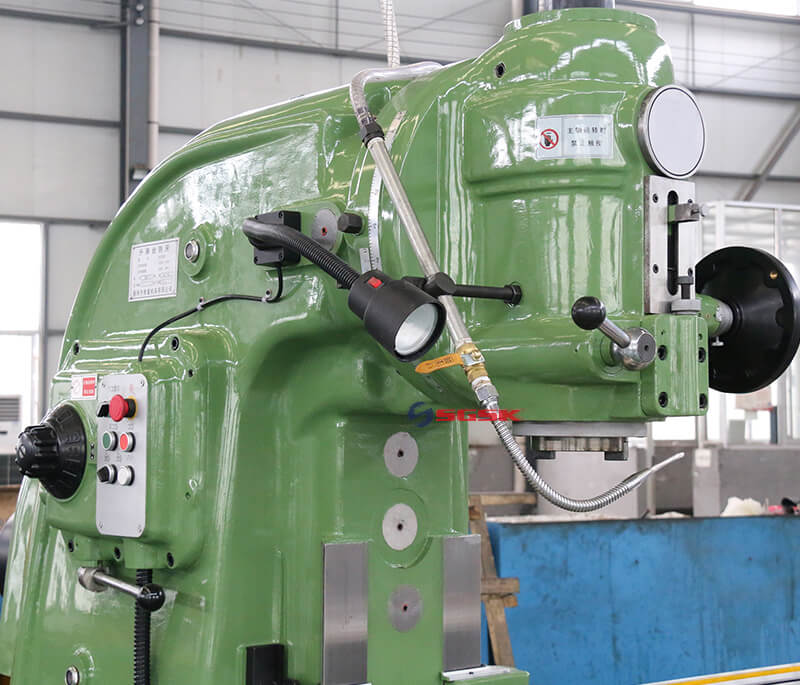

4. Milling head can be rotated 45 degrees,

Vertical Milling Machine Application：

1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Vertical Milling Machine main technical parameters:

Specifications	Units	X5032	X5032B	X5032BH
Table size	mm	1325×320	1600x320	1600x320
Table load	kg	500	500	500
T slot(number-width-pitch)	mm	3-18-70	3-18-70	3-18-70
Table travel	mm	700/680255/240 370/350	900/880255/240370/350	900/880255/240460/440
Range of table feed	mm /min	XY:23.5-1180Z:8-394	XY:23.5-1180Z:8-394	XY:23.5-1180Z:8-394
Rapid speed of table	mm /min	XY:2300Z:770	XY:2300Z:770	XY:2300Z:770
Spindle taper		ISO50 7:24	ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)	30-1500 (18 steps)	30-1500 (18 steps)
Swivel angle of vertical milling head	°	±45	±45	±45
Distance between spindle nose and table surface	mm	45-415	45-415	45-490
Spindle motor power	kw	7.5	7.5	7.5
Feed motor power	kw	1.5	1.5	1.5
Weight	kg	2900/3200	3000/3300	3100/3400
Overall dimension	mm	2300×1770×2000	2600×1770×2000	2600×1770×2200
