Product Model：

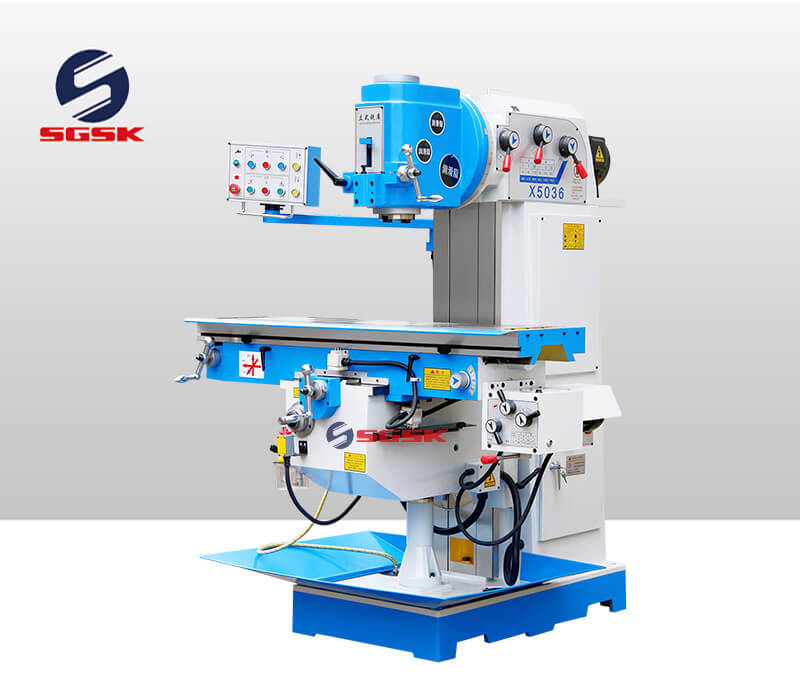

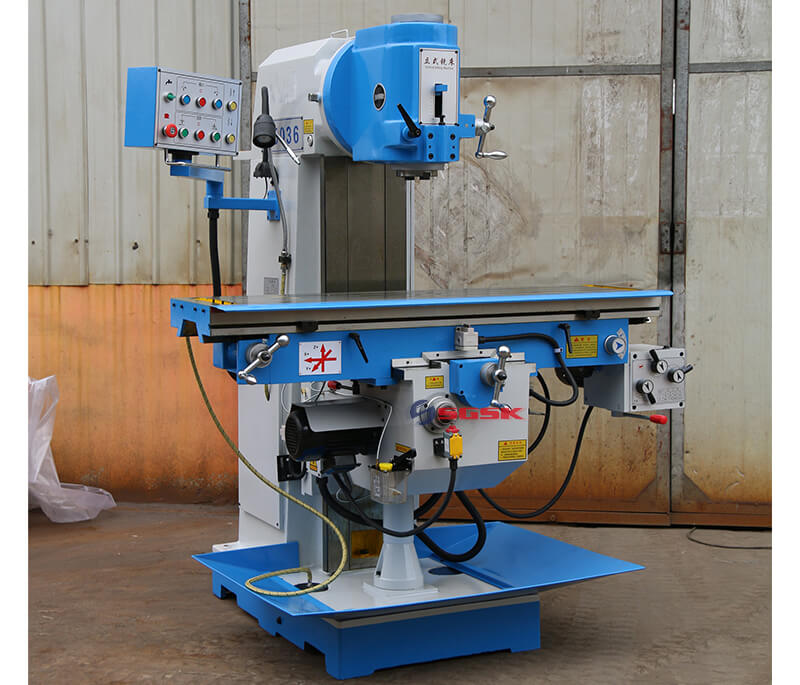

X5036B X5036B-1 Vertical Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Vertical Milling Machine Main Characteristics：

1. The use of the moment type of rail steel is good, strong stability

2. High frequency quenching of working table and guide surface

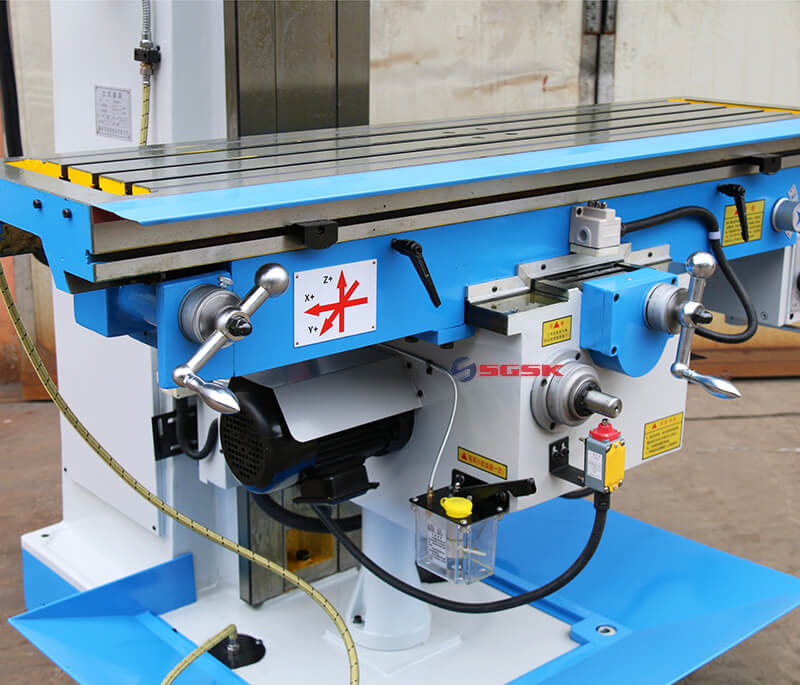

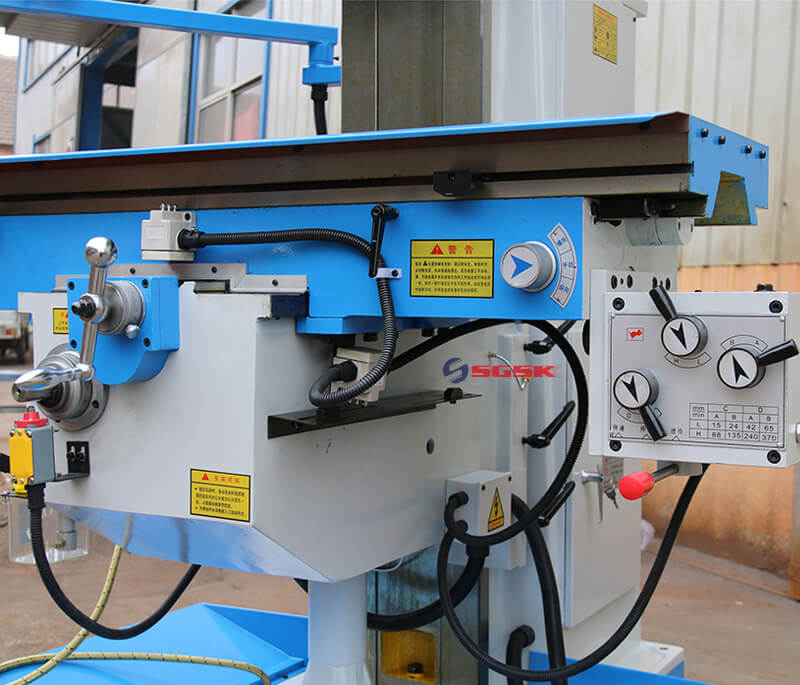

3. Working table Y, X are both gear drive automatic feed, Z for electric lift

4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability

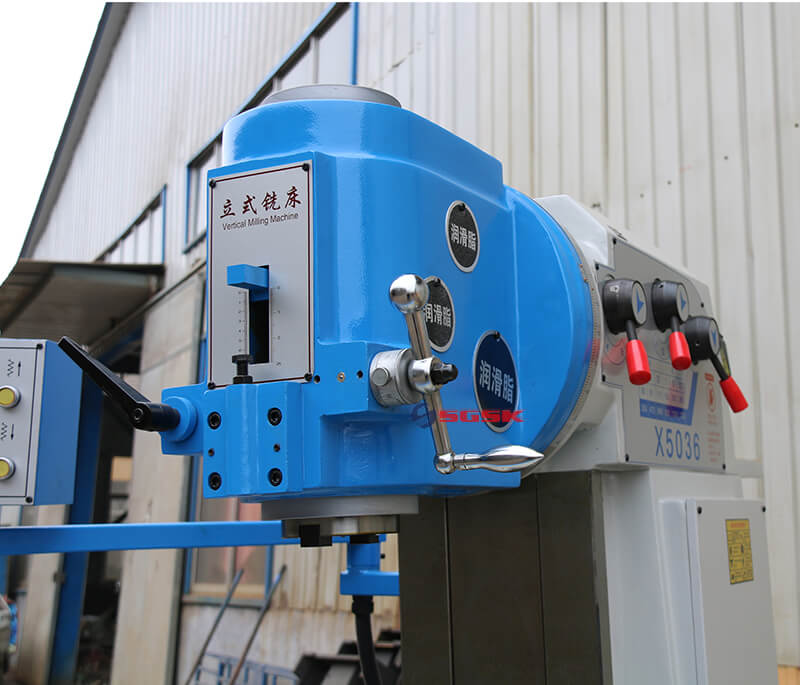

5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm

Vertical Milling Machine Optional:

X travel:1000 mm

Dividing head

Rotary table

Clamping kits

DRO

Tools

Vertical Milling Machine Main Specifications:

Specifications	Units	X5036B	X5036B-1
Table size	mm	1500×360	1500×360
Table travel	mm	800/320/450	1000/320/450
T slot(number-width-pitch)	mm	3-18-80	3-18-80
Spindle taper		ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	60-1700(12steps)	60-1700(12steps)
Distance between spindle nose and table surface	mm	60-540	60-540
Distance between spindle axis to column surface	mm	360	360
Main motor power	kw	4	4
Weight	kg	2700	2700
Overall dimension	mm	2600×2200×2220	2600×2200×2220
