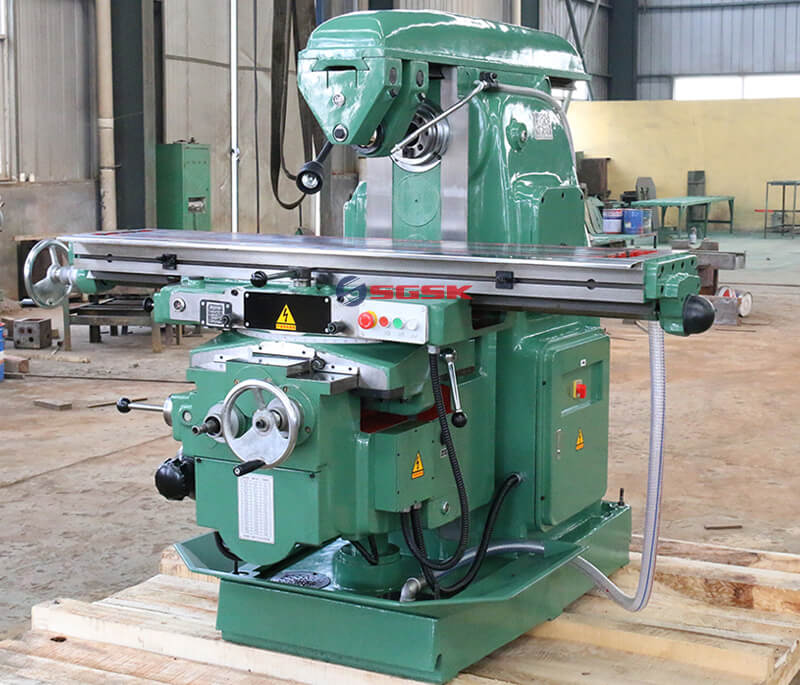

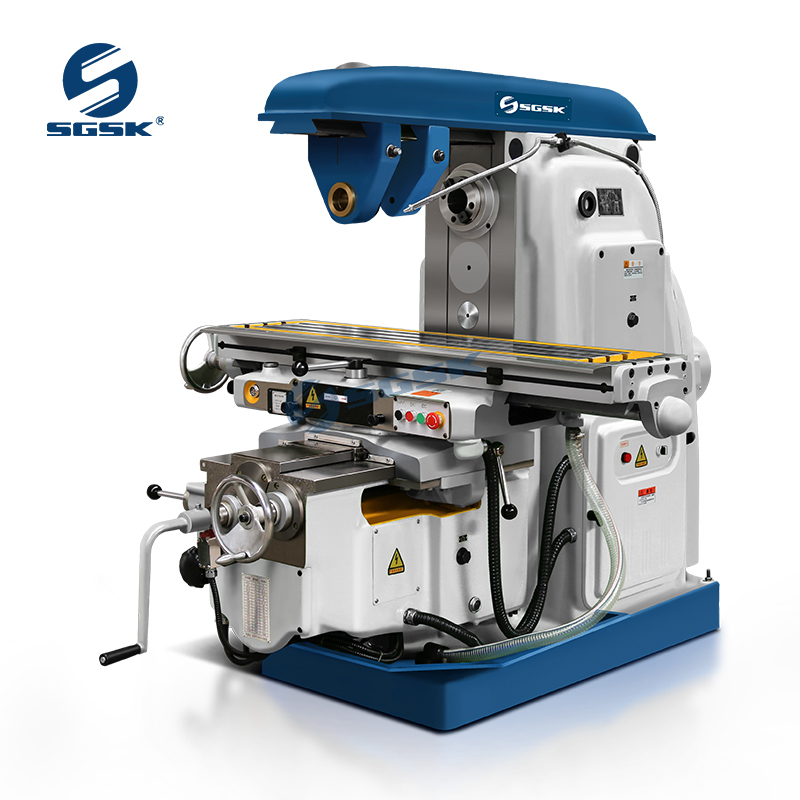

X6132 Horizontal Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Horizontal Milling Machine Main Performance Characteristics：

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

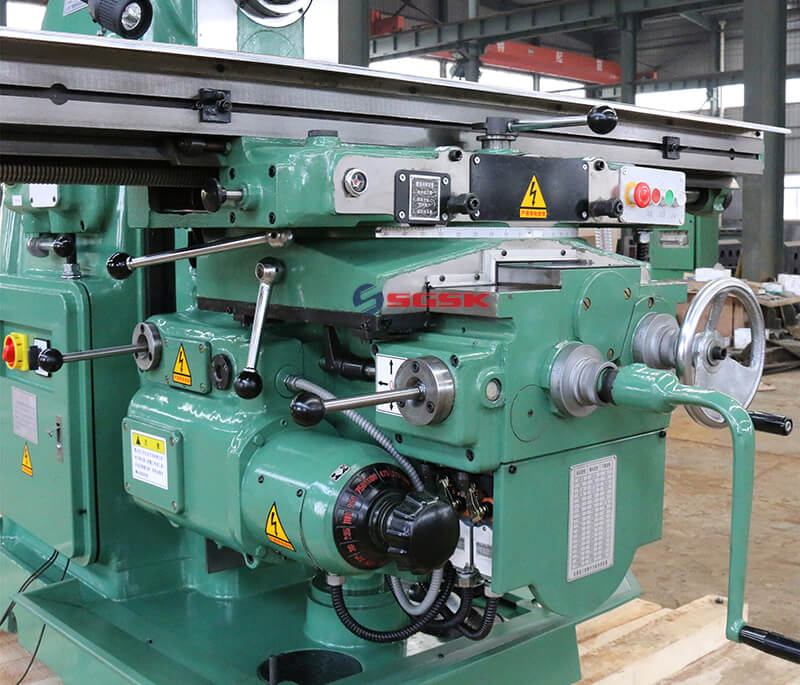

3. Work bench X. Y.Z are gear drive automatic feed and manual operation

Horizontal Milling Machine Application：

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.

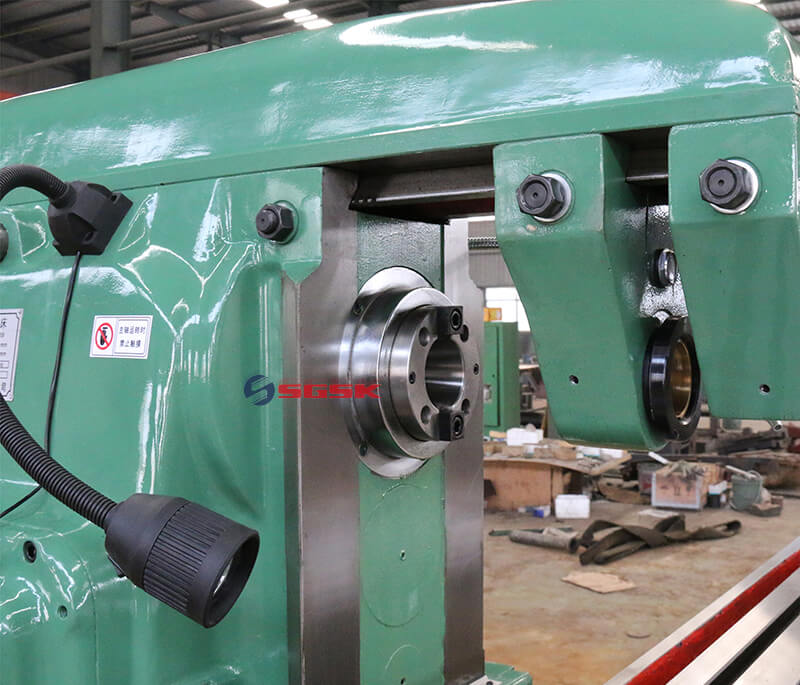

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Horizontal Milling Machine Main Technical Parameters:

Specifications	Units	X6132	X6132B	X6132BH
Table size	mm	1325x320	1600x320	1600x320
Table load	kg	500	500	500

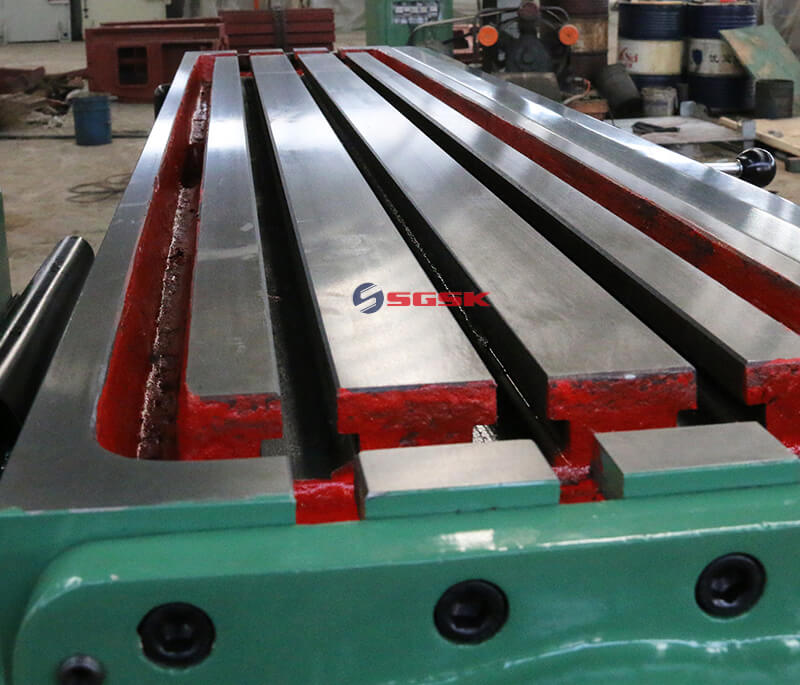

T slot(number-width-pitch)	mm	3-18-70	3-18-70	3-18-70
Table travel	mm	700/680 255/240320/300	900/880255/240 320/300	900/880255/240410/390
Range of table feed	mm /min	XY:23.5-1180Z:8-394	XY:23.5-1180Z:8-394	XY:23.5-1180Z:8-394
Rapid speed of table	mm /min	XY:2300Z:770	XY:2300Z:770	XY:2300Z:770
Spindle taper		ISO50 7:24	ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)	30-1500 (18 steps)	30-1500 (18 steps)
Swivel angle of table	°	±45	±45	±45
Distance between spindle axis and table surface	mm	30-350	30-350	30-440
Spindle motor power	kw	7.5	7.5	7.5
Feed motor power	kw	1.5	1.5	1.5
Weight	kg	2700/3000	2800/3100	2900/3200
Overall dimension	mm	2300×1770×1700	2600×1770×1700	2600×1770×1900
