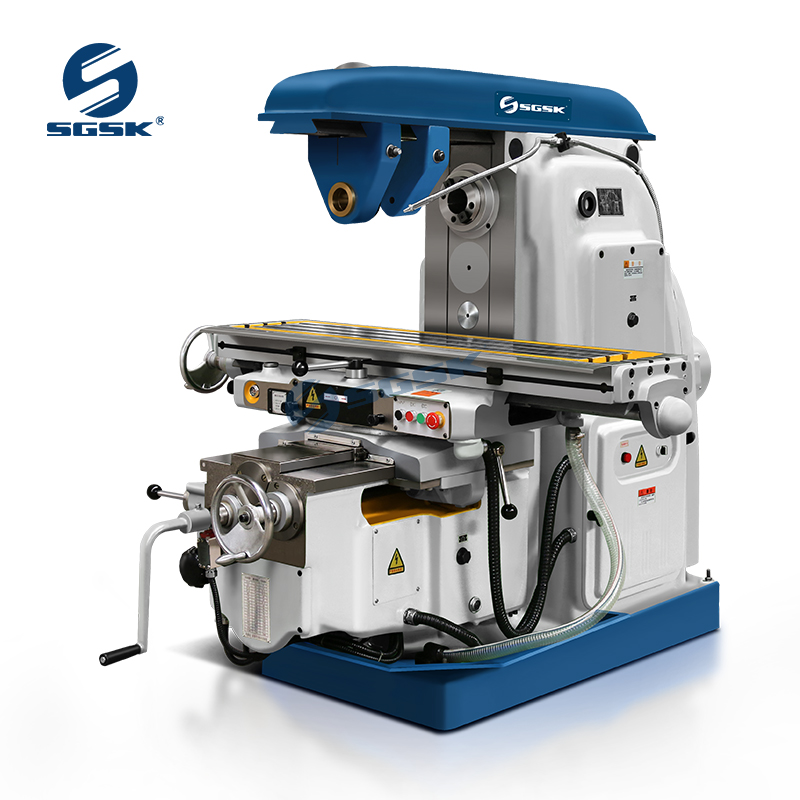

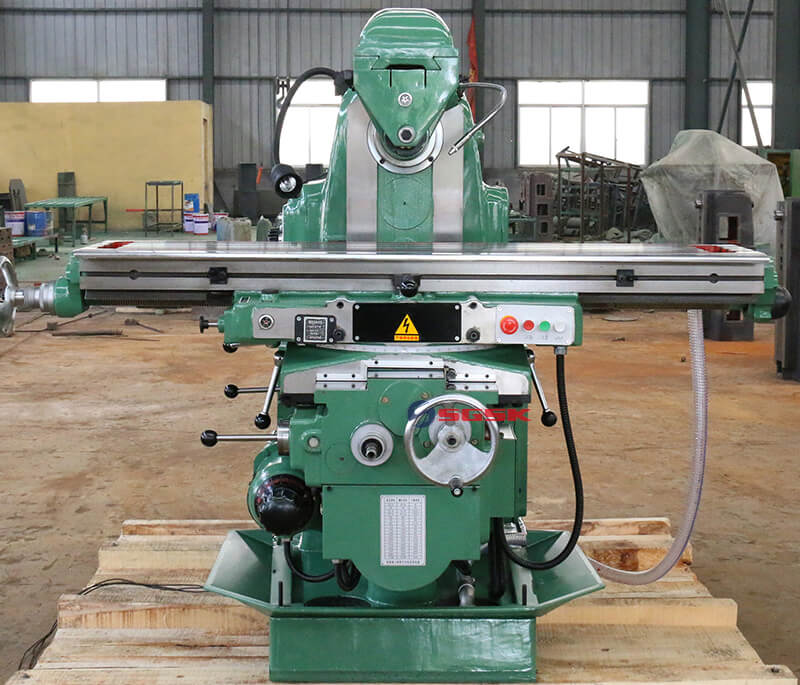

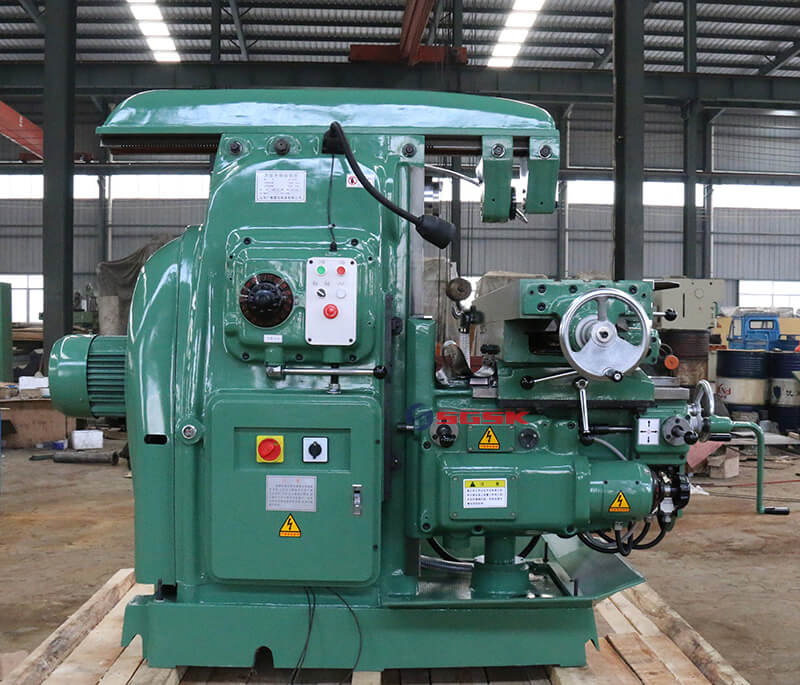

X6150 Horizontal Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Horizontal Milling Machine Main Performance Characteristics：

1. Using rectangular guide machine is Rigid good,

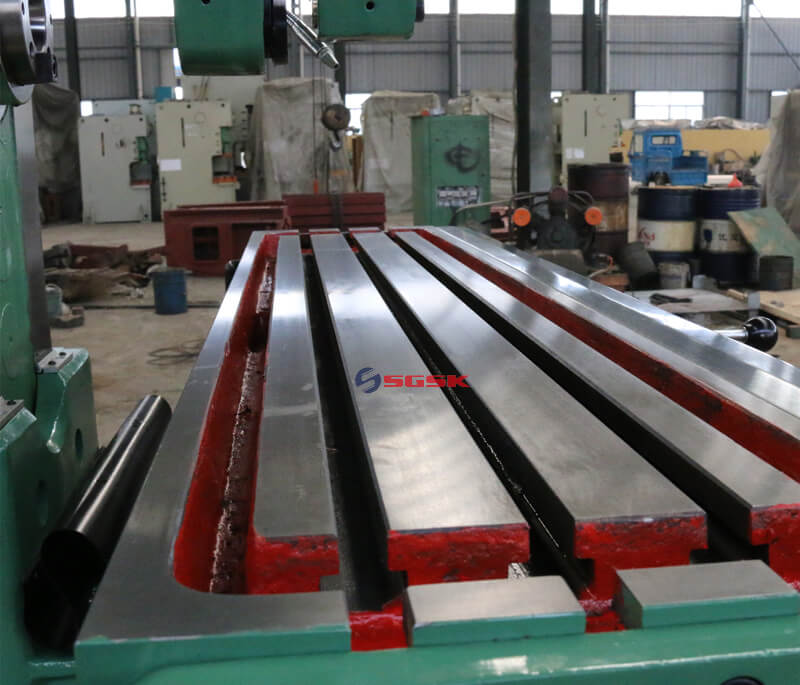

2. Work table and guide rail through the ultra audio spark quenching.

3. Work bench X. Y.Z are gear drive automatic feed and manual operation

Horizontal Milling Machine Application：

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.

3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

X6150 Horizontal Milling Machine main technical specifications:

Specifications	Units	X6150
Table size	mm	2000x500
T-type slot numbers / width /space	mm	5-18-80
Max. load of table	kg	1500
Longitudinal travel (manual/auto)	mm	1530/1520
Transverse travel(manual/auto)	mm	360/345
Vertical travel (manual/auto)	mm	630/610
Cutting feed speed	mm/min	X.Z:16-800.Y:5-250
Rapid feed speed	mm/min	X.Z:3000.Y:1000.
Distance from spindle axis to table surface	mm	45-1800
Spindle speed step	steps	17
Spindle speed range	rpm	10-640
Spindle motor power	KW	15
Overall dimensions	mm	2250x3200x2100
Machine weight	Kg	4600
