Product Main Technical Parameters

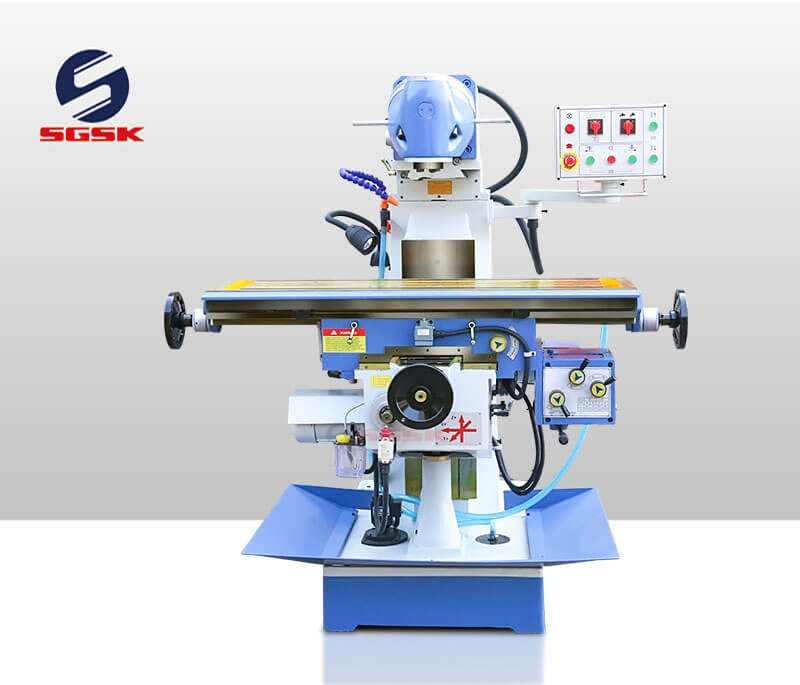

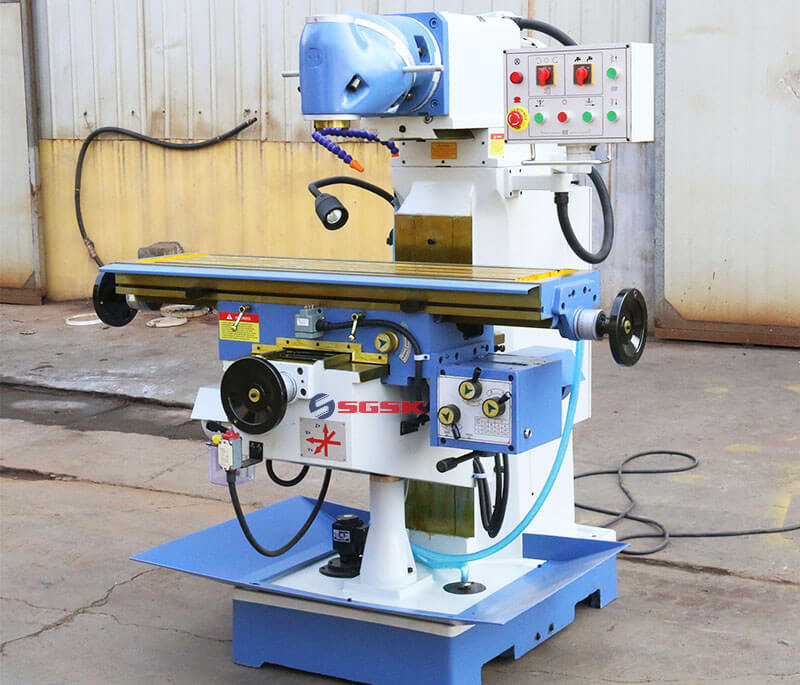

Swivel Head Milling Machine main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two grade rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing mold and shell;

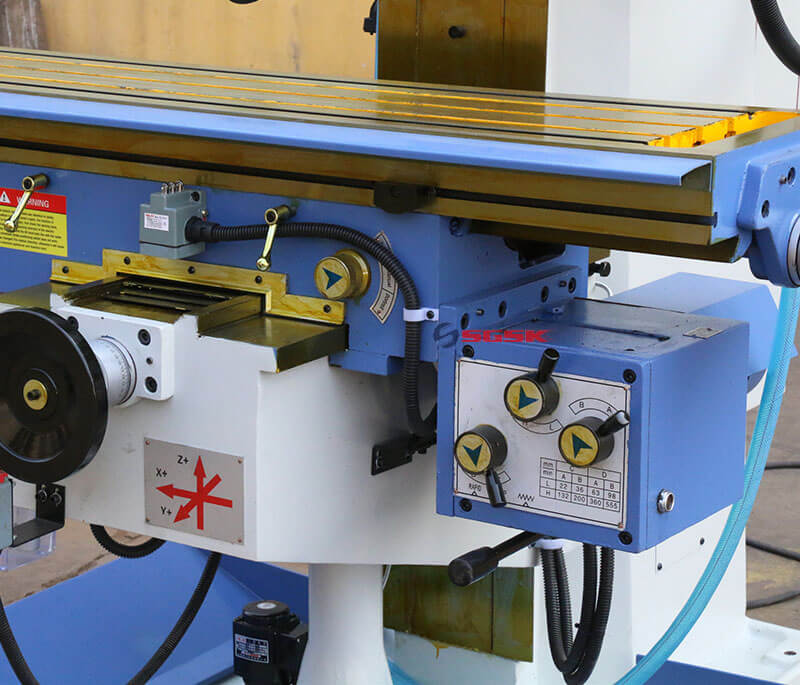

4.Table X,Y axis motorized feed
Swivel Head Milling Machine main technical parameters:
Specifications | Units | X6232 |
Table size | mm | 1370x320 |
Table travel | mm | 800/320/400 |
T-slot numbers / width /space | mm | 3-16-60 |
Spindle taper | ISO40 | |
Spindle speed range | rpm | 48-1660rpm |
Distance between spindle nose and table surface | mm | 120-520 |
Distance between spindle axis and table surface | mm | 0-400 |
Range of table feed | mm/min | XY:22-555 Z:electric |

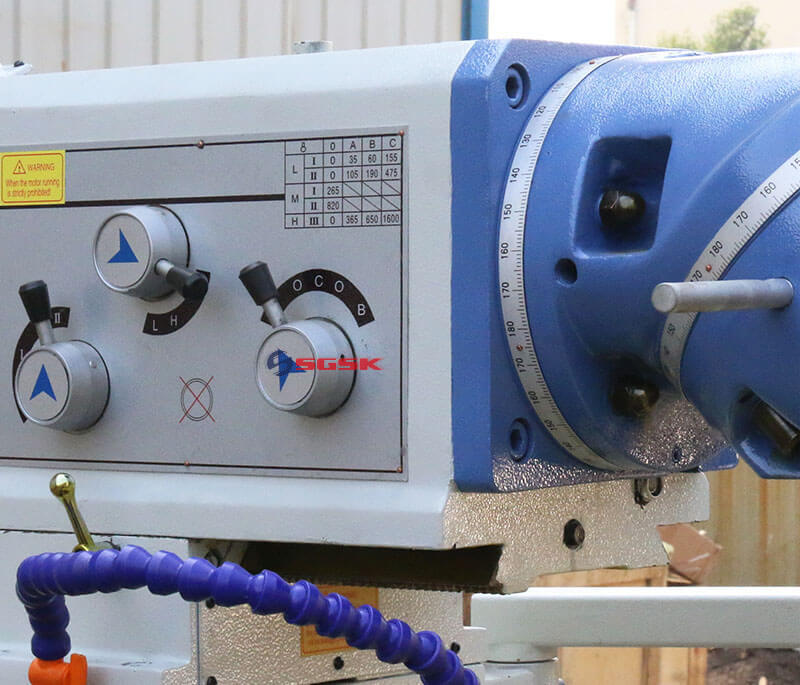

Milling head swivel range | ° | 360 |
Spindle motor power | kw | 3 |
Feed motor power | kw | 1.1 |
Weight | kg | 1700 |
Overall dimension | mm | 1700x1560x1750 |
