Product Main Technical Parameters

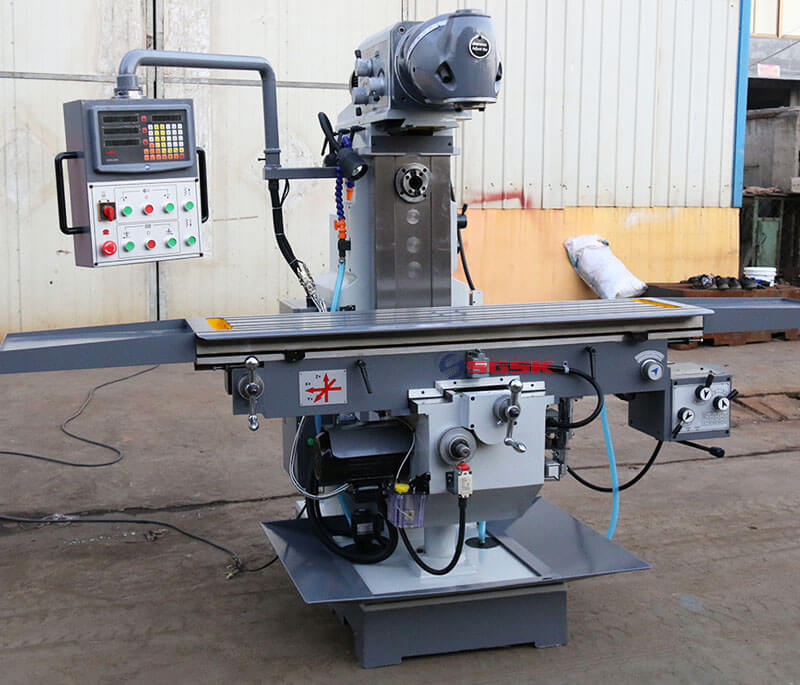

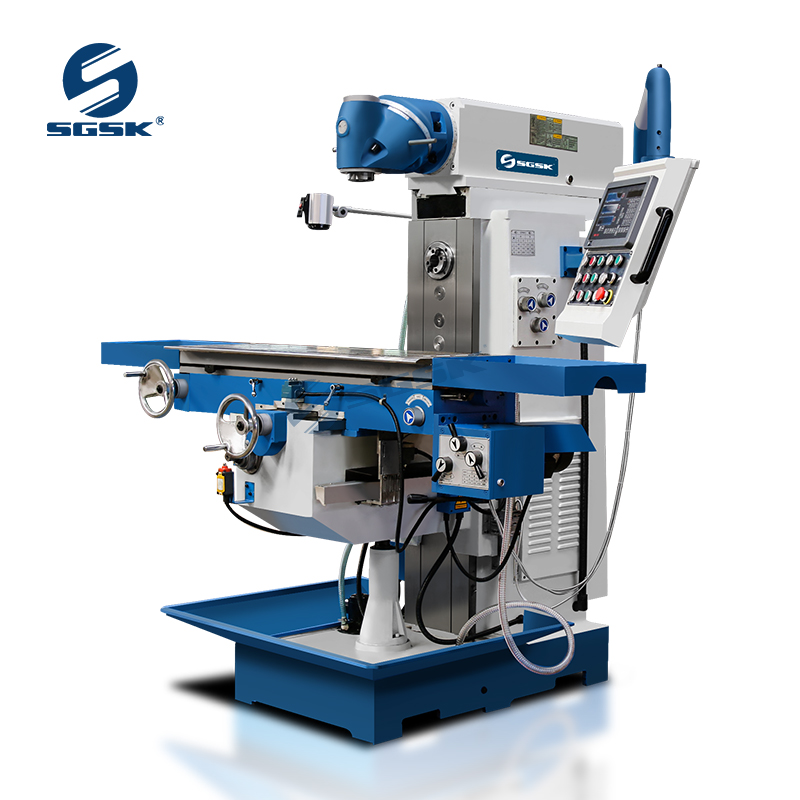

Swivel Head Milling Machine main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;

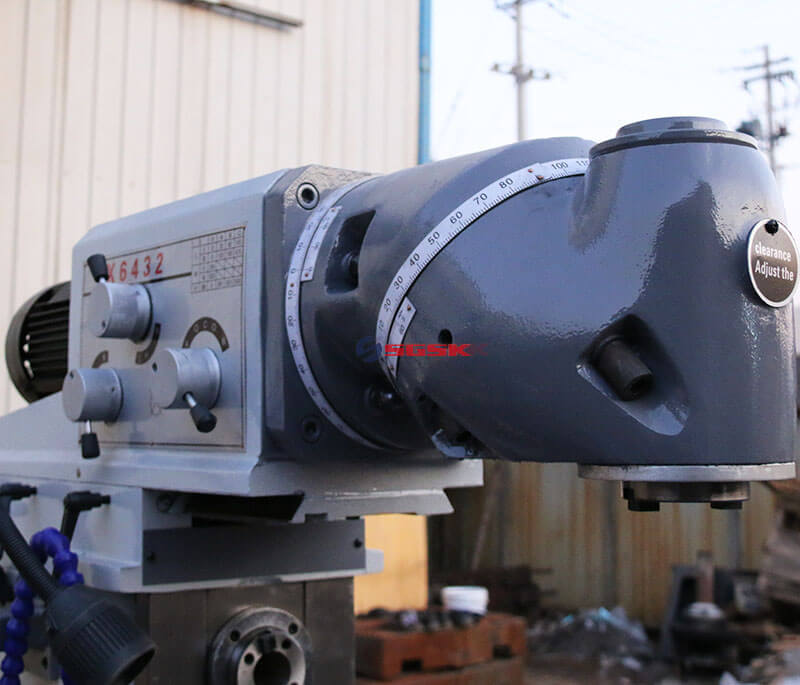

2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;

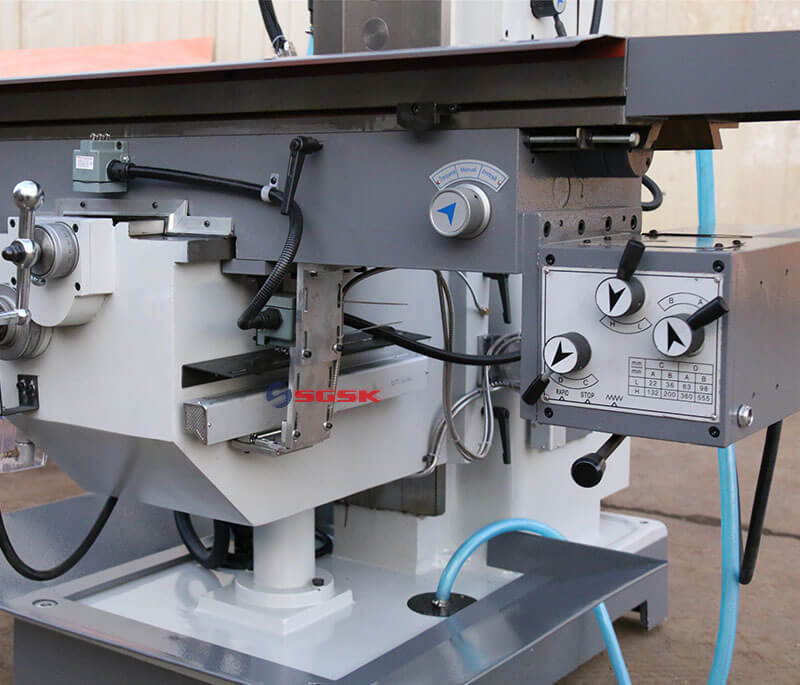

4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Swivel Head Milling Machine Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Swivel Head Milling Machine main technical parameters:
Specifications | Units | X6432 | X6436 |

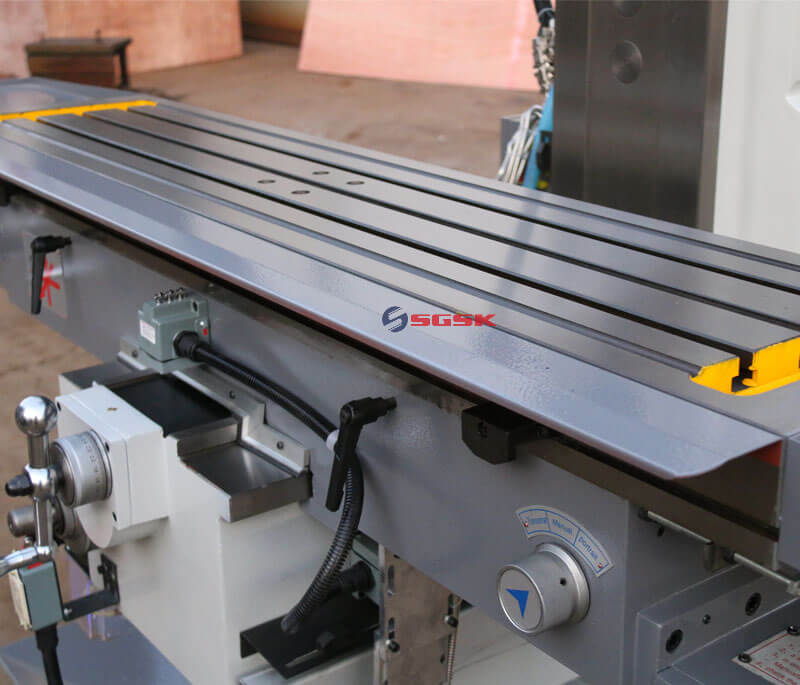

Table size | mm | 1500x320 | 1500x3600 |
Table travel | mm | 1000/320/400 | 1000/320/450 |
T-slot numbers / width /space | mm | 3-16-60 | 3-18-80 |
Spindle taper | ISO40(V)ISO40(H) | ISO40(V)ISO50(H) | |
Spindle speed range | rpm | 48-1660rpm(V)40-1300(H) | 48-1660rpm(V)40-1300(H)) |
Distance between spindle nose and table surface | mm | 120-520 | 150-550 |
Distance between spindle axis and table surface | mm | 0-400 | 0-400 |
Range of table feed | mm/min | XY:22-555Z:electric | XY:22-555Z:electric |
Milling head swivel range | ° | 360 | 360 |
Spindle motor power | kw | 3(V)/3(H) | 4(H)/4(H) |
Feed motor power | kw | 1.1 | 1.1 |
Weight | kg | 2100 | 2580 |
Overall dimension | mm | 2050x1750x2000 | 2550x2050x2050 |
