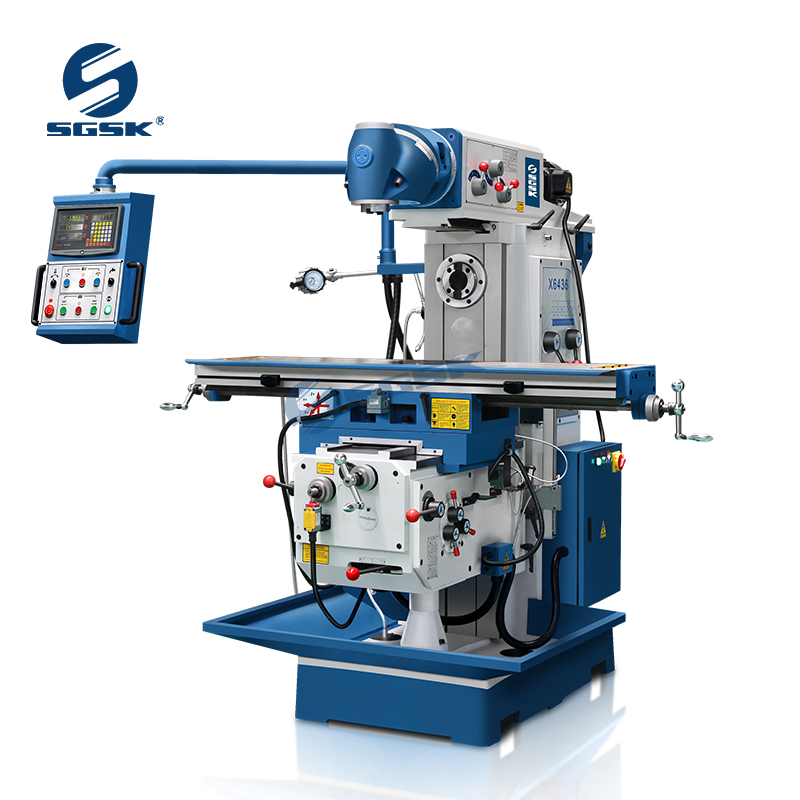

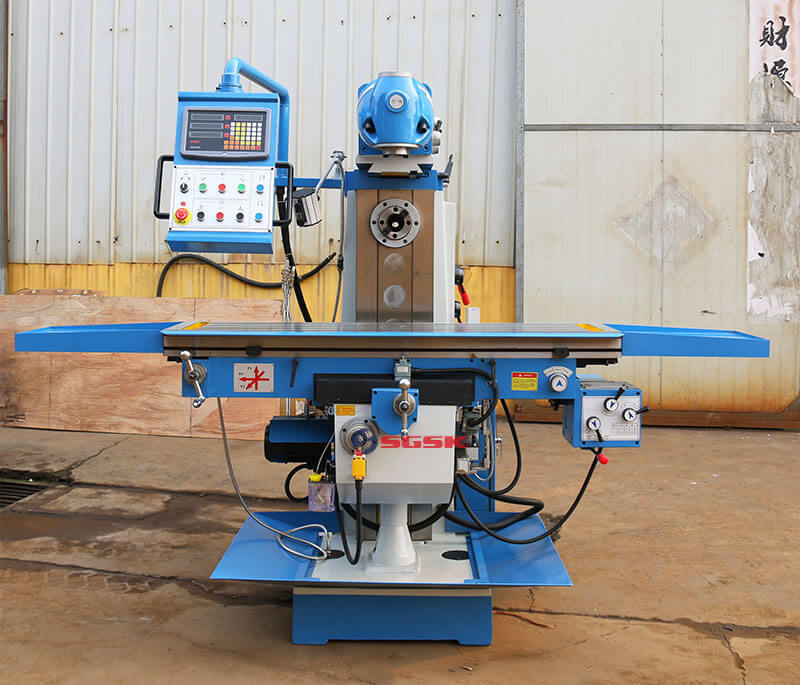

X6436 Swivel Head Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Swivel Head Milling Machine main performance characteristics：

1.It can realize vertical and horizontal milling two processing function;

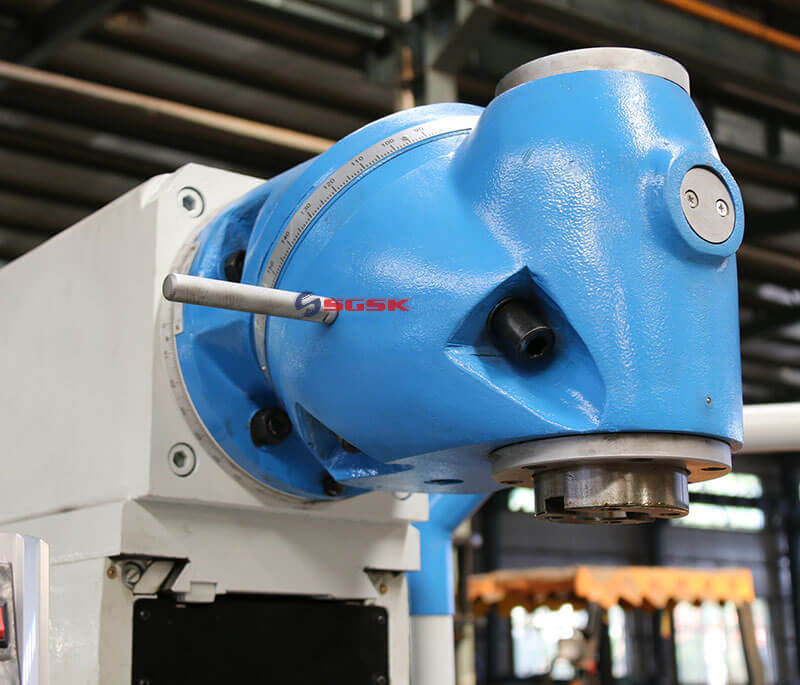

2.The two rotary milling head, spindle at any angle rotating and adjustment;

3.Can be used for processing and mold shell;

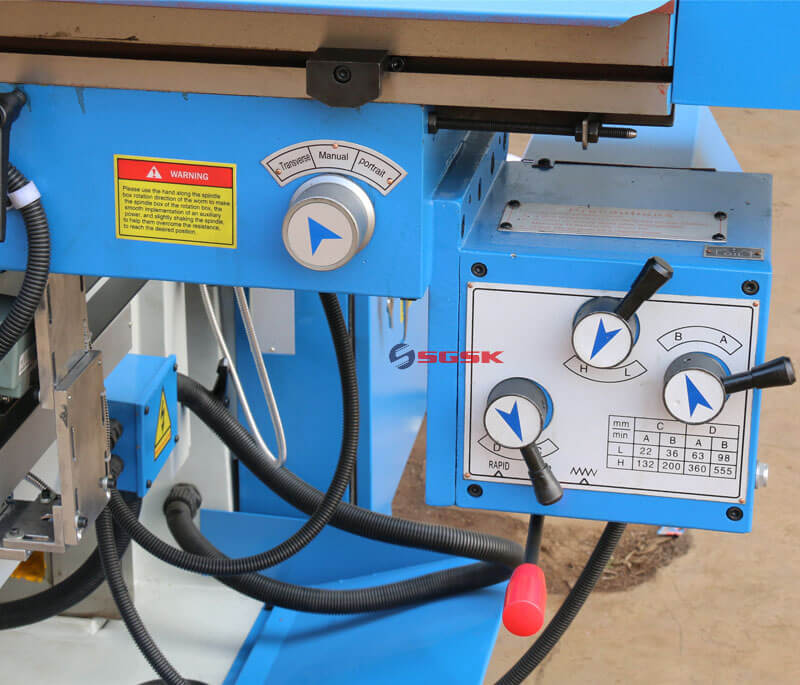

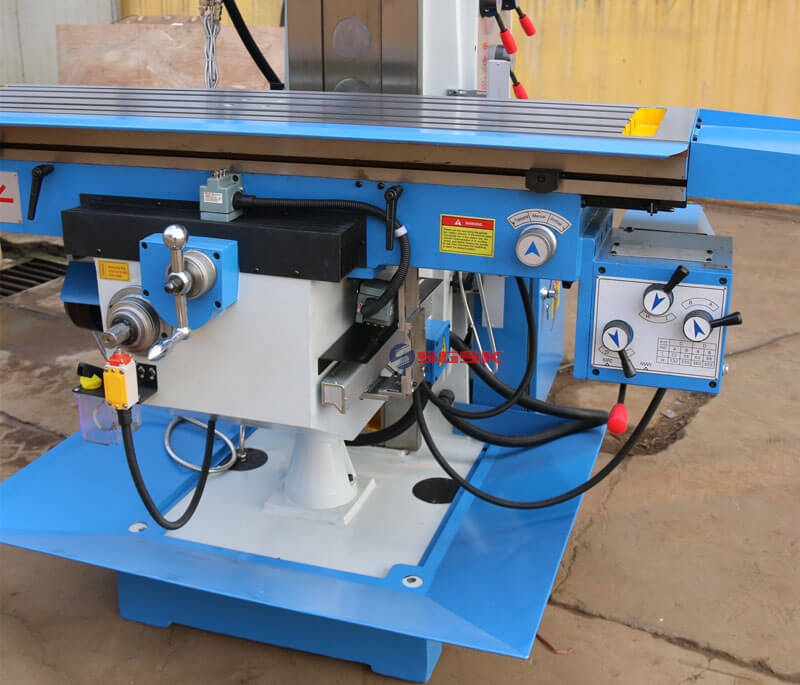

4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.

5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

Swivel Head Milling Machine Application：

Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

X6436 Swivel Head Milling Machinemain Technical Parameters:

Specifications	Units	X6436
Table size	mm	1500x360
Table travel	mm	1000/320/450
T-slot numbers / width /space	mm	3-18-80
Spindle taper		ISO40(V)ISO50(H)
Spindle speed range	rpm	48-1660rpm(V)40-1300(H))
Distance between spindle nose and table surface	mm	150-550
Distance between spindle axis and table surface	mm	0-400
Range of table feed	mm /min	XY:22-555Z:electric
Milling head swivel range	°	360
Spindle motor power	kw	4(H)/4(H)
Feed motor power	kw	1.1
Weight	kg	2580
Overall dimension	mm	2550x2050x2050
