Product Main Technical Parameters

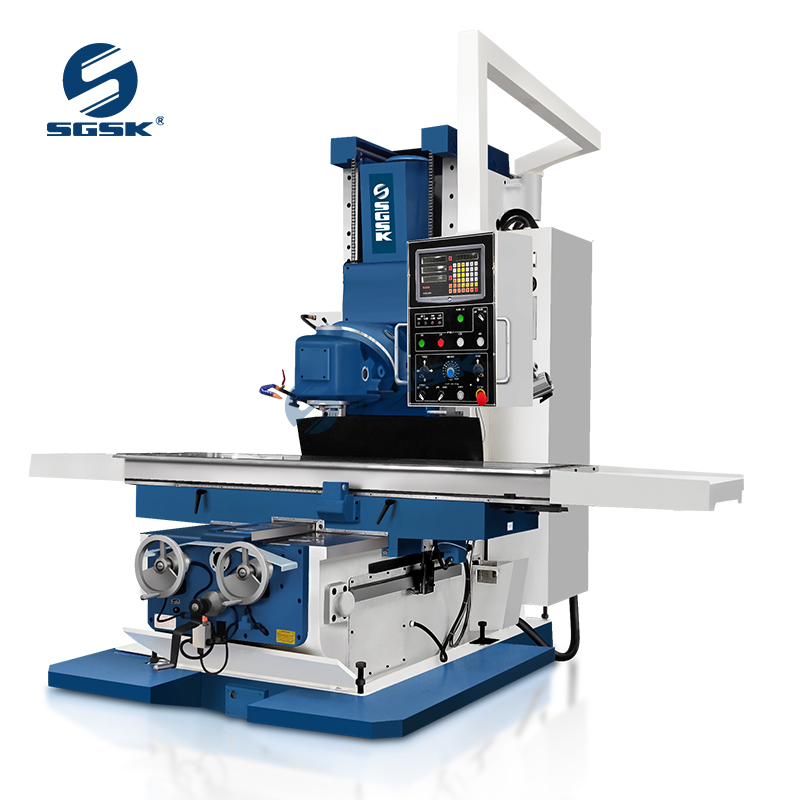

Bed Type Milling Machine main performance characteristics:
X715 have advanced design, high bearing capacity, processing range wide, good rigidity, strong stability, vertical and horizontal milling can easily switch, convenient operation, to adapt to the in the ultra precision machining of large type parts.
Bed Type Milling Machine Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Bed Type Milling Machine main technical Specifications:
Specifications | Units | X715 |
Table size | mm | 2100x500 |
Table stroke(X.Y) | mm | 1500x670 |
Vertical travel of headstock | mm | 0-670 |
T-type slot numbers / width /space | mm | 4-20--100 |
Max. load working table | KG | 2000 |
Feed speed | mm/min | 20-1800 |
Rapid feed speed | mm/min | 3500 |
Spindle speed range | rpm | 35-1345 |
Spindle speed step | steps | 12 |
Spindle taper | ISO50 | |
Distance from spindle axis to column guide way | mm | 610 |
Spindle motor power | KW | 7.5 |
Overall dimensions | mm | 3300x2380x2750 |
Machine weight | KG | 7300 |
