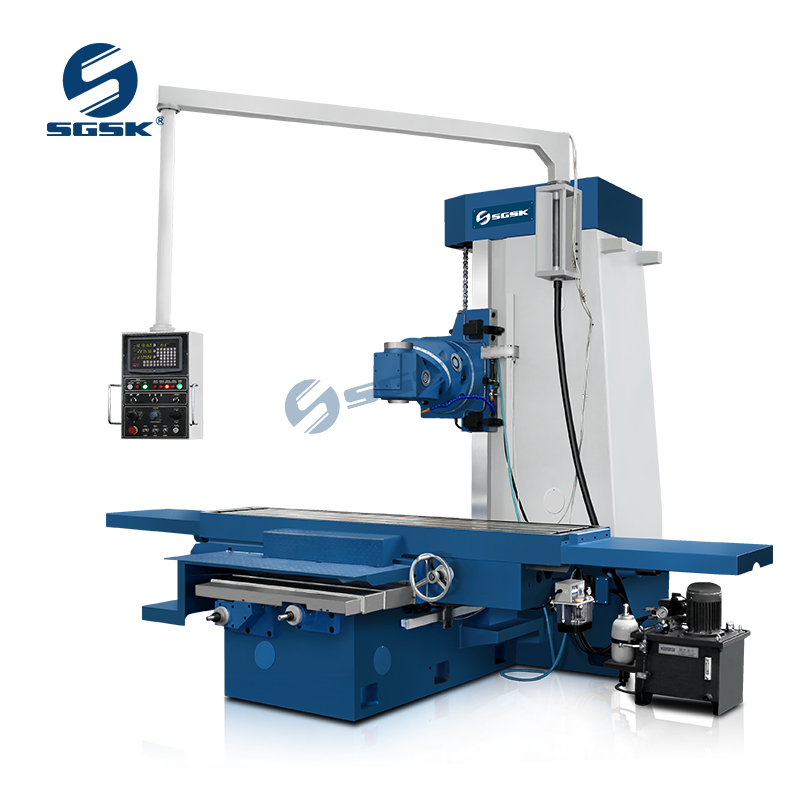

X716-Bed Type Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Bed Type Milling Machine main performance characteristics：

X716 and South Korea Co., Ltd. Co production, advanced design, high bearing capacity, processing range wide, good rigidity, strong stability, vertical and horizontal milling can easily switch, convenient operation, to adapt to the in the ultra precision machining of large type parts.

Bed Type Milling Machine Application：

This machine is a kind of general metal cutting machine tool.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Bed Type Milling Machine main technical Specifications:

Specifications	Units	X716
Table size	mm	2500x575
Table stroke（X.Y.Z）	mm	1800x600x900
Min. distance from hor. Spindle axis to worktable surface	mm	0300
Min. distance from vertical spindle nose to worktable surface	mm	49
Distance from vertical spindle axis to column guide way	mm	110
T-type slot numbers / width /space	mm	3-22-152
Max. load working table	KG	3000
Spindle taper		ISO50
Longitudinal. transverse feed speed range	mm/min	20-2200
Rapid feed speed (X.Y)	mm/min	3000
Rapid feed speed(Z)	mm/min	1800
Feed speed range	mm/min	12-1320
Spindle speed range	rpm	40-1200
Spindle speed steps	steps	12
Spindle motor power	KW	11
Overall dimensions	mm	4300x3200x3300
Machine weight	KG	10000
