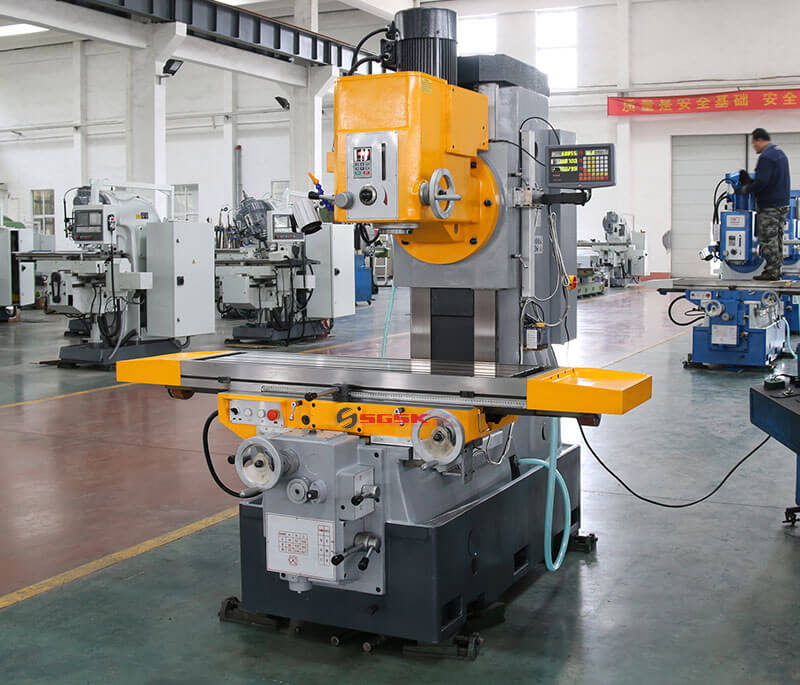

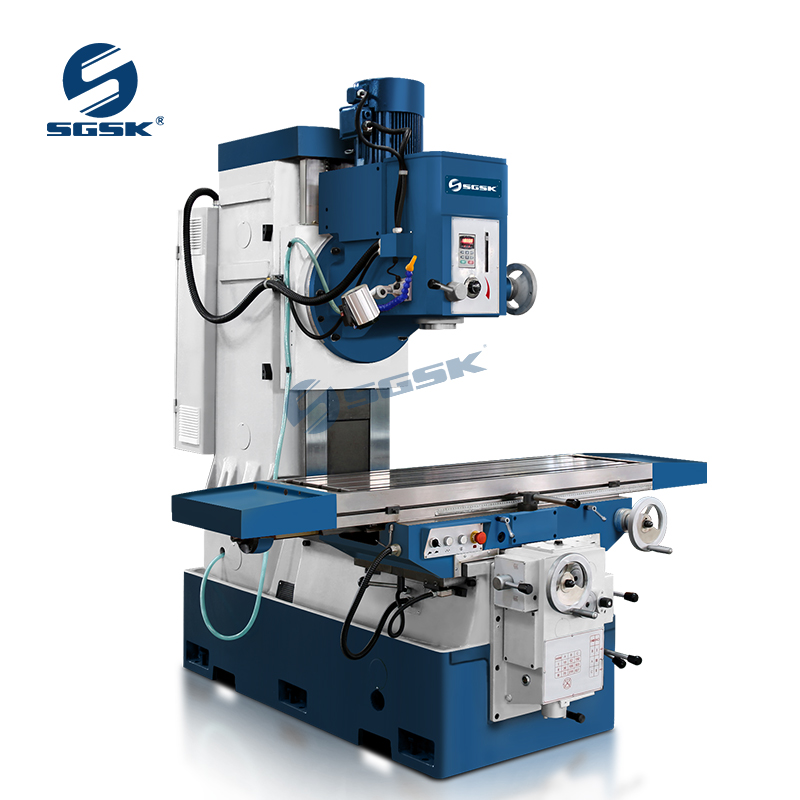

XA7140 Bed-type Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

Bed-type Milling Machine main performance characteristics：

Using MEEHANITE cast iron,

Using rectangular guide machine is Rigid good,

Work table and guide rail through the ultra audio spark quenching.

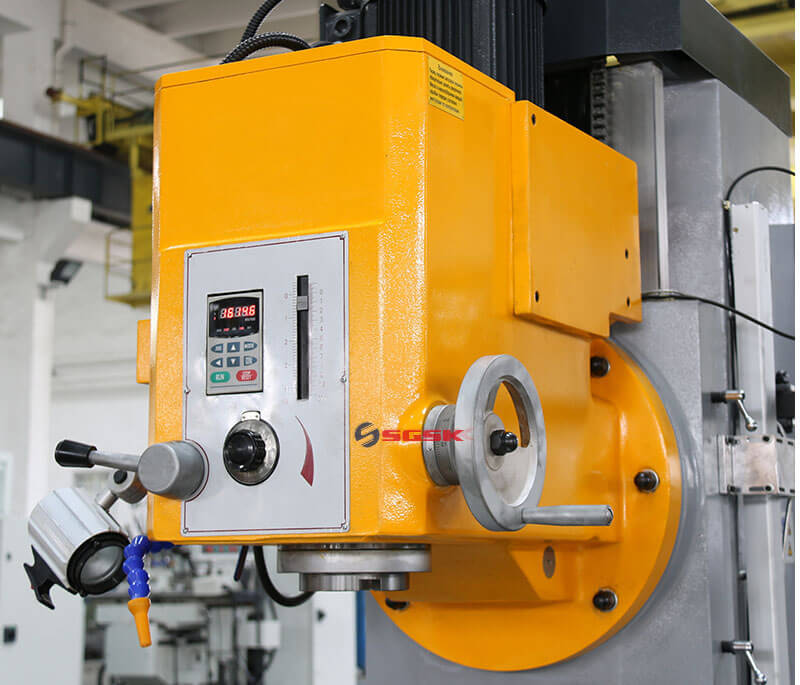

Milling head can be rotated 30 degrees,

Import frequency conversion and frequency conversion technology to make the spindle more convenient

Bed-type Milling Machine Application：

This machine is a kind of general metal cutting machine tool.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Bed-type Milling Machine main technical parameters:

Specifications	Units	XA7140
Table size	mm	1400x400
Table stroke	mm	800x400

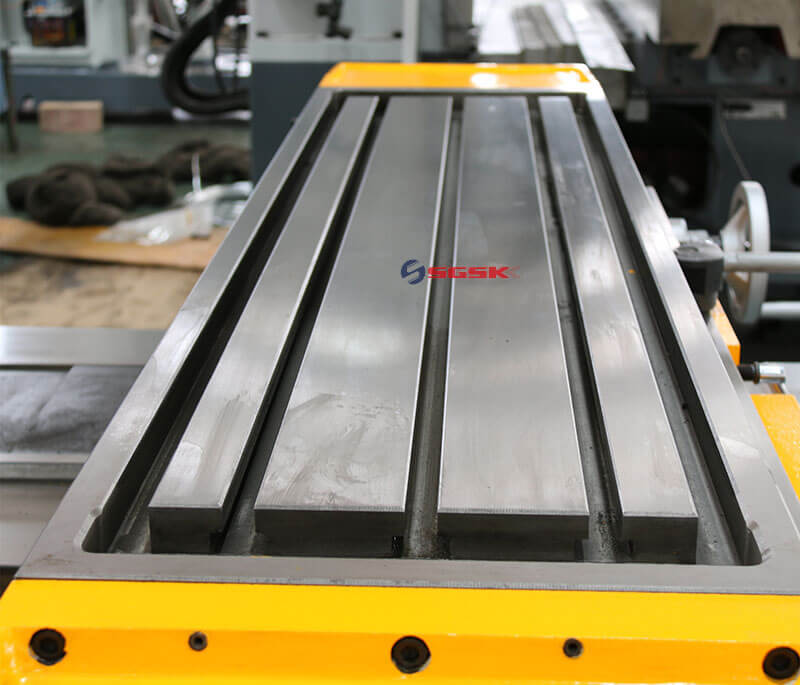

T-type slot numbers / width /space	mm	3-18-100
Max. load working table	kg	800
Distance from spindle axis to column guide way	mm	520
Distance from spindle nose to table surface	mm	150-650
Spindle taper		ISO50
Spindle quill travel	mm	105
Spindle speed range	rpm	18-1800
Spindle motor power	KW	7.5
Overall dimensions	mm	2290x1840x2080
Machine weight	Kg	3860
