Product Main Technical Parameters

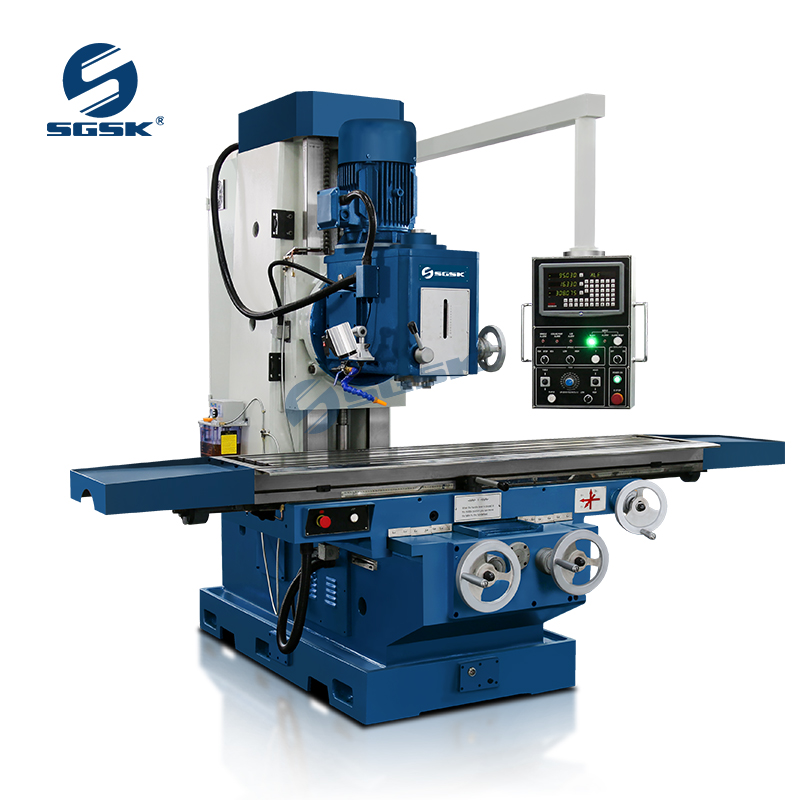

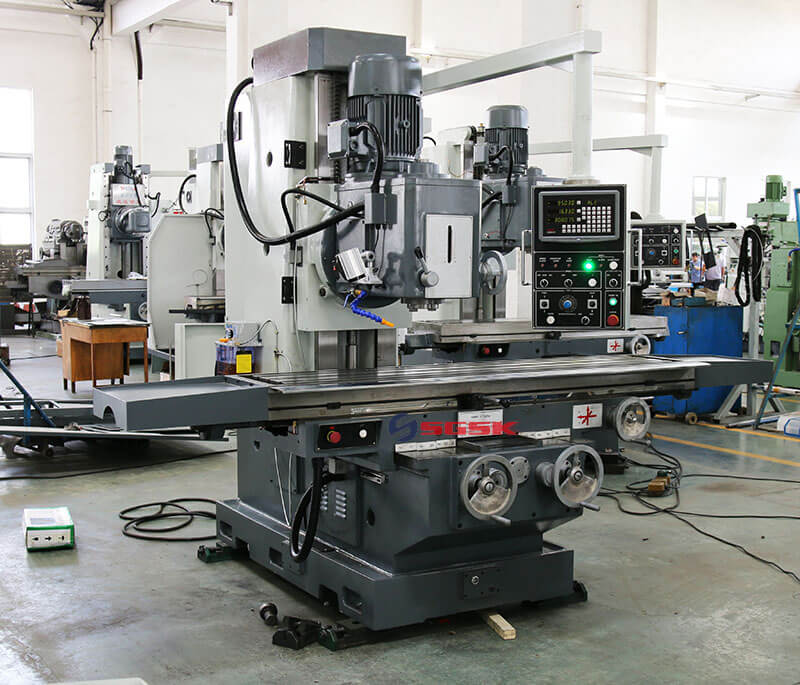

Bed-type Milling Machine main performance characteristics:
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,

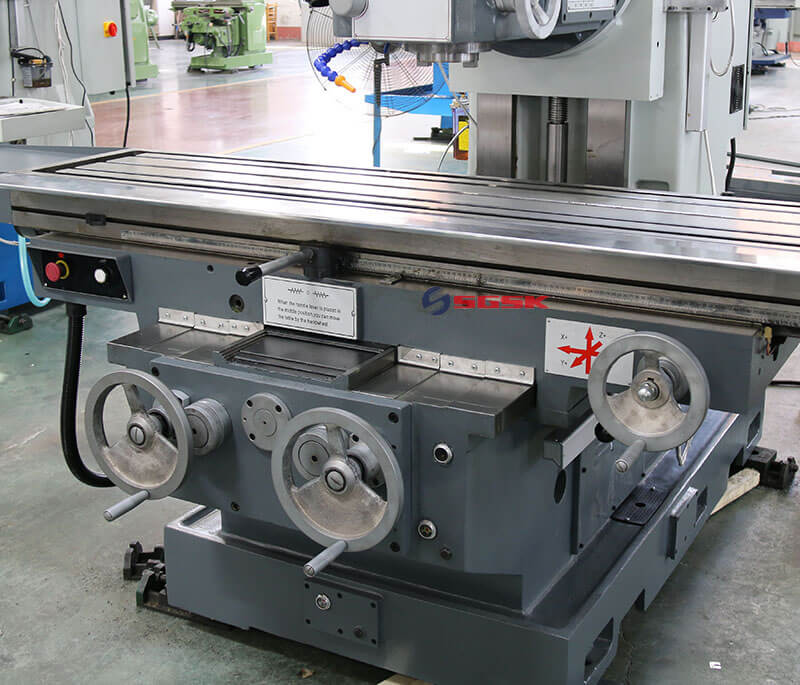

Work table and guide rail through the ultra audio spark quenching.

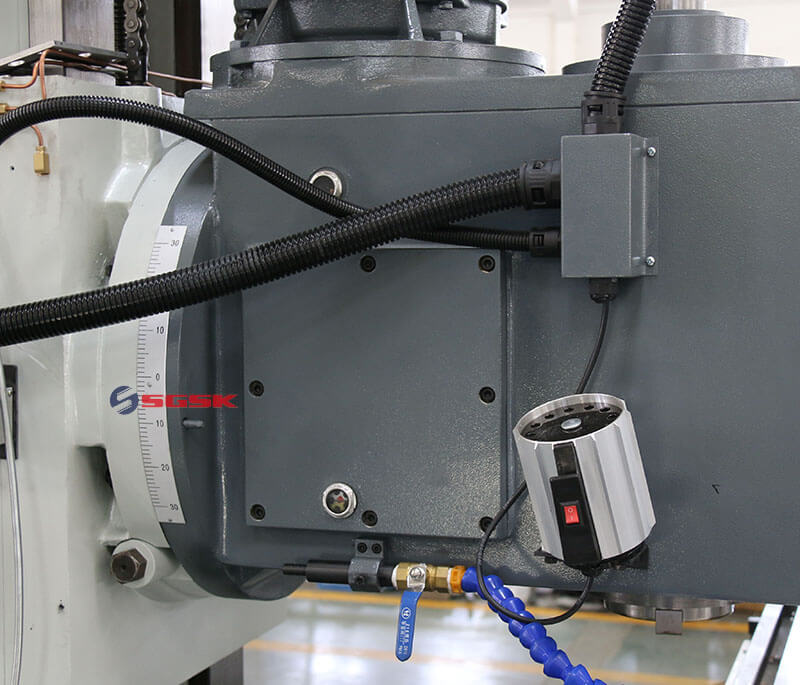

Milling head can be rotated 30 degrees,

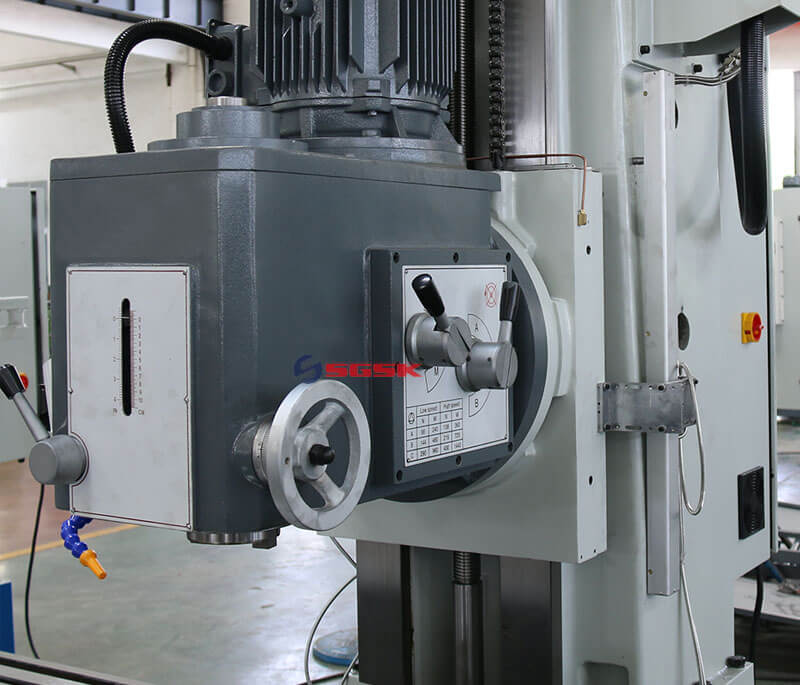

Hand piece gear transmission, 12 speed change, suitable for high rigidity of the strong cutting.
Bed-type Milling Machine Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Bed-type Milling Machine main technical Specifications:
Specifications | Units | XA7150 |
Table size | mm | 2000x400 |
Table stroke(X.Y) | mm | 1500x500 |
Vertical travel of headstock | mm | 100-650 |
T-type slot numbers / width /space | mm | 3-18-100 |
Max. load working table | KG | 2000 |
Milling head rotary motion | +/-30° | |
Feed speed | mm/min | 20-2000 |
Rapid feed speed (X/Y) | mm/min | 3100 |
Spindle speed range | rpm | 66-1440 |
Spindle speed step | steps | 12 |
Spindle taper | ISO50 | |
Distance from spindle axis to column guide way | mm | 600 |
Spindle motor power | KW | 7.5 |
Overall dimensions | mm | 3000x2285x2340 |
Machine weight | KG | 4500 |
