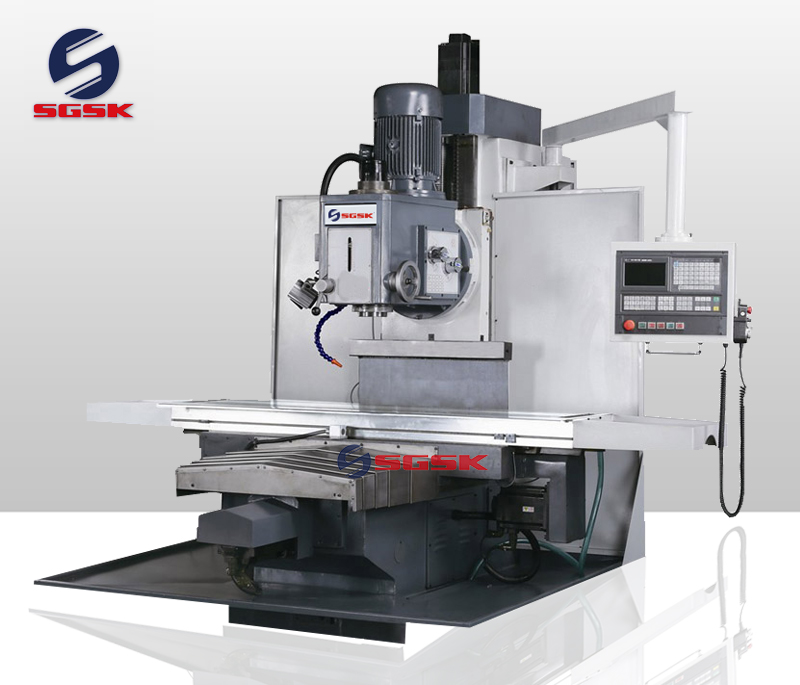

XKA7150 CNC Bed-type Milling Machine

Inquire Now Next Product

Product Main Technical Parameters

CNC Bed-type Milling Machine Main Performance Characteristics：

1.Using MEEHANITE cast iron,

2.Using rectangular guide machine is Rigid good,

3.Work table and guide rail through the ultra audio spark quenching.

4.Milling head can be rotated 30 degrees,

5.Head nose gear transmission, 12 speed change, suitable for high rigidity of the strong cutting.

CNC Bed-type Milling Machine Application：

This machine is a kind of general metal cutting machine tool.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

CNC Bed-type Milling Machine Main Technical Parameters:

Specifications	Units	XKA7150
Table size（X.Y）	mm	2000x400
Table stroke	mm	1500x550
T-type slot numbers / width /space	mm	3-18-100
Max. load working table	kg	2000
Distance from spindle axis to column guide way	mm	600
Distance from spindle nose to table surface	mm	150-700
Feed speed（X.Y）	mm/min	2.5-3000
Feed speed （Z）	mm/min	2.5-2500
Rapid feed speed (X.Y.Z)	mm/min	6000/6000/3000
Spindle taper		ISO50(7:24)
Spindle speed range	rpm	66-1440(12 steps)
Spindle motor power	KW	7.5
Feed motor power	KW	2.5
Positioning accuracy	mm	±0.04
Repeat positioning accuracy	mm	0.02
Overall dimensions（Lx W x H）	mm	3000x2285x2340
Machine weight	Kg	5300
