Product Main Technical Parameters

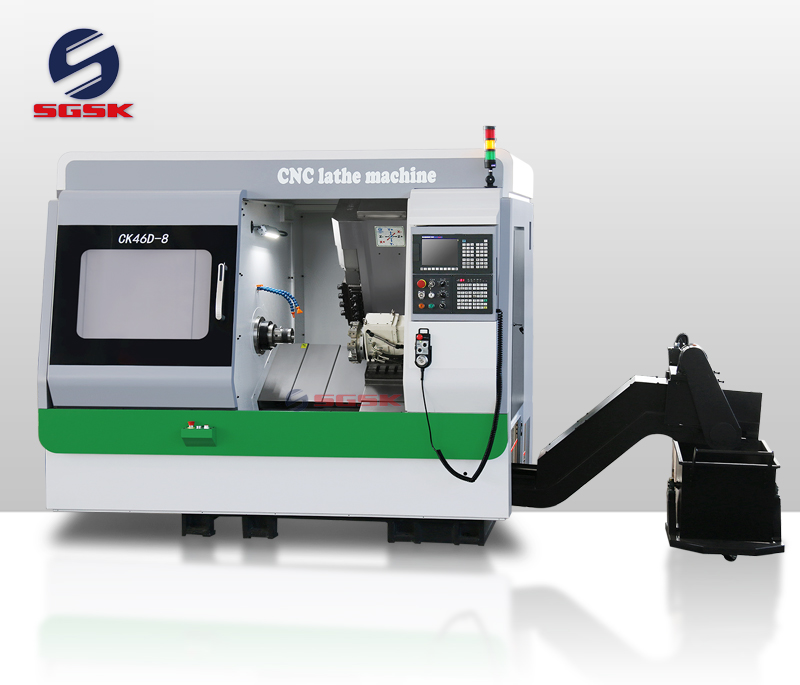

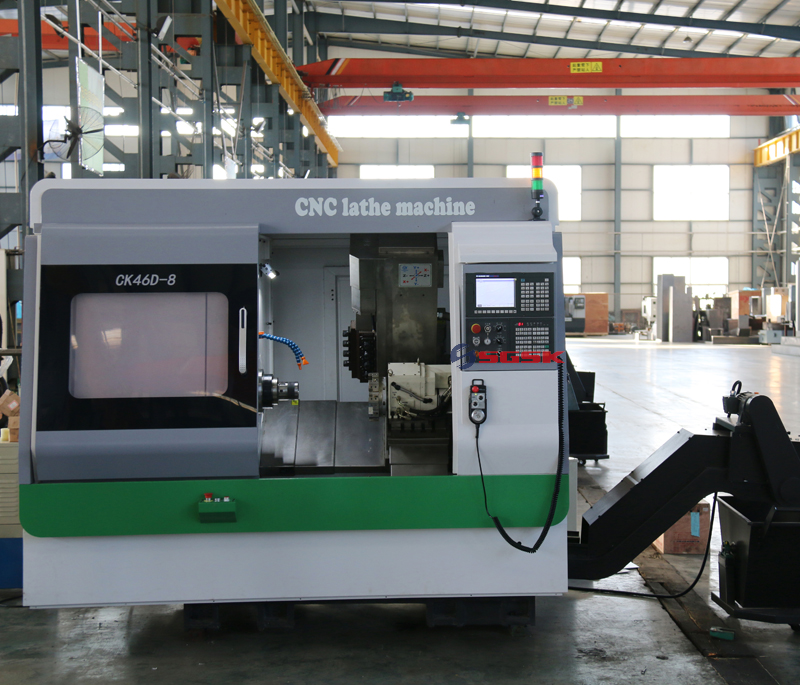

Slant Bed CNC Lathe Machine Features：
C axis
Y axis

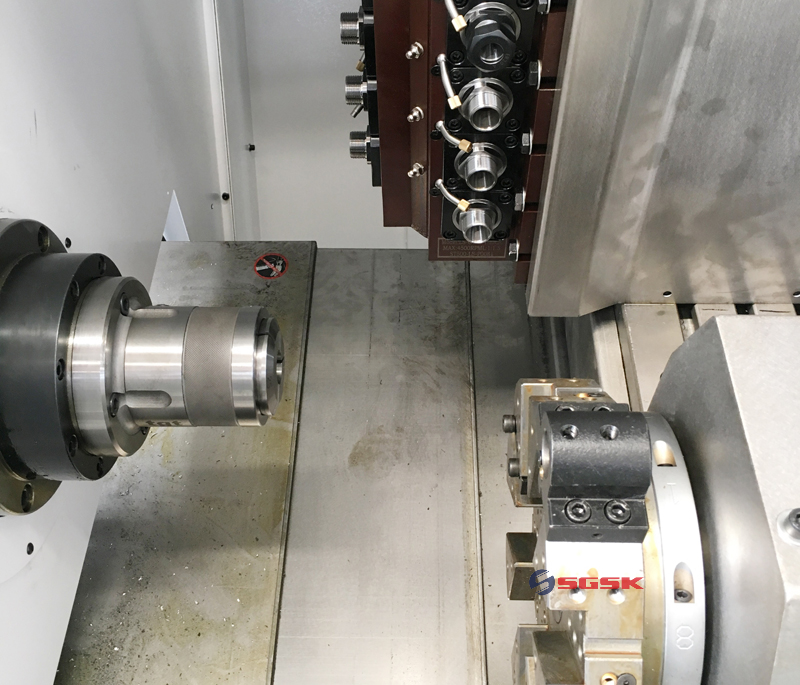

4+4 milling head
Slant Bed CNC Lathe Machine Main specification:
| SPECIFICATIONS | Units | CK46D-8 |
| Swing over bed | mm | 450 |
| Swing over cross slide | mm | 130 |
| Distance between centers | mm | 450 |
| Spindle bore | mm | 56 |
| Spindle nose type | - | A2-5 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 4500 |

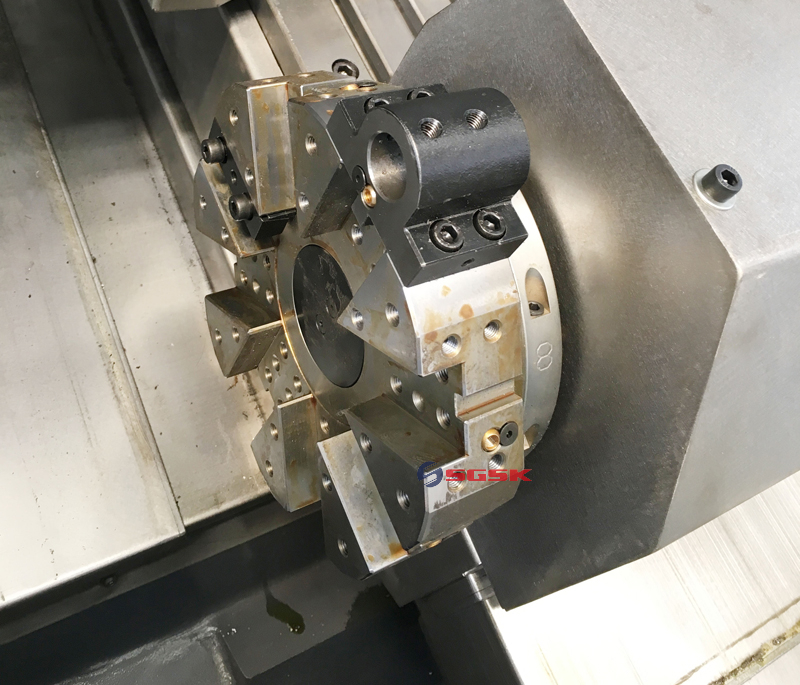

| Turret/tool post | - | Hydraulic turret, 4+4 milling head |
| Tool size | mm | 25 x 25 /ER25 |
| X axis travel | mm | 500 |
| Z axis travel | mm | 450 |
| Y axis travel | mm | 240 |
| X axis rapid traverse | mm/min | 24000 |
| Z axis rapid traverse | mm/min | 24000 |
| Y axis rapid traverse | mm/min | 15000 |

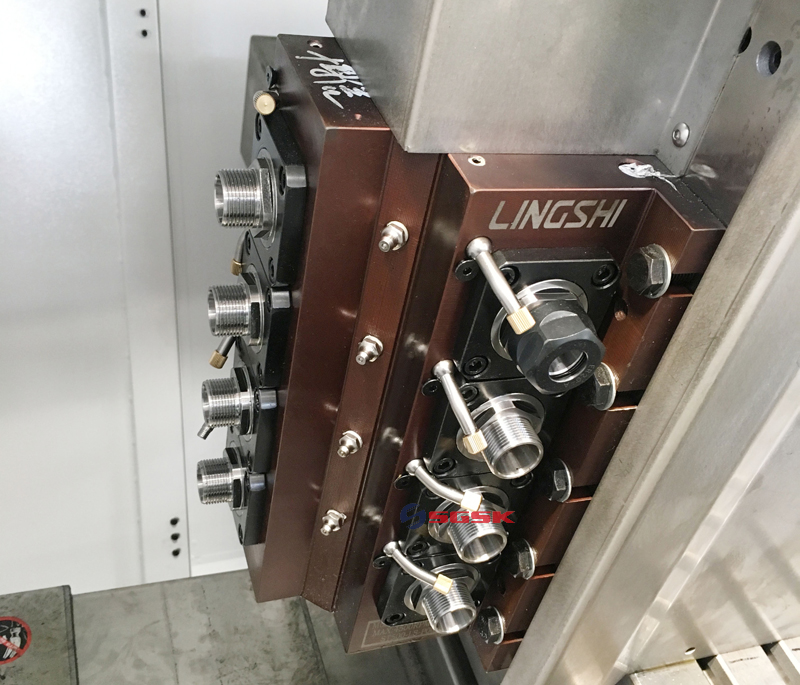

| Milling head type | - | Nose 4+ Side 4 |
| Milling head power | kw | 1.3 |
| Milling head speed | r/min | 3000 |
| Distance of each milling head | mm | 60 |
| X/Y/Z Positioning accuracy | mm | 0.003mm |
| X/Y/Zrepositioning accuracy | mm | 0.006mm |
| Spindle (C Axis) dividing positioning accuracy | ” | 0.02” |
| Spindle (C Axis) dividing repositioning accuracy | ” | 0.006” |
| Main spindle (C Axis) motor | kw | C Axis 7.5 |
| Guide rail type | - | Linear rail |
| Machine weight | kg | 3000 |
| Overall dimension | mm | 2500x1750x1800 |
