Product Main Technical Parameters

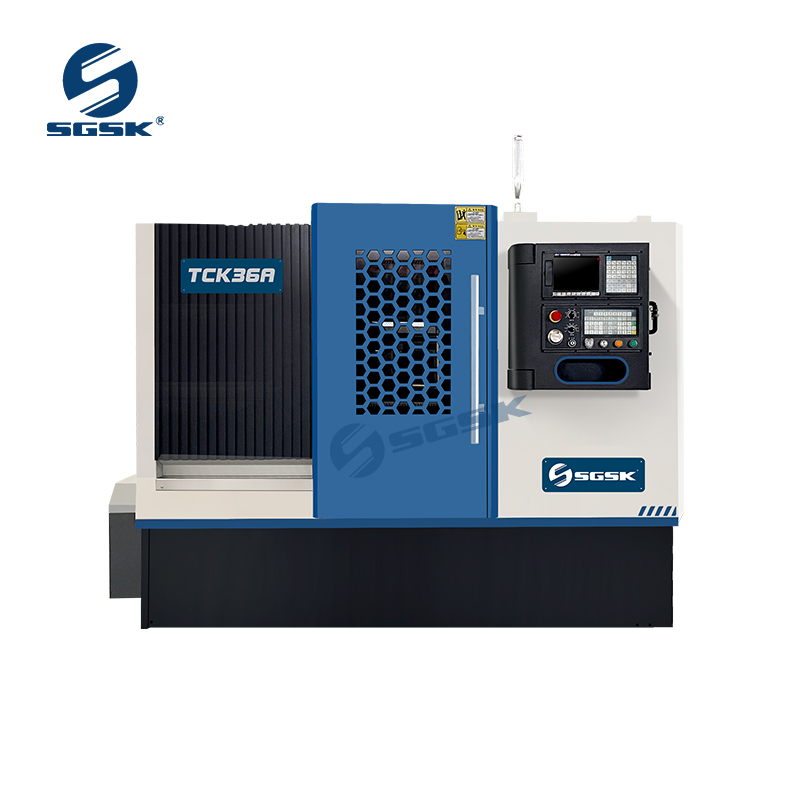

| Units | TCK36A | TCK46A | |
| Swing over bed | mm | 360 | 460 |
| Swing over cross slide | mm | 140 | 170 |
| Distance between centers | mm | 300 | 350 |
| Spindle bore | mm | 56 | 56 |
| Bar capacity | mm | 44 | 44 |
| Spindle nose type | - | A2-5 | A2-5 |
| Spindle speed steps | - | 无级Stepless | 无级Stepless |
| Spindle speed range | rpm | 4000 | 3500 |
| Turret/tool post | - | 8工位液压刀塔 Hydraulic turret 8position | |
| Tool size | mm | 20*20 | 25*25 |
| X axis travel | mm | 185 | 240 |
| Z axis travel | mm | 350 | 400 |
| X axis rapid traverse | mm/min | 24000 | 24000 |
| Z axis rapid traverse | mm/min | 24000 | 24000 |
| Main motor power | kw | 5.5 | 7.5 |
| Tailstock quill diameter | mm | 65 | 70 |
| Tailstock quill taper | - | MT4 | MT5 |
| Tailstock quill travel | mm | 60 | 80 |

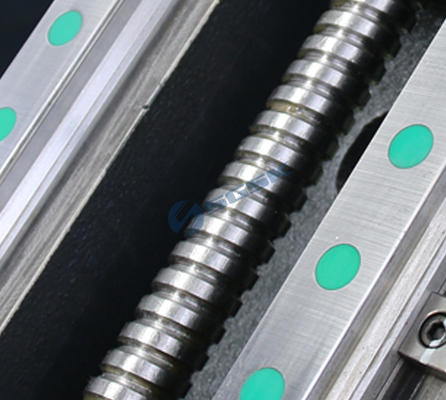

| Guide rail type | - | 斜床身线轨 Slant bed linear rail | |
| Machine weight | kg | 2400 | 2600 |
| Overall dimension(L*W*H) | mm | 2200*1600*1850 | 2500*1950*1950 |
