Product Main Technical Parameters

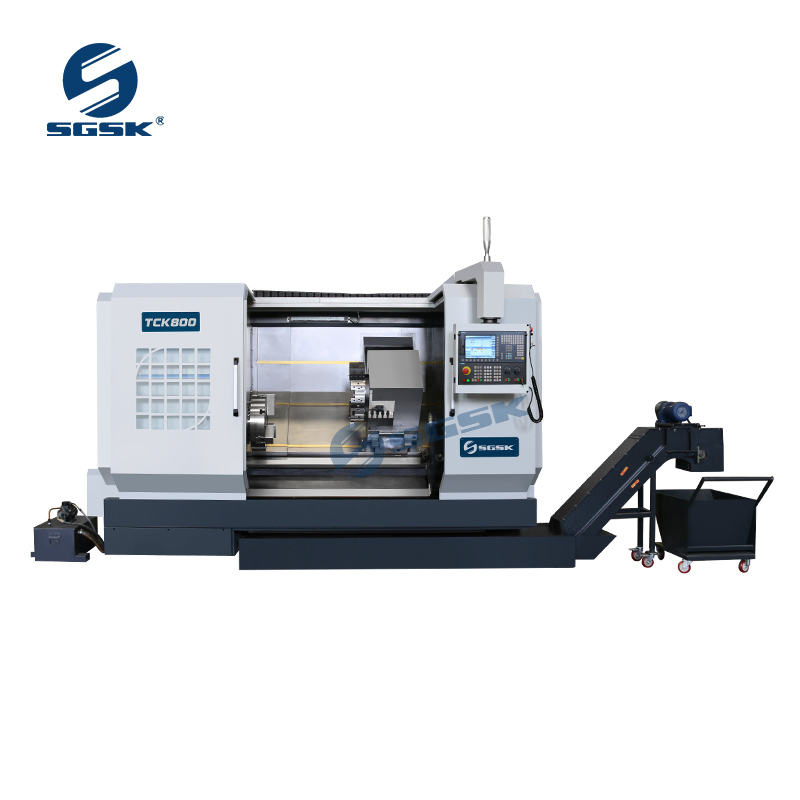

Slant Bed CNC Lathe Machine Introduction:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
Slant Bed CNC Lathe Machine Features:
◆One-piece bed adopts high strength iron to ensure rigidity and precision
◆Slant bed design and linear guideways enqure process speed and accuracy
◆Carriage and guide-way contact surface use Turcite B to maintain accuracy
Slant Bed CNC Lathe Machine Specification:
SPECIFICATIONS | Units | TCK500 |
Swing over bed | mm | 500 |
Swing over cross slide | mm | 380 |
Distance between centers | mm | 500/1000/1500/2000/3000 |
Guideway width | ° | 45 |
Spindle bore | mm | 82 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 35-3000 |
Chuck | in | 10in Hydraulic chuck |
Turret/tool post | - | Hydraulic turret 8position |
Tool shank size | mm | 25 x 25 |
Boring tool holder size | mm | φ40 |
X axis travel | mm | 300 |
Z axis travel | mm | 500/1000/1500/ 2000/3000 |
X axis rapid traverse | mm/min | 10000 Linear guideway |
Z axis rapid traverse | mm/min | 15000 Linear guideway |
Tailstock quill diameter | mm | φ75 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 150 |
Main spindle motor | kw | 15 |
Coolant pump motor | kw | 0.37 |
Weight for 500 | kg | 6000 |
Weight for 1000 | kg | 6500 |
Weight for 1500 | kg | 7000 |
Weight for 2000 | kg | 7500 |
Weight for 3000 | kg | 8500 |
Dimension for 500 | mm | 4350x1800x1800 |
Dimension for 1000 | mm | 4850x1800x1800 |
Dimension for 1500 | mm | 5350x1800x1800 |
Dimension for 2000 | mm | 5850x1800x1800 |
Dimension for 3000 | mm | 6850x1800x1800 |
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
GSK980TDI controller, hydraulic turret, hydraulic chuck, hydraulic tailstock | Fanuc or other brand CNC controller, power turret, tool setting arm |
