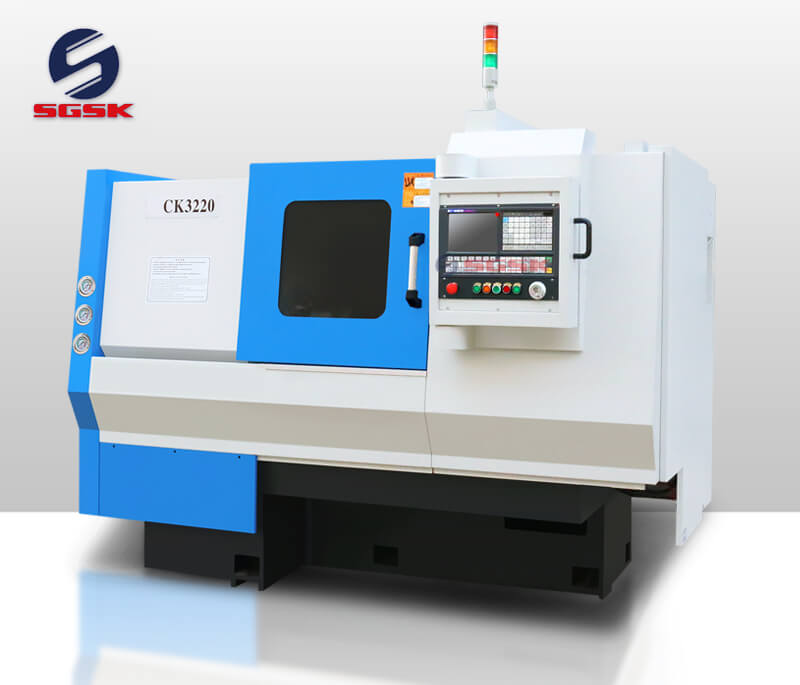

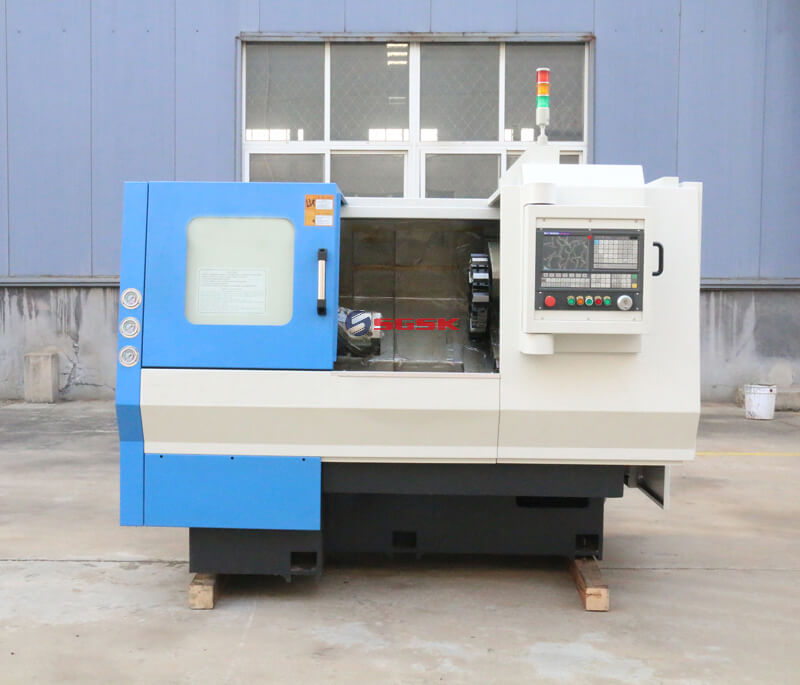

TCK520 Slant Bed CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Slant Bed CNC Lathe Machine Application :

The machine are the slant bed cnc machine tools of higher speed ,higher precision and higher reliability.The spindle is in unit structure ,servo main motor for high speed.The hydraulic chuck is employed for clamping the workpiece ,which makes the clamping by 5 angular ,3 of which are placed in the front and 2 in the back.It makes the higher speed and higher rigidity .Machine adopts 30 degree oblique slide saddle and liner guide rail ,stronger in rigidity,faster in feeding speed and easier in chip removal .The X and Z axis screws are in the middle of the carriage ,well-distributed in force,smooth in movement ,higher in speed .The 8-tool hydraulic turret changers tools quickly ,stably ,precisely and chooses tool from the nearest .It is easy to operate hydraulic tailstock.Full shield machine house does not leak oil and water ,gree and beautiful .

Slant Bed CNC Lathe Machine Main Performance Characteristics：

Taiwan higher accuracy linear guide ways

Taiwan ball screw

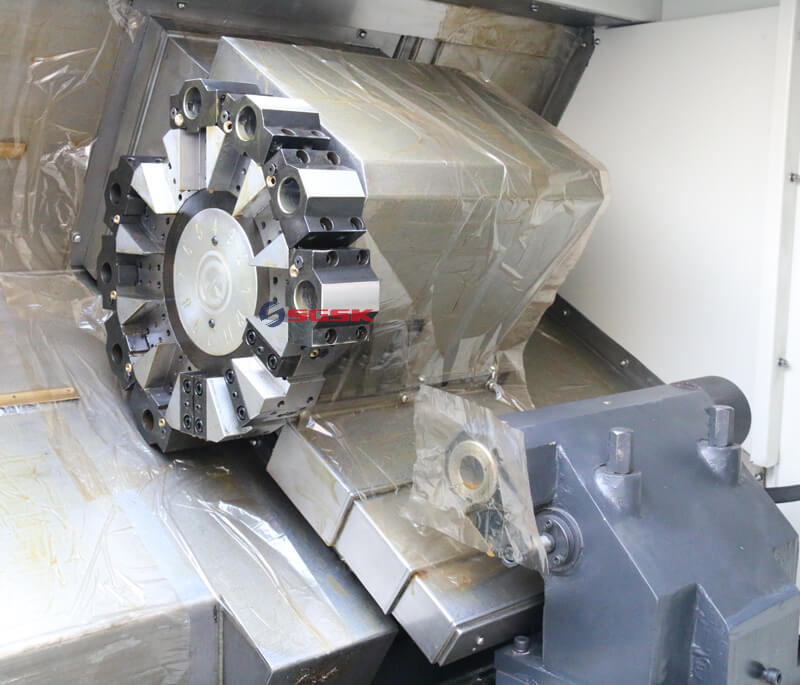

Hydraulic magazine

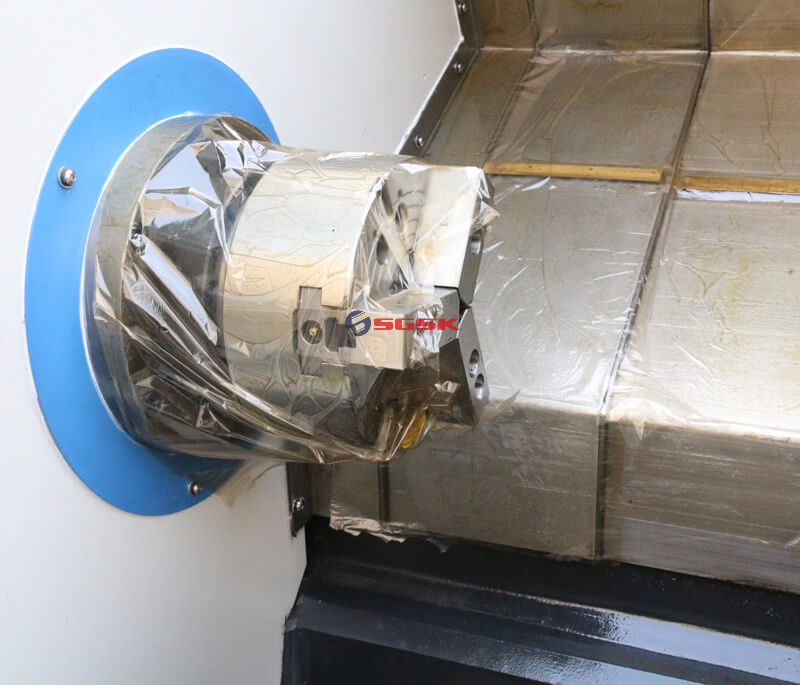

Taiwan hydraulic chuck

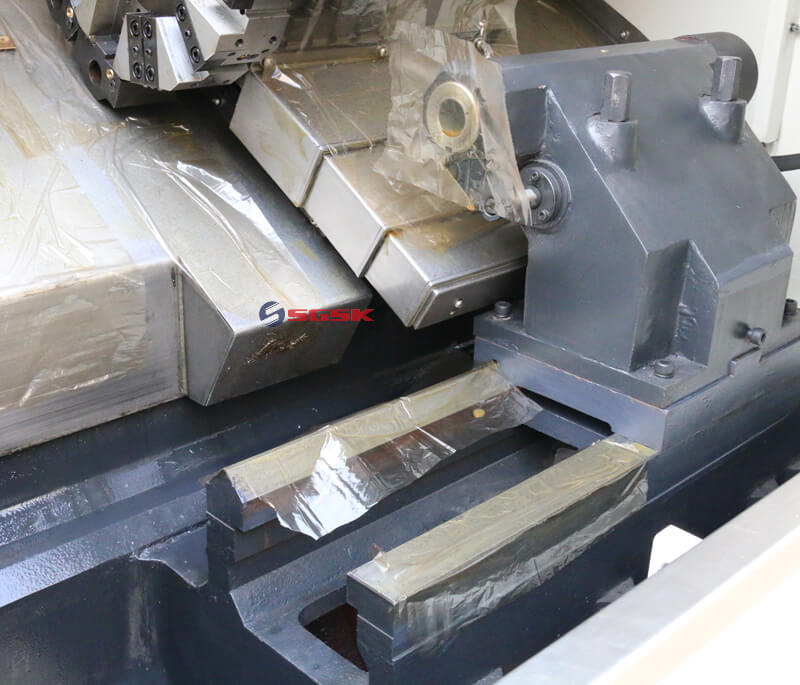

Hydraulic tailstock

Taiwan hollowed rotary cylinder

Slant Bed CNC Lathe Machine Main Specifications：

Specification	Unit	TCK520
Max.swing over bed	mm	520
Max.swing over cross slide	mm	250
Max.processing length	mm	500
X/Z axis max.travel	mm	220/500
Spindle nose		A2-8
Spindle bore	mm	80
Bar capacity	mm	65
Max.spindle speed	rpm	2500
Chuck	in	10
Spindle motor power	kw	7.5
X/Z axis repeatability	mm	+/-0.003
X/Z axis feed motor torque	N.M	7.5/7.5
X/Z rapid traverse	M/min	10
Tailstock travel	mm	350
Quill travel	mm	100
Tailstock taper		MT5
Tool post type	mm	8 station hydraulic turret
Tool post size	mm	25x25
Guide form		30° degree
Guide rail movement way		Linear guide rail
Total power capacity	KVA	15
Machine dimensions(LWH)	mm	245016001700
Weight	kg	4200
