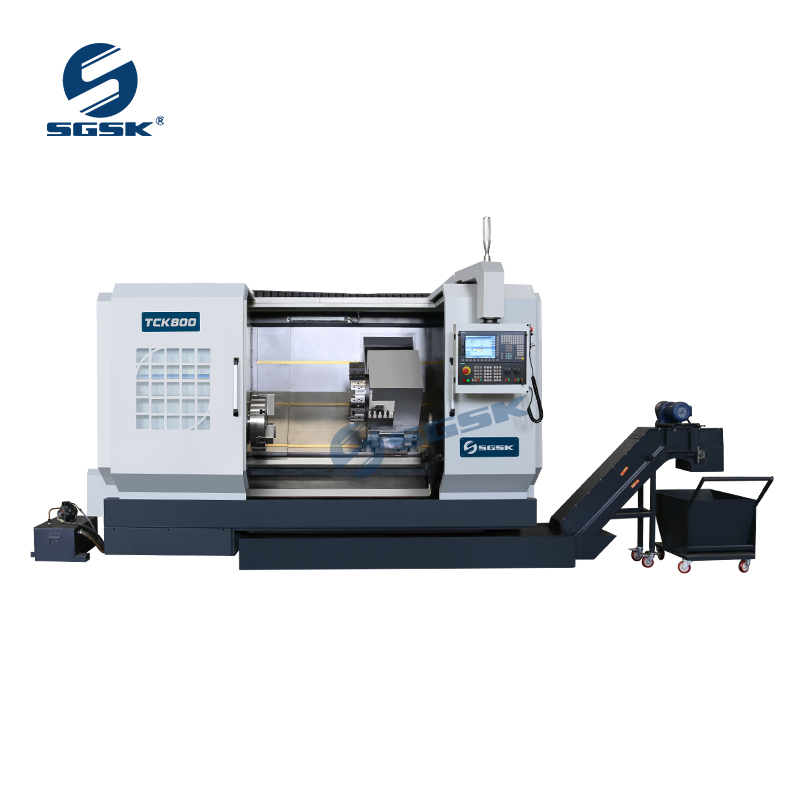

ODM. TCK560 Slant Bed CNC Lathe Machine

Home > Products > Slant Bed CNC Lathe Machine

Product Model：

Inquire Now Next Product

Product Main Technical Parameters

	Units	TCK560Y	TCK630Y	TCK800Y	TCK1000Y	TCK1250Y
Swing over bed	mm	560	630	800	1000	1250
Max. Turning diameter	mm	420	600	720	900	1200
Swing over cross slide	mm	380	500	630	800	1000
Distance between centers	mm	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000	1500/3000
Slant bed layout angle	°	45	45	45	45	60
Spindle nose type	-	A2-8	A2-8	A2-11	A2-15	A2-15
Spindle bore taper	-	公制Metric100	公制Metric100	公制Metric120	公制Metric120	公制Metric140
Spindle bore	mm	80	90	90	100	120
Spindle speed steps	-	液压2档/HYD. 2 steps+无极变速/Stepless
Spindle speed range	rpm	50-1500	50-1200	50-1000	50-800	50-630
Hydraulic chuck	in	12	15	18	24	32
Main spindle motor	KW	15	22	30	37	37
Turret/tool post	-	12工位液压刀塔/Hydraulic turret 12 position
Tool size	mm	25*25	32*32	32*32	32*32	32*32
Boring tool holder size	mm	φ40	φ50	φ60	φ60/φ80	φ80
X axis travel	mm	225	335	375	475	625
Z axis travel	mm					1500/3000
	Nm	/12/22	22/22	22/30	30/30	30/30
X axis rapid traverse	mm/min	12000硬轨/Hard guideway	12000硬轨/Hard guideway	12000硬轨/Hard guideway	10000硬轨/Hard guideway	10000硬轨/Hard guideway
Z axis rapid traverse	mm/min	12000/硬轨/Hard guideway	12000/硬轨/Hard guideway	12000/硬轨/Hard guideway	10000/硬轨/Hard guideway	10000/硬轨/Hard guideway
X/Z axis	mm	0.001	0.001	0.001	0.001	0.001
Tailstock quill diameter	mm	φ110/120	φ 120/170	φ120/170	φ120/170	φ130
Tailstock quill taper		MT5	MT6	MT6	MT6	MT6
Tailstock quill travel	mm	100	120	120	120	150
Coolant pump motor	KW	0.37	0.37	0.37	0.37	0.37
		IT6	IT6	IT6	IT6	IT6
	μm	0.8	0.8	0.8	0.8	0.8
Overall dimension(W*H)	mm	2050*2300	2050*2300	2570*2400	2570*2400	2570*2400
Overall dimension(L)	mm	5600/6200/6600/7600	5600/6200/6600/7600	6200/6700/7200/8200	6200/6700/7200/8200	6200/6700/7200/8200
Machine weight	T	7.0/8.0/10.5/15	8.0/12.0/16.0/20.0	8.5/12.5/16.5/20.5	10.0/15.0/18.0/22.0	18.0/35.0
