Product Main Technical Parameters

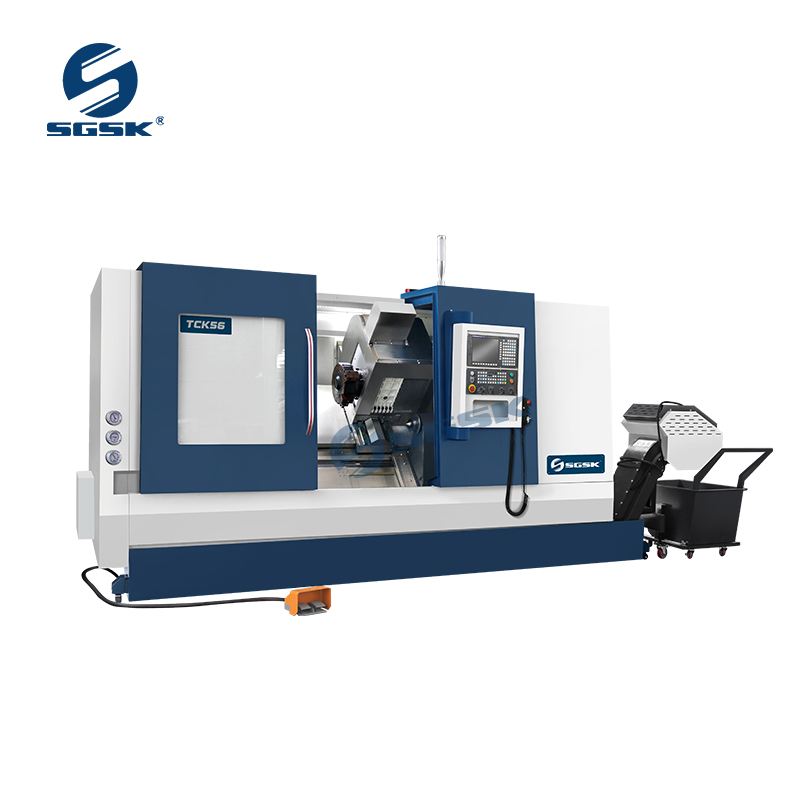

Slant Bed CNC Lathe Machine Main Features：
Higher accuracy Taiwan linear guideways
Higher speed spindle unit, optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Slant Bed CNC Lathe Machine Main Technical Specification：
| SPECIFICATIONS | Units | TCK56A |
| Swing over bed | mm | 560 |
| Swing over cross slide | mm | 350 |
| Distance between centers | mm | 500 |
| Spindle bore | mm | 65 |
| Bar capacity | mm | 45 |
| Spindle nose type | - | A2-6 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3500 |
| Turret/tool post | - | 8 Hydraulic turret |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 200 |
| Z axis travel | mm | 560 |
| X axis rapid traverse | mm/min | 18000 |
| Z axis rapid traverse | mm/min | 18000 |
| Main spindle motor | kw | 11 |
| Tailstock quill diameter | mm | - |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | - |
| Tailstock travel | mm | 450 |
| Guide rail type | - | Slant bed linear rail |
| Machine weight | kg | 4000 |
| Overall dimension | mm | 2800x1900x1900 |
| Standard configuration | Optional configuration |
Spindle units (3500 rpm) Hydraulic chuck Servo main motor Taiwan linear Railway Ball screw 8 Hydraulic turret | 5000rpm Taiwan spindle units Taiwan ball screw Chip conveyor 12 position Hydraulic turret |
