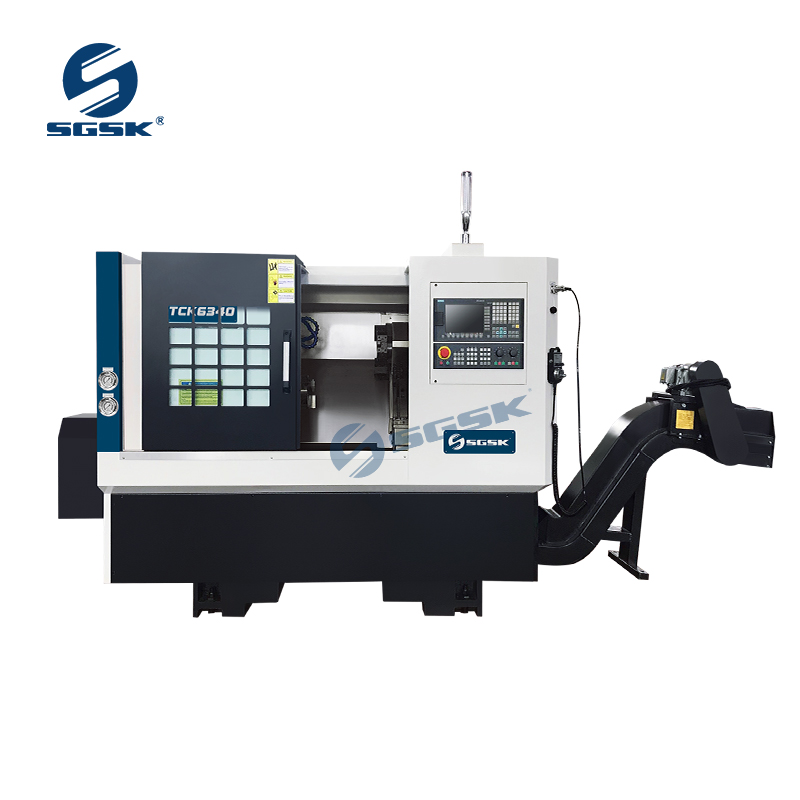

TCK6336S Slant Bed CNC Lathe Machine

Inquire Now Next Product

Product Main Technical Parameters

Slant Bed CNC Lathe Machine Main Features and Uses：
45 degree slanting bed high precision Taiwan rail line chip quantity and convenient, right row of chips and chip at the back of the type can choose a spindle unit for heavy cutting and high speed

The machine used in automobile, motorcycle, electronics, aerospace, military, oil and other industries, and the conical surface of the rotating parts, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, high precision main shaft unit, using taiwan rail line, to ensure high rigidity spindle center close to a human operator, loading and unloading of workpiece is more convenient.

Slant Bed CNC Lathe Machine Main Technical Specifications：

Specification	Units	TCK6336S
Max.swing over bed	mm	390
Max.swing over cross slide	mm	130
Max.swing over carriage	mm	390
Max.turning length	mm	400(Equipped with a knife)/300（Tower with a knife）
Spindle speed	rpm	4000
Spindle speed step		Variable
Spindle drive ratio		1:1.17
Spindle nose form (optional chuck)		A2-5(6”)
Spindle bore	mm	48
Spindle tube diameter	mm	40
Spindle motor power	kw	3.7 Servo
Positioning accuracy	mm	±0.005/100
Repositioning accuracy	mm	±0.003
X Travel	mm	400
Z Travel	mm	500
Fast feed speed	m/min	20
Cutting feed speed	mm/min	1-15000
Knife tower working digit		8
The tool body size	mm	20*20
Boring bar diameter	mm	32
Tailstock		No
The bed form and inclination		45°
Total power supply capacity	KVA	250013401710
Machine dimensions(LWH)	mm	9
