Product Main Technical Parameters
Slant Bed CNC Lathe Machine Features:
45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Screw pre-stretching structure
Gang type tool post
Slant Bed CNC Lathe Machine Main Specification:
| SPECIFICATIONS | Units | TCK6350 |
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 220 |
| Distance between centers | mm | 410 |
| Spindle bore | mm | 66 |
| Spindle nose type | - | A2-6 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3000 |
| Turret/tool post | - | Gang type |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 500 |
| Z axis travel | mm | 410 |
| X axis rapid traverse | mm/min | 18000 |
| Z axis rapid traverse | mm/min | 18000 |
| Main spindle motor | kw | 7.5 |
| Guide rail type | - | Linear rail |
| Machine weight | kg | 2900 |
| Overall dimension | mm | 2500x1600x1890 |
| Standard configuration | Optional configuration |

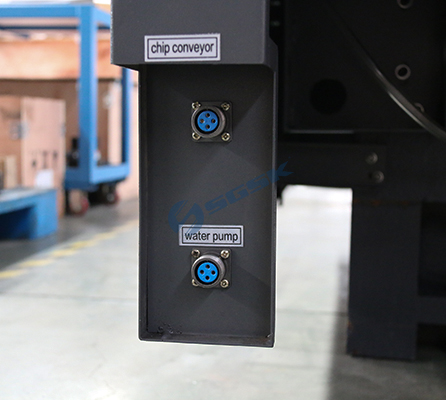

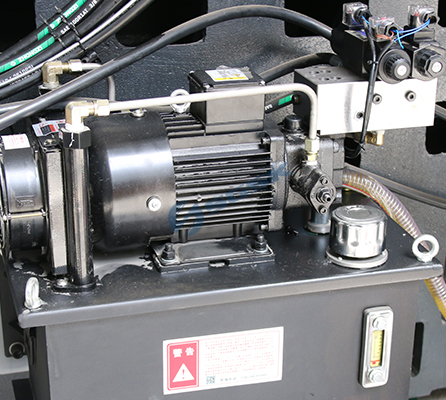

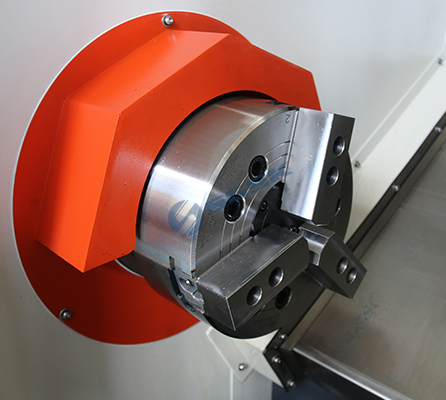

Servo main motor 140mm spindle units (3500 rpm) Taiwan linear Railway Ball screw Gang type Hydraulic collet | 5000 rpm Taiwan spindle units Taiwan ball screw 6/8 station Electric turret 8/12 station Hydraulic turret Hydraulic chuck Chip conveyor |
