Product Model:

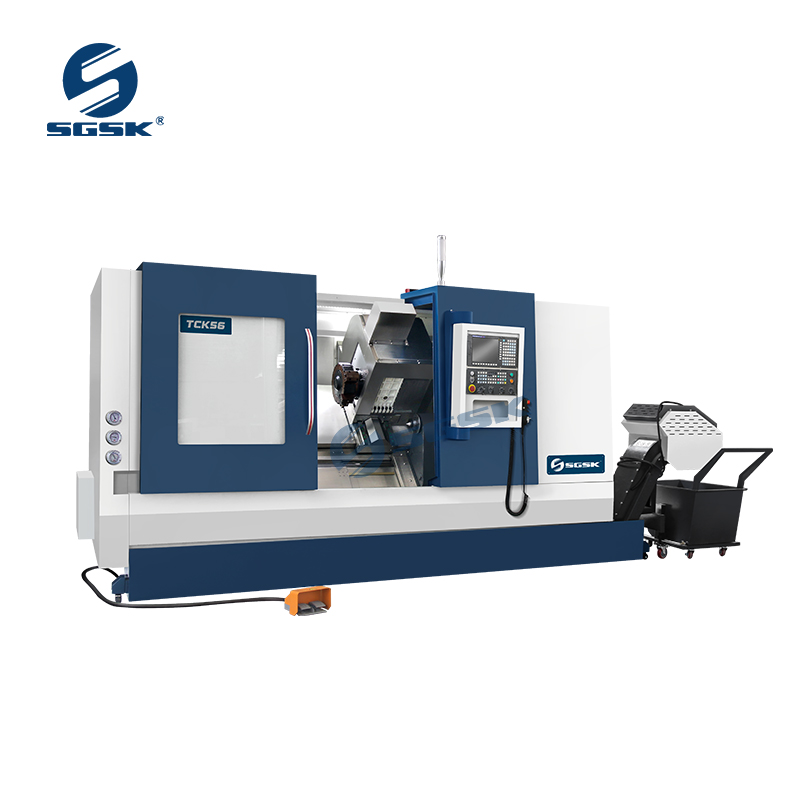

TCK66A Slant Bed CNC Lathe Machine

Product Main Technical Parameters

Slant Bed CNC Lathe Machine Main Features:

Higher accuracy Taiwan linear guideways

Higher speed spindle unit, optional homemade spindle

Higher rigidity cast iron

Integrated automatic lubrication

One-piece casting slant bed cnc lathe



Slant Bed CNC Lathe Machine Main Technical Specification:

SPECIFICATIONSUnitsTCK66A
Swing over bedmm660
Swing over cross slidemm400
Distance between centersmm600
Spindle boremm85
Bar capacitymm75
Spindle nose type-A2-8
Spindle speed steps-Stepless
Spindle speed rangerpm3000
Turret/tool post-8 Hydraulic turret
Tool sizemm25 x 25
X axis travelmm280
Z axis travelmm600
X axis rapid traversemm/min18000
Z axis rapid traversemm/min18000
Main spindle motorkw11
Tailstock quill diametermm-
Tailstock quill taper-MT5
Tailstock quill travelmm-
Tailstock travelmm450
Guide rail type-Slant bed linear rail
Machine weightkg4500
Overall dimensionmm3500x2000x2100


Standard configurationOptional configuration

Spindle units (3500 rpm)

Hydraulic chuck

Servo main motor

Taiwan linear Railway

Ball screw 8

Hydraulic turret

5000rpm Taiwan spindle units

Taiwan ball screw

Chip conveyor

12 position Hydraulic turret
